Federal Signal MicroStat® MSL5-024 MSL Status Indicator Stacklight, 24 VAC/VDC, Wedge #661 Lamp, 5 Lights, Amber/Blue/Clear/Green/Red, 7000 hr
Custom_Product_Images_Illustration
Federal Signal MicroStat® MSL5-024 MSL Status Indicator Stacklight, 24 VAC/VDC, Wedge #661 Lamp, 5 Lights, Amber/Blue/Clear/Green/Red, 7000 hr
SKU968779
MFGR #MSL5-024
$/ea

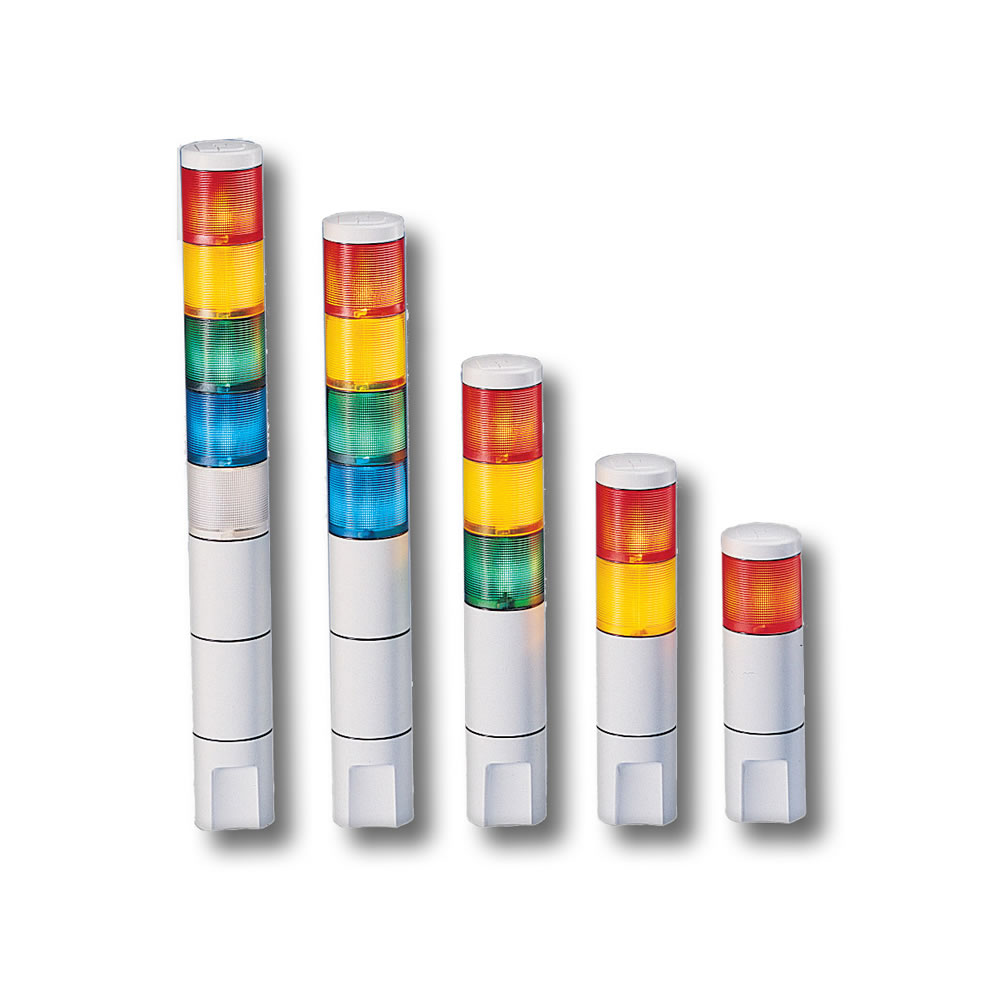

The Federal Signal MicroStat® is a compact, Type 4X status indicator, Type 1 with optional sounder. Ideal for OEM applications, the MicroStat comes pre-assembled as 1-, 2-, 3-, 4-, or 5-high light units. The user selects combinations from five colors; Amber, Blue, Clear, Green and Red. O-rings between each segment provide a water-tight and dust-tight seal. The MSL1, MSL2, MSL3 are available in 24VAC/DC, 120VAC and 240VAC; the MSL4 and MSL5 are available in 24VAC/DC and 120VAC. The base of each light can be surface or pipe mounted (3/4 in NPT).
The Federal Signal MicroStat® is a compact, Type 4X status indicator, Type 1 with optional sounder. Ideal for OEM applications, the MicroStat comes pre-assembled as 1-, 2-, 3-, 4-, or 5-high light units. The user selects combinations from five colors; Amber, Blue, Clear, Green and Red. O-rings between each segment provide a water-tight and dust-tight seal. The MSL1, MSL2, MSL3 are available in 24VAC/DC, 120VAC and 240VAC; the MSL4 and MSL5 are available in 24VAC/DC and 120VAC. The base of each light can be surface or pipe mounted (3/4 in NPT).
Amperage Rating 1 A Catalog Number MSL5-024 Country of Origin US Gross Weight Per Pack 1.6500 lb Lens Color Amber/Blue/Clear/Green/Red Lens Material Polycarbonate Material Polycarbonate Mounting Type Surface NEMA Rating NEMA 4X Series MSL Standards ARRA CompliantBuy American Act CompliantUL ListedcUL Listed Temperature Rating 32 to 104 °F Type Status Indicator UNSPSC 32151503 UPC 11 78297920194 UPC 12 782979201946 Stock Status NONSTOCK Brand Federal Signal Manufacturer Federal Signal Color Amber/Blue/Clear/Green/Red Lamp Type Wedge Number of Lights 5 Voltage Rating 24 VAC//VDC Application Indoor ARRA Compliant C Average Life 7000 hr Buy American Compliant C Currency USD Enclosure Type 4X EU RoHS Indicator N Gross Weight per Pack Metric 0.75 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8531800050 Height 4.50 in Height [Metric] 11.4300 cm Length 20.00 in Length [Metric] 50.8000 cm Mounting 3/4-Inch NPT Pipe/Surface Operating Voltage 24VAC/DC Standard UL Listed/cUL Listed Sub Brand MicroStat Width 4.50 in Width [Metric] 11.4300 cm
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Amperage Rating | 1 A |
| Catalog Number | MSL5-024 |
| Country of Origin | US |
| Gross Weight Per Pack | 1.6500 lb |
| Lens Color | Amber/Blue/Clear/Green/Red |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Surface |
| NEMA Rating | NEMA 4X |
| Series | MSL |
| Standards | ARRA CompliantBuy American Act CompliantUL ListedcUL Listed |
| Temperature Rating | 32 to 104 °F |
| Type | Status Indicator |
| UNSPSC | 32151503 |
| UPC 11 | 78297920194 |
| UPC 12 | 782979201946 |
| Stock Status | NONSTOCK |
| Brand | Federal Signal |
| Manufacturer | Federal Signal |
| Color | Amber/Blue/Clear/Green/Red |
| Lamp Type | Wedge |
| Number of Lights | 5 |
| Voltage Rating | 24 VAC//VDC |
| Application | Indoor |
| ARRA Compliant | C |
| Average Life | 7000 hr |
| Buy American Compliant | C |
| Currency | USD |
| Enclosure | Type 4X |
| EU RoHS Indicator | N |
| Gross Weight per Pack Metric | 0.75 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8531800050 |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Length | 20.00 in |
| Length [Metric] | 50.8000 cm |
| Mounting | 3/4-Inch NPT Pipe/Surface |
| Operating Voltage | 24VAC/DC |
| Standard | UL Listed/cUL Listed |
| Sub Brand | MicroStat |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
