Federal Signal 55-120-1 55 Series Electric Resonating Horn, 120 VAC, 0.75 A, 115/105 dB, Gray
Custom_Product_Images_Illustration
Federal Signal 55-120-1 55 Series Electric Resonating Horn, 120 VAC, 0.75 A, 115/105 dB, Gray
SKU21744
MFGR #55-120-1
Your Cost: $1,125.57/ea

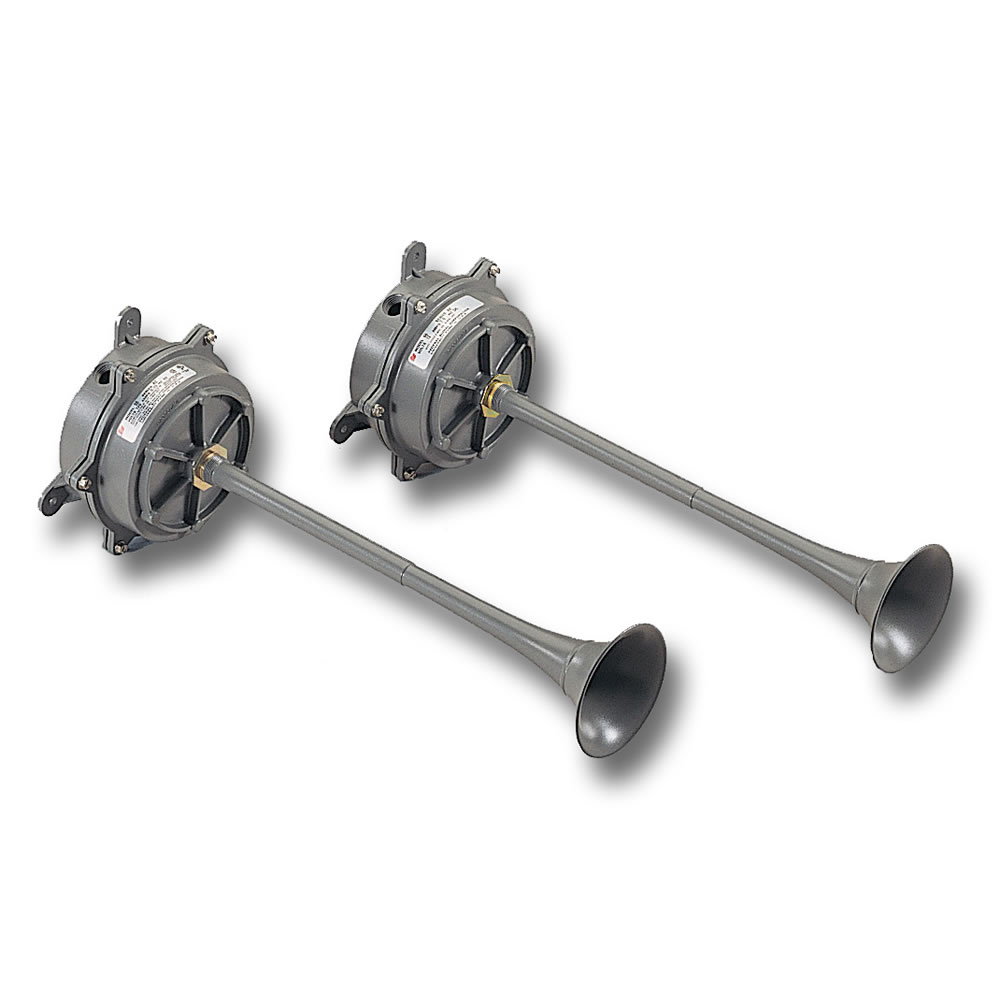

The Federal Signal Models 55 and 56 are electric horns that produce sound by means of a diaphragm, which resonates a column of air. Because the output is greater than that of a vibrating horn resonating horns can be used wherever a louder, more powerful signal is required.
The Federal Signal Models 55 and 56 are electric horns that produce sound by means of a diaphragm, which resonates a column of air. Because the output is greater than that of a vibrating horn resonating horns can be used wherever a louder, more powerful signal is required.
Application Indoor/Outdoor ARRA Compliant C Buy American Compliant C Catalog Number 55-120-1 Country of Origin US Currency USD Dimensions 8.0 H x 8.0 W x 19.75 L in EU RoHS Indicator N Frequency Rating 60 Hz Gross Weight Per Pack 6.2000 lb Gross Weight per Pack Metric 2.81 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8531809041 Height 9.38 in Height [Metric] 23.8252 cm Indoor|Outdoor Indoor/Outdoor Length 8.25 in Length [Metric] 20.9550 cm Loudness 105 DB Material Cast Aluminum Housing/Spun Brass Projector Operating Current 0.75 A Operating Temperature -35 to 150 °F Operating Voltage 120VAC 60Hz Series 55 Series Standard UL LISTED/CSA CERTIFIED Standards ARRA CompliantBuy American Act Compliant Type Resonating Horn UNSPSC 46171602 UPC 11 78297922890 UPC 12 782979228905 Width 23.38 in Width [Metric] 59.3852 cm Stock Status NONSTOCK Brand Federal Signal Manufacturer Federal Signal Amperage Rating 3 A Color Gray Sound Level 115/105 dB Specifications Met UL/cUL Listed, CSFM Approved, CSA Certified Voltage Rating 120 VAC Indoor/Outdoor Resonated Column Of Air Generates Sound Resonated column of air generates sound Corrosion-resistant cast aluminum housing and spun brass projector Model 55 produces 105 dBA at 10 ft Weatherproof, water and dust-tight Gray enamel paint coating Require minimum maintenance, rugged designs seal out corrosive dust and vapors Both models have sufficient output to penetrate through high ambient noise levels 115/105 dB at 1 m/10 ft sound leve
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Indoor/Outdoor |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 55-120-1 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.0 H x 8.0 W x 19.75 L in |
| EU RoHS Indicator | N |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 6.2000 lb |
| Gross Weight per Pack Metric | 2.81 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8531809041 |
| Height | 9.38 in |
| Height [Metric] | 23.8252 cm |
| Indoor|Outdoor | Indoor/Outdoor |
| Length | 8.25 in |
| Length [Metric] | 20.9550 cm |
| Loudness | 105 DB |
| Material | Cast Aluminum Housing/Spun Brass Projector |
| Operating Current | 0.75 A |
| Operating Temperature | -35 to 150 °F |
| Operating Voltage | 120VAC 60Hz |
| Series | 55 Series |
| Standard | UL LISTED/CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act Compliant |
| Type | Resonating Horn |
| UNSPSC | 46171602 |
| UPC 11 | 78297922890 |
| UPC 12 | 782979228905 |
| Width | 23.38 in |
| Width [Metric] | 59.3852 cm |
| Stock Status | NONSTOCK |
| Brand | Federal Signal |
| Manufacturer | Federal Signal |
| Amperage Rating | 3 A |
| Color | Gray |
| Sound Level | 115/105 dB |
| Specifications Met | UL/cUL Listed, CSFM Approved, CSA Certified |
| Voltage Rating | 120 VAC |
| Indoor/Outdoor |
| Resonated Column Of Air Generates Sound |
| Resonated column of air generates sound |
| Corrosion-resistant cast aluminum housing and spun brass projector |
| Model 55 produces 105 dBA at 10 ft |
| Weatherproof, water and dust-tight |
| Gray enamel paint coating |
| Require minimum maintenance, rugged designs seal out corrosive dust and vapors |
| Both models have sufficient output to penetrate through high ambient noise levels |
| 115/105 dB at 1 m/10 ft sound leve |
