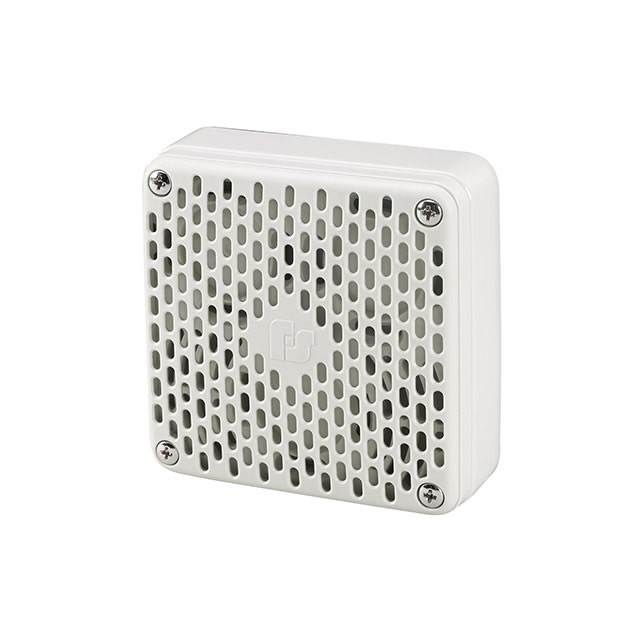

Federal Signal 450E-024 Vibratone® 450E General Purpose Non-Metallic Electronic Horn, 12 to 24 VDC, 0.12/0.22 A, 109/99 dB
Custom_Product_Images_Illustration
Federal Signal 450E-024 Vibratone® 450E General Purpose Non-Metallic Electronic Horn, 12 to 24 VDC, 0.12/0.22 A, 109/99 dB
SKU834076
MFGR #450E-024
Your Cost: $235.73/ea
Model 450E electronic horn offers a patent pending electronics design that produces a very loud, clear and distinctive electronic tone This model is capable of producing sustained tone or coded blasts through push button or PLC control devices without duty cycle or interval limitations.
Model 450E electronic horn offers a patent pending electronics design that produces a very loud, clear and distinctive electronic tone This model is capable of producing sustained tone or coded blasts through push button or PLC control devices without duty cycle or interval limitations.
Application Indoor/Outdoor ARRA Compliant C Buy American Compliant C Catalog Number 450E-024 Country of Origin CN Currency USD Dimensions 4.11 H x 4.11 W x 2.79 D in EU RoHS Indicator Y Gross Weight Per Pack 0.7950 lb Gross Weight per Pack Metric 0.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8531809041 Height 5.00 in Height [Metric] 12.7000 cm Length 5.00 in Length [Metric] 12.7000 cm Loudness 94 at 12VDC/99 at 24VDC/98 at 16-33VDC DB Material Polycarbonate Housing/Polymeric Speaker Mounting Surface Operating Current 0.12 at 12VDC/0.22 at 24VDC/0.25 at 16-33VDC A Operating Temperature -65 to 150 °F Operating Voltage 12-24VDC General Purpose/16-33VDC Fire Regulated Series 450E Standard UL and cUL Listed/UL and ULC Fire Listed/CSFM Approved/Marine Rated Standards ARRA CompliantBuy American Act CompliantRoHS CompliantMarine Rated Sub Brand Vibratone Type Electronic Horn UNSPSC 46171602 UPC 11 78297923138 UPC 12 782979231387 Width 4.50 in Width [Metric] 11.4300 cm Stock Status NORMALLY STOCKED Brand Federal Signal Manufacturer Federal Signal Amperage Rating 0.12/0.22 A Color Light Gray Mounting Type Flush Sound Level 109/99 dB Specifications Met CSFM Approved, UL/cUL Listed Voltage Rating 12 to 24 VDC Indoor/Outdoor Loud, Clear and Distinctive Tone Coded or sustained tones Range of up to 200 feet No duty cycle or interval limitations 4-wire terminal block and supervisory diode Type 4X when installed with panel mount gasket (included) or optional non-metallic weatherproof back box(model WB-NM) 4-wire terminal block and supervisory diode design also makes this unit ideal for fire alarm applications The horns non-metallic, polycarbonate light gray (RAL 7035) housing and polymeric speaker cone material are corrosion-resistant and weatherproof for improved durability in harsh industrial environments Surface or flush mounting options allow for installation on walls, panels, 4-inch square outlet boxes, cabinets, or deep concrete wall constructions Double Projector accessory (Model PR2) mounted on the front of the unit directs side sound output, optimizing signaling for long, narrow rooms or corridors 109/99 dB at 1 m/10 ft sound leve
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Indoor/Outdoor |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 450E-024 |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.11 H x 4.11 W x 2.79 D in |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.7950 lb |
| Gross Weight per Pack Metric | 0.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8531809041 |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Length | 5.00 in |
| Length [Metric] | 12.7000 cm |
| Loudness | 94 at 12VDC/99 at 24VDC/98 at 16-33VDC DB |
| Material | Polycarbonate Housing/Polymeric Speaker |
| Mounting | Surface |
| Operating Current | 0.12 at 12VDC/0.22 at 24VDC/0.25 at 16-33VDC A |
| Operating Temperature | -65 to 150 °F |
| Operating Voltage | 12-24VDC General Purpose/16-33VDC Fire Regulated |
| Series | 450E |
| Standard | UL and cUL Listed/UL and ULC Fire Listed/CSFM Approved/Marine Rated |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantMarine Rated |
| Sub Brand | Vibratone |
| Type | Electronic Horn |
| UNSPSC | 46171602 |
| UPC 11 | 78297923138 |
| UPC 12 | 782979231387 |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Federal Signal |
| Manufacturer | Federal Signal |
| Amperage Rating | 0.12/0.22 A |
| Color | Light Gray |
| Mounting Type | Flush |
| Sound Level | 109/99 dB |
| Specifications Met | CSFM Approved, UL/cUL Listed |
| Voltage Rating | 12 to 24 VDC |
| Indoor/Outdoor |
| Loud, Clear and Distinctive Tone |
| Coded or sustained tones |
| Range of up to 200 feet |
| No duty cycle or interval limitations |
| 4-wire terminal block and supervisory diode |
| Type 4X when installed with panel mount gasket (included) or optional non-metallic weatherproof back box(model WB-NM) |
| 4-wire terminal block and supervisory diode design also makes this unit ideal for fire alarm applications |
| The horns non-metallic, polycarbonate light gray (RAL 7035) housing and polymeric speaker cone material are corrosion-resistant and weatherproof for improved durability in harsh industrial environments |
| Surface or flush mounting options allow for installation on walls, panels, 4-inch square outlet boxes, cabinets, or deep concrete wall constructions |
| Double Projector accessory (Model PR2) mounted on the front of the unit directs side sound output, optimizing signaling for long, narrow rooms or corridors |
| 109/99 dB at 1 m/10 ft sound leve |
