Federal Signal
Federal Signal 350-012-30 Vibratone® 350 Compact Heavy Duty Electronic Horn, 12 VAC, 0.9 A, 104/94 dB, Panel Mount, Gray
Custom_Product_Images_Illustration
Federal Signal

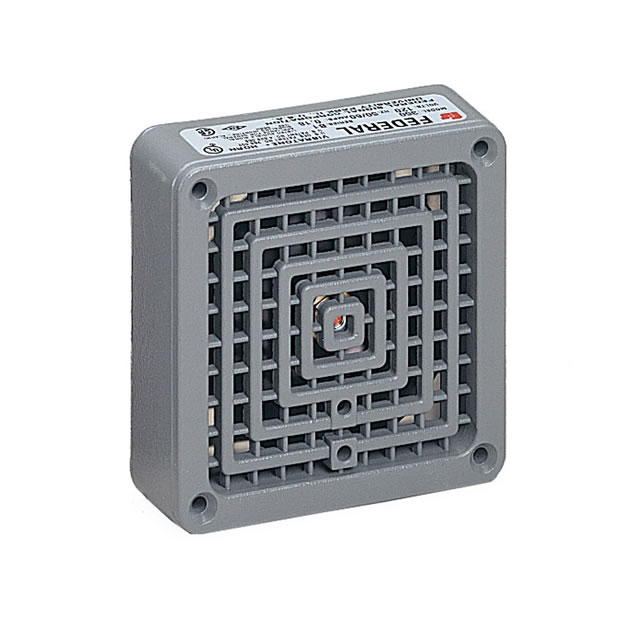

Federal Signal 350-012-30 Vibratone® 350 Compact Heavy Duty Electronic Horn, 12 VAC, 0.9 A, 104/94 dB, Panel Mount, Gray
SKU446687
MFGR #350-012-30
Your Cost: $152.79/ea
The Models 350 VibratoneHorns produce a very loud horn toneby the electro-mechanical vibration of a diaphragm. Capable of reproducing coded blasts or sustained tone through the use of a number of control devices from a push button to a PLC. Federal Signals Vibratonehorn is excellent for general alarm, start and dismissal, coded paging, and process control signaling in areas of high ambient noise levels.
The Models 350 VibratoneHorns produce a very loud horn toneby the electro-mechanical vibration of a diaphragm. Capable of reproducing coded blasts or sustained tone through the use of a number of control devices from a push button to a PLC. Federal Signals Vibratonehorn is excellent for general alarm, start and dismissal, coded paging, and process control signaling in areas of high ambient noise levels.
Application Indoor/Outdoor ARRA Compliant C Buy American Compliant C Catalog Number 350-012-30 Country of Origin US Currency USD Dimensions 4.06 H x 4.06 W x 2.19 D in EU RoHS Indicator N Frequency Rating 50/60 Hz Gross Weight Per Pack 1.5000 lb Gross Weight per Pack Metric 0.68 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8531809041 Height 4.75 in Height [Metric] 12.0650 cm Indoor|Outdoor Indoor/Outdoor Length 3.00 in Length [Metric] 7.6200 cm Loudness 94 DB Material Zinc Die-Cast Housing Mounting Panel/Surface Operating Current 0.9 A Operating Temperature -65 to 150 °F Operating Voltage 12VAC 50-60Hz Series 350 Standard UL Listed/cUL Listed/CSA Certified Standards ARRA CompliantBuy American Act CompliantUL/cUL ListedCSA CertifiedFM Approved Sub Brand Vibratone Type Horn UNSPSC 46171602 UPC 11 78297920510 UPC 12 782979205104 Width 4.50 in Width [Metric] 11.4300 cm Stock Status NONSTOCK Brand Federal Signal Manufacturer Federal Signal Amperage Rating 0.9 A Color Gray Mounting Type Panel Sound Level 104/94 dB Specifications Met ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed|FM Approved|UL Listed Voltage Rating 12 VAC Indoor/Outdoor Coded Or Sustained Tones Coded or sustained tones Produces 100 dBA at 10 ft (110 dBA at 1 m) Surface or flush mounting options Type 4X when installed with panel mount gasket kit or weatherproof back box (model WB), type 4X and type 12 when installed with surface mount trim ring (model TR) Mounting options include surface, flush or semi-flush on walls, panels, in cabinets, on 4 in square outlet boxes, or in concrete and deep wall constructions Double projector accessory (Model PR2) mounted on the front of the unit directs side sound output, optimizing signaling for long, narrow rooms or corridors Vibratone 350 horn is enclosed in a zinc die-cast housing and sealed with grey powder coat paint and features a stainless steel diaphragm Rugged construction of the Vibratone horn resists vandalism and the effects of harsh industrial environments 104/94 dB at 1 m/10 ft sound level
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Indoor/Outdoor |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 350-012-30 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.06 H x 4.06 W x 2.19 D in |
| EU RoHS Indicator | N |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1.5000 lb |
| Gross Weight per Pack Metric | 0.68 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8531809041 |
| Height | 4.75 in |
| Height [Metric] | 12.0650 cm |
| Indoor|Outdoor | Indoor/Outdoor |
| Length | 3.00 in |
| Length [Metric] | 7.6200 cm |
| Loudness | 94 DB |
| Material | Zinc Die-Cast Housing |
| Mounting | Panel/Surface |
| Operating Current | 0.9 A |
| Operating Temperature | -65 to 150 °F |
| Operating Voltage | 12VAC 50-60Hz |
| Series | 350 |
| Standard | UL Listed/cUL Listed/CSA Certified |
| Standards | ARRA CompliantBuy American Act CompliantUL/cUL ListedCSA CertifiedFM Approved |
| Sub Brand | Vibratone |
| Type | Horn |
| UNSPSC | 46171602 |
| UPC 11 | 78297920510 |
| UPC 12 | 782979205104 |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NONSTOCK |
| Brand | Federal Signal |
| Manufacturer | Federal Signal |
| Amperage Rating | 0.9 A |
| Color | Gray |
| Mounting Type | Panel |
| Sound Level | 104/94 dB |
| Specifications Met | ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed|FM Approved|UL Listed |
| Voltage Rating | 12 VAC |
| Indoor/Outdoor |
| Coded Or Sustained Tones |
| Coded or sustained tones |
| Produces 100 dBA at 10 ft (110 dBA at 1 m) |
| Surface or flush mounting options |
| Type 4X when installed with panel mount gasket kit or weatherproof back box (model WB), type 4X and type 12 when installed with surface mount trim ring (model TR) |
| Mounting options include surface, flush or semi-flush on walls, panels, in cabinets, on 4 in square outlet boxes, or in concrete and deep wall constructions |
| Double projector accessory (Model PR2) mounted on the front of the unit directs side sound output, optimizing signaling for long, narrow rooms or corridors |
| Vibratone 350 horn is enclosed in a zinc die-cast housing and sealed with grey powder coat paint and features a stainless steel diaphragm |
| Rugged construction of the Vibratone horn resists vandalism and the effects of harsh industrial environments |
| 104/94 dB at 1 m/10 ft sound level |
