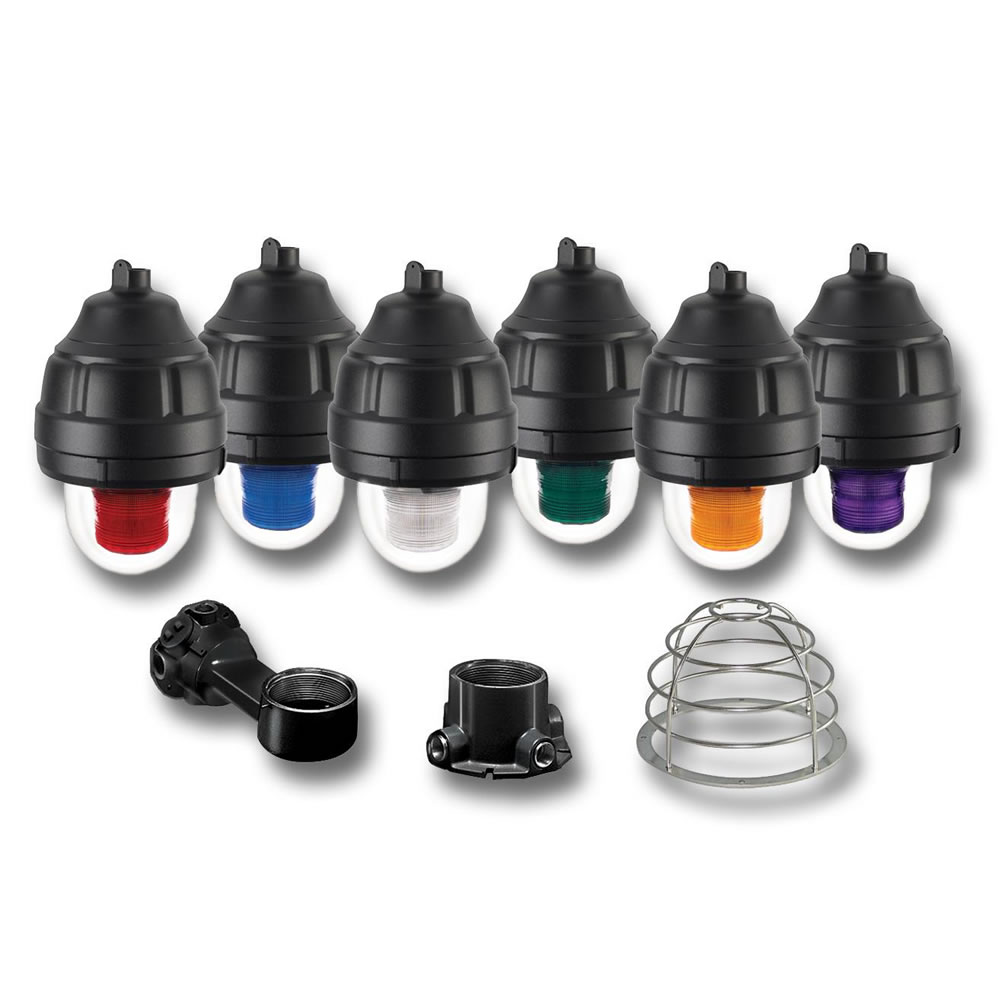

Federal Signal 27XST Explosionproof Flashing Strobe Light, 120 VAC, Strobe Tube Lamp, 8.8 in Dia, Pendant/Ceiling Mount
Custom_Product_Images_Illustration
Federal Signal 27XST Explosionproof Flashing Strobe Light, 120 VAC, Strobe Tube Lamp, 8.8 in Dia, Pendant/Ceiling Mount
SKU864505
MFGR #27XST-120R-MOD
Your Cost: $2,241.11/ea
Federal Signal's model 27XL explosionproof LED light with XLTTM produces 60 high intensity flashes per minute and is unique to the market because it covers an entire range of possible mounting configurations - including dome up. This warning light operates on 24 VAC/DC, 120 VAC, and 240 VAC 50/60Hz and is UL listed for class I, Division 1, groups C and D; class II, Division 1, groups E, F and G; class I, Division 2, groups A, B; and class III. The 27XL is UL and cUL listed, and marine Rated. eXtreme light technology (XLT) is a break through high intensity LED array designed to meet the demands of industrial customers, producing maximum light output and superior lens fill. Configurable to either steady burning state or flashing mode, XLT provides improved performance over standard LEDs and increased versatility while maintaining low power consumption and vibration resistance expected from LED devices. The 27XL features a standard low in-rush circuitry design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices. The 27XL is type 4X rated and constructed to IP66. Corrosion resistance is achieved with a powder coat finish applied over the copper-free aluminum housing. Federal Signal's model 27XL is specifically designed for explosionproof atmospheres and/or corrosive environments. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
Federal Signal's model 27XL explosionproof LED light with XLTTM produces 60 high intensity flashes per minute and is unique to the market because it covers an entire range of possible mounting configurations - including dome up. This warning light operates on 24 VAC/DC, 120 VAC, and 240 VAC 50/60Hz and is UL listed for class I, Division 1, groups C and D; class II, Division 1, groups E, F and G; class I, Division 2, groups A, B; and class III. The 27XL is UL and cUL listed, and marine Rated. eXtreme light technology (XLT) is a break through high intensity LED array designed to meet the demands of industrial customers, producing maximum light output and superior lens fill. Configurable to either steady burning state or flashing mode, XLT provides improved performance over standard LEDs and increased versatility while maintaining low power consumption and vibration resistance expected from LED devices. The 27XL features a standard low in-rush circuitry design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices. The 27XL is type 4X rated and constructed to IP66. Corrosion resistance is achieved with a powder coat finish applied over the copper-free aluminum housing. Federal Signal's model 27XL is specifically designed for explosionproof atmospheres and/or corrosive environments. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
Amperage Rating 1.14 A Application Indoor/Outdoor ARRA Compliant C Average Life 10,000 hr Buy American Compliant C Candle Power 2M cd Catalog Number 27XST-120R-MOD Color Red Country of Origin US Currency USD Dimensions 11.37 in H x 8.82 in W x 8.82 in D Environmental Conditions -67 to 150 DEG F EU RoHS Indicator N Flash Rate 80 fpm Flashes Per Minute 80 FLPM Gross Weight Per Pack 16.1000 lb Gross Weight per Pack Metric 6.67 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8531800050 Height 12.00 in Height [Metric] 30.4800 cm Housing Material Aluminum/Glass Length 11.50 in Length [Metric] 29.2100 cm Light Output 2000000 cd Material Aluminum/Glass Model 27XST Mounting 3/4-Inch NPT Pendant/Ceiling/Wall NEMA Rating Type 4X, IP66, IP69K Enclosure Series 27XST Shape Cylindrical Size 11.37 H x 8.82 W x 8.82 D in Standard UL Listed/cUL Listed/CSFM Approved/Marine Rated Standards ARRA CompliantBuy American Act CompliantUL ListedcUL ListedClass I Div 1, 2 Group C, D, Class I Div 2 Group A, B, Class II Div 1 Group E, F, G, Class IIICSFM ApprovedMarine Rated Style Strobe Temperature Rating -67 to 150 °F Type Explosion-Proof Strobe Light UNSPSC 39111706 UPC 11 78297923261 UPC 12 782979232612 Width 17.50 in Width [Metric] 44.4500 cm Stock Status NONSTOCK Brand Federal Signal Manufacturer Federal Signal Diameter 8.8 in Lamp Type Strobe Tube Lens Color RED Mounting Type Ceiling/Pendant Voltage Rating 120 to 240@50/60Hz VAC Indoor/Outdoor Voltage In-Rush Limiting PCB Design 3/4 in NPT pendant/ceiling wall mounting type Three mounting configurations Voltage inrush limiting PCB design
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 1.14 A |
| Application | Indoor/Outdoor |
| ARRA Compliant | C |
| Average Life | 10,000 hr |
| Buy American Compliant | C |
| Candle Power | 2M cd |
| Catalog Number | 27XST-120R-MOD |
| Color | Red |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 11.37 in H x 8.82 in W x 8.82 in D |
| Environmental Conditions | -67 to 150 DEG F |
| EU RoHS Indicator | N |
| Flash Rate | 80 fpm |
| Flashes Per Minute | 80 FLPM |
| Gross Weight Per Pack | 16.1000 lb |
| Gross Weight per Pack Metric | 6.67 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8531800050 |
| Height | 12.00 in |
| Height [Metric] | 30.4800 cm |
| Housing Material | Aluminum/Glass |
| Length | 11.50 in |
| Length [Metric] | 29.2100 cm |
| Light Output | 2000000 cd |
| Material | Aluminum/Glass |
| Model | 27XST |
| Mounting | 3/4-Inch NPT Pendant/Ceiling/Wall |
| NEMA Rating | Type 4X, IP66, IP69K Enclosure |
| Series | 27XST |
| Shape | Cylindrical |
| Size | 11.37 H x 8.82 W x 8.82 D in |
| Standard | UL Listed/cUL Listed/CSFM Approved/Marine Rated |
| Standards | ARRA CompliantBuy American Act CompliantUL ListedcUL ListedClass I Div 1, 2 Group C, D, Class I Div 2 Group A, B, Class II Div 1 Group E, F, G, Class IIICSFM ApprovedMarine Rated |
| Style | Strobe |
| Temperature Rating | -67 to 150 °F |
| Type | Explosion-Proof Strobe Light |
| UNSPSC | 39111706 |
| UPC 11 | 78297923261 |
| UPC 12 | 782979232612 |
| Width | 17.50 in |
| Width [Metric] | 44.4500 cm |
| Stock Status | NONSTOCK |
| Brand | Federal Signal |
| Manufacturer | Federal Signal |
| Diameter | 8.8 in |
| Lamp Type | Strobe Tube |
| Lens Color | RED |
| Mounting Type | Ceiling/Pendant |
| Voltage Rating | 120 to 240@50/60Hz VAC |
| Indoor/Outdoor |
| Voltage In-Rush Limiting PCB Design |
| 3/4 in NPT pendant/ceiling wall mounting type |
| Three mounting configurations |
| Voltage inrush limiting PCB design |
