Federal Signal

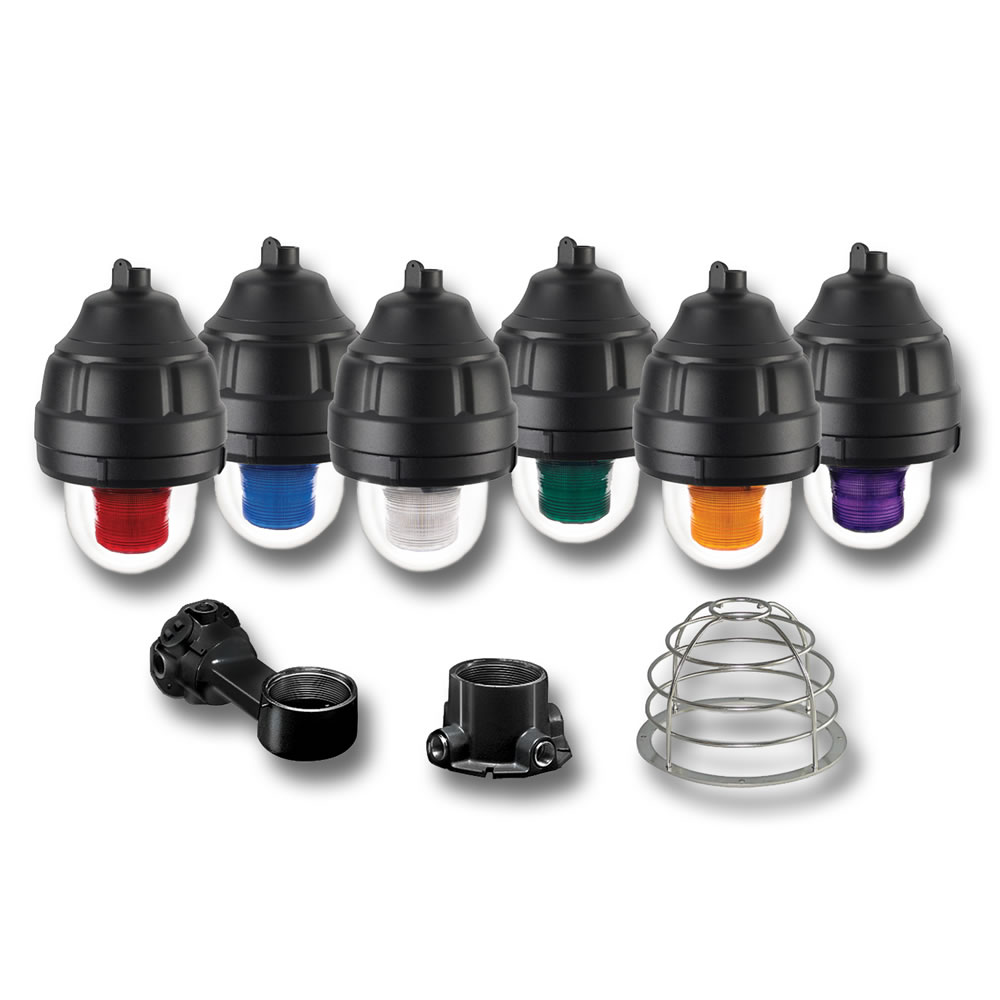

Federal Signal 27XL Explosionproof Flashing Warning Light, 120 to 240 VAC, LED Lamp, 8.8 in Dia, Pendant/Ceiling Mount
Custom_Product_Images_Illustration
Federal Signal
Federal Signal 27XL Explosionproof Flashing Warning Light, 120 to 240 VAC, LED Lamp, 8.8 in Dia, Pendant/Ceiling Mount
SKU849899
MFGR #27XL-120-240R-MOD
Your Cost: $2,144.12/ea
Federal Signal's model 27XL explosionproof LED light with XLTTM produces 60 high intensity flashes per minute and is unique to the market because it covers an entire range of possible mounting configurations including dome up. This warning light operates on 24 VAC/DC, 120 VAC, and 240 VAC 50/60Hz and is UL listed for class I, Division 1, groups C and D; class II, Division 1, groups E, F and G; class I, Division 2, groups A, B; and class III. The 27XL is UL and cUL listed, and marine Rated. eXtreme light technology (XLT) is a break through high intensity LED array designed to meet the demands of industrial customers, producing maximum light output and superior lens fill. Configurable to either steady burning state or flashing mode, XLT provides improved performance over standard LEDs and increased versatility while maintaining low power consumption and vibration resistance expected from LED devices. The 27XL features a standard low in-rush circuitry design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices. The 27XL is type 4X rated and constructed to IP66. Corrosion resistance is achieved with a powder coat finish applied over the copper-free aluminum housing. Federal Signal's model 27XL is specifically designed for explosionproof atmospheres and/or corrosive environments. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
Federal Signal's model 27XL explosionproof LED light with XLTTM produces 60 high intensity flashes per minute and is unique to the market because it covers an entire range of possible mounting configurations including dome up. This warning light operates on 24 VAC/DC, 120 VAC, and 240 VAC 50/60Hz and is UL listed for class I, Division 1, groups C and D; class II, Division 1, groups E, F and G; class I, Division 2, groups A, B; and class III. The 27XL is UL and cUL listed, and marine Rated. eXtreme light technology (XLT) is a break through high intensity LED array designed to meet the demands of industrial customers, producing maximum light output and superior lens fill. Configurable to either steady burning state or flashing mode, XLT provides improved performance over standard LEDs and increased versatility while maintaining low power consumption and vibration resistance expected from LED devices. The 27XL features a standard low in-rush circuitry design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices. The 27XL is type 4X rated and constructed to IP66. Corrosion resistance is achieved with a powder coat finish applied over the copper-free aluminum housing. Federal Signal's model 27XL is specifically designed for explosionproof atmospheres and/or corrosive environments. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
Amperage Rating 210/130 mA Application Indoor/Outdoor ARRA Compliant C Average Life 50,000 hr Buy American Compliant C Catalog Number 27XL-120-240R-MOD Color Red Country of Origin US Currency USD Dimensions 8 in Dia x 15.48 in H Environmental Conditions -67 to 150 DEG F EU RoHS Indicator N Flash Rate 60 fpm Flash Type Steady-Burn Flashes Per Minute 60 FLPM Gross Weight Per Pack 17.4000 lb Gross Weight per Pack Metric 7.89 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8531800050 Height 11.75 in Height [Metric] 29.8450 cm Housing Material Aluminum/Glass Length 11.50 in Length [Metric] 29.2100 cm Material Aluminum/Glass Model 27XL Mounting 3/4" NPT Pendant/Ceiling/Wall NEMA Rating Type 4X, IP66, IP69K Enclosure Series 27XL Shape Cylindrical Size 11.37 H x 8.82 W x 8.82 D in Standard UL Listed/cUL Listed/Marine Rated Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcUL ListedMarine Rated Style Flashing Temperature Rating -67 to 150 °F Type Explosion-Proof LED Warning Light UNSPSC 39111706 UPC 11 78297923275 UPC 12 782979232759 Width 17.00 in Width [Metric] 43.1800 cm Stock Status NONSTOCK Brand Federal Signal Manufacturer Federal Signal Diameter 8.8 in Lamp Type LED Lens Color RED Mounting Type Ceiling/Pendant Voltage Rating 120 to 240 VAC Indoor/Outdoor Several Mounting Options, Including Dome Up XLT technology 3/4 in NPT pendant
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 210/130 mA |
| Application | Indoor/Outdoor |
| ARRA Compliant | C |
| Average Life | 50,000 hr |
| Buy American Compliant | C |
| Catalog Number | 27XL-120-240R-MOD |
| Color | Red |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8 in Dia x 15.48 in H |
| Environmental Conditions | -67 to 150 DEG F |
| EU RoHS Indicator | N |
| Flash Rate | 60 fpm |
| Flash Type | Steady-Burn |
| Flashes Per Minute | 60 FLPM |
| Gross Weight Per Pack | 17.4000 lb |
| Gross Weight per Pack Metric | 7.89 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8531800050 |
| Height | 11.75 in |
| Height [Metric] | 29.8450 cm |
| Housing Material | Aluminum/Glass |
| Length | 11.50 in |
| Length [Metric] | 29.2100 cm |
| Material | Aluminum/Glass |
| Model | 27XL |
| Mounting | 3/4" NPT Pendant/Ceiling/Wall |
| NEMA Rating | Type 4X, IP66, IP69K Enclosure |
| Series | 27XL |
| Shape | Cylindrical |
| Size | 11.37 H x 8.82 W x 8.82 D in |
| Standard | UL Listed/cUL Listed/Marine Rated |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcUL ListedMarine Rated |
| Style | Flashing |
| Temperature Rating | -67 to 150 °F |
| Type | Explosion-Proof LED Warning Light |
| UNSPSC | 39111706 |
| UPC 11 | 78297923275 |
| UPC 12 | 782979232759 |
| Width | 17.00 in |
| Width [Metric] | 43.1800 cm |
| Stock Status | NONSTOCK |
| Brand | Federal Signal |
| Manufacturer | Federal Signal |
| Diameter | 8.8 in |
| Lamp Type | LED |
| Lens Color | RED |
| Mounting Type | Ceiling/Pendant |
| Voltage Rating | 120 to 240 VAC |
| Indoor/Outdoor |
| Several Mounting Options, Including Dome Up |
| XLT technology |
| 3/4 in NPT pendant |
