Bussmann

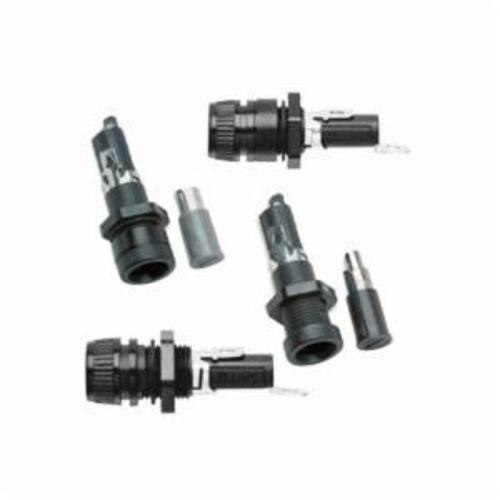

FUSEHOLDER
Custom_Product_Images_Illustration
Bussmann
FUSEHOLDER
SKU778890
MFGR #HTB-22M-R
Your Cost: $8.84/ea
List: Edison Fuse Holder, Low Profile, Series: HTB, 250 VAC, 16 A, Quick-Connect, Panel Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, -55 to 85 deg C, Thermoplastic, 1.595 in L
Edison Fuse Holder, Low Profile, Series: HTB, 250 VAC, 16 A, Quick-Connect, Panel Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, -55 to 85 deg C, Thermoplastic, 1.595 in L
Alternate Catalog Number HTB-22M-R Application Electrical Assemblies/Panels/EOEMs ARRA Compliant C Buy American Compliant C Catalog Number HTB-22M-R Color Black Connection Type Quick-Connect Country of Origin MX Currency USD Dimensions 1.69 in L EU RoHS Indicator C Fuse Diameter 5 mm Fuse Length 20 mm Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Height 0.70 in Height [Metric] 17.7800 mm Length 2.00 in Length [Metric] 5.0800 cm Material Thermoplastic Mounting Type Rear Panel Hex Nut Number Of Poles 1 Series HTB Standard Contact factory Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA Class 6225-01 File No. 47235, SEMKO Ref No. 0146149/01UL Recognized Guide IZLT2UL File No. E14853UL 94V0 Flammability Rated, VDE 136128 Sub Brand Bussmann Series Suitable For Use With HTB Series Fuse Temperature Rating -55 to 85 °C Type Fuse Holder UNSPSC 39121624 UPC 11 05171265939 UPC 12 051712659390 Width 1.20 in Width [Metric] 3.0480 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 16 A Voltage Rating 250 VAC Electrical Assemblies/Panels/EOEMs Fuse holders with knob type carriers Withstands 15 to 20 lb in torque to mounting nut when mounting fuse holder to panel High temperature, flame retardant, thermoplastic meets UL 94V0 16 A UL/CSA amperage rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HTB-22M-R |
| Application | Electrical Assemblies/Panels/EOEMs |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HTB-22M-R |
| Color | Black |
| Connection Type | Quick-Connect |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.69 in L |
| EU RoHS Indicator | C |
| Fuse Diameter | 5 mm |
| Fuse Length | 20 mm |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Height | 0.70 in |
| Height [Metric] | 17.7800 mm |
| Length | 2.00 in |
| Length [Metric] | 5.0800 cm |
| Material | Thermoplastic |
| Mounting Type | Rear Panel Hex Nut |
| Number Of Poles | 1 |
| Series | HTB |
| Standard | Contact factory |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA Class 6225-01 File No. 47235, SEMKO Ref No. 0146149/01UL Recognized Guide IZLT2UL File No. E14853UL 94V0 Flammability Rated, VDE 136128 |
| Sub Brand | Bussmann Series |
| Suitable For Use With | HTB Series Fuse |
| Temperature Rating | -55 to 85 °C |
| Type | Fuse Holder |
| UNSPSC | 39121624 |
| UPC 11 | 05171265939 |
| UPC 12 | 051712659390 |
| Width | 1.20 in |
| Width [Metric] | 3.0480 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 16 A |
| Voltage Rating | 250 VAC |
| Electrical Assemblies/Panels/EOEMs |
| Fuse holders with knob type carriers |
| Withstands 15 to 20 lb in torque to mounting nut when mounting fuse holder to panel |
| High temperature, flame retardant, thermoplastic meets UL 94V0 |
| 16 A UL/CSA amperage rating |
