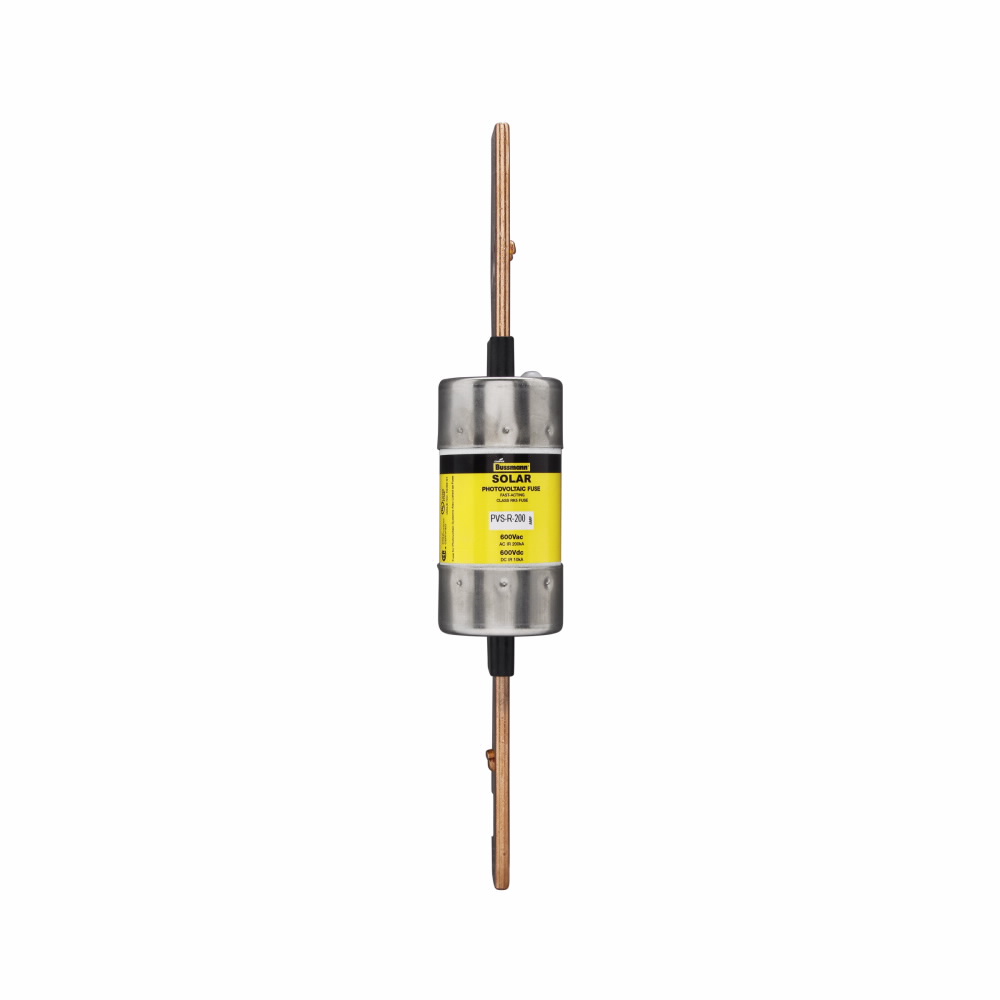

Edison PVS-R-200 PVS-R Current Limiting Fast Acting Fuse, 200 A, 600 VAC/VDC, 200/10 kA Interrupt, Class RK5, Cartridge Body
Custom_Product_Images_Illustration
Edison PVS-R-200 PVS-R Current Limiting Fast Acting Fuse, 200 A, 600 VAC/VDC, 200/10 kA Interrupt, Class RK5, Cartridge Body
SKU562761
MFGR #PVS-R-200
Your Cost: $392.06/ea
List: Edison Fast Acting Fuse, Current Limiting, Series: PVS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 200 A, 600 VAC/VDC, 200/10 kA Interrupt, Class: RK5, Knife Blade Terminal, Holder Mount, Cartridge Body, Single Element, Fiberglass, 1.84 in Dia x 9.63 in L Body Size
Edison Fast Acting Fuse, Current Limiting, Series: PVS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 200 A, 600 VAC/VDC, 200/10 kA Interrupt, Class: RK5, Knife Blade Terminal, Holder Mount, Cartridge Body, Single Element, Fiberglass, 1.84 in Dia x 9.63 in L Body Size
Alternate Catalog Number PVS-R-200 Application Generation - Renewable Energy - Alternative Energy ARRA Compliant C Body Size 1.84 in Dia x 9.63 in L Buy American Compliant C Catalog Number PVS-R-200 Connection Blade end x blade end Country of Origin MX Currency USD Element Single EU RoHS Indicator C Gross Weight Per Pack 1.0800 lb Gross Weight per Pack Metric 0.82 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 9.63 in Height [Metric] 24.4602 cm Indicating|Non~Indicating Non-Indicating Length 1.84 in Length [Metric] 4.6736 cm Material Fiberglass Mounting Type Holder Rejection|Non~Rejection Rejection Series PVS-R Size 1.84 In Diameter X 9.63 In Length Standard UL Recognized ,CSA Certified,Contact factory Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-12 Guide No. JFGA File No. E335324Photovoltaic to UL 2579CSA C22.2 Sub Brand Bussmann Series Terminal Type Blade Type Photovoltaic fuse UNSPSC 39121627 UPC 11 05171226826 UPC 12 051712268264 Width 1.84 in Width [Metric] 4.6736 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 200 A Body Type Cylindrical Class RK-5 Interrupt Rating 10 kAIC Vdc200 kAIC Vac kA Voltage Rating 600 VAC//VDC Generation - Renewable Energy - Alternative Energy Current limitation for non-inductive circuits provides class RK5 current limiting response to ground fault and short circuit conditions Designed for the protection and isolation of photovoltaic systems A range of UL 2579 fast acting 600 VDC class RK5 fuses specifically designed to protect solar power systems in extreme ambient temperature, high cycling and low level fault current conditions (reverse current, multi-array fault) 200 kA RMS symmetrical UL, 10 kA DC interrupt rating Proven application in constantly changing PV environmental conditions Easily applied in readily available class R fuse blocks and disconnects Maximize return on investment with fuses proven to withstand harsh temperatures
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | PVS-R-200 |
| Application | Generation - Renewable Energy - Alternative Energy |
| ARRA Compliant | C |
| Body Size | 1.84 in Dia x 9.63 in L |
| Buy American Compliant | C |
| Catalog Number | PVS-R-200 |
| Connection | Blade end x blade end |
| Country of Origin | MX |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.0800 lb |
| Gross Weight per Pack Metric | 0.82 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 9.63 in |
| Height [Metric] | 24.4602 cm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 1.84 in |
| Length [Metric] | 4.6736 cm |
| Material | Fiberglass |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Rejection |
| Series | PVS-R |
| Size | 1.84 In Diameter X 9.63 In Length |
| Standard | UL Recognized ,CSA Certified,Contact factory |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-12 Guide No. JFGA File No. E335324Photovoltaic to UL 2579CSA C22.2 |
| Sub Brand | Bussmann Series |
| Terminal Type | Blade |
| Type | Photovoltaic fuse |
| UNSPSC | 39121627 |
| UPC 11 | 05171226826 |
| UPC 12 | 051712268264 |
| Width | 1.84 in |
| Width [Metric] | 4.6736 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 200 A |
| Body Type | Cylindrical |
| Class | RK-5 |
| Interrupt Rating | 10 kAIC Vdc200 kAIC Vac kA |
| Voltage Rating | 600 VAC//VDC |
| Generation - Renewable Energy - Alternative Energy |
| Current limitation for non-inductive circuits provides class RK5 current limiting response to ground fault and short circuit conditions |
| Designed for the protection and isolation of photovoltaic systems |
| A range of UL 2579 fast acting 600 VDC class RK5 fuses specifically designed to protect solar power systems in extreme ambient temperature, high cycling and low level fault current conditions (reverse current, multi-array fault) |
| 200 kA RMS symmetrical UL, 10 kA DC interrupt rating |
| Proven application in constantly changing PV environmental conditions |
| Easily applied in readily available class R fuse blocks and disconnects |
| Maximize return on investment with fuses proven to withstand harsh temperatures |
