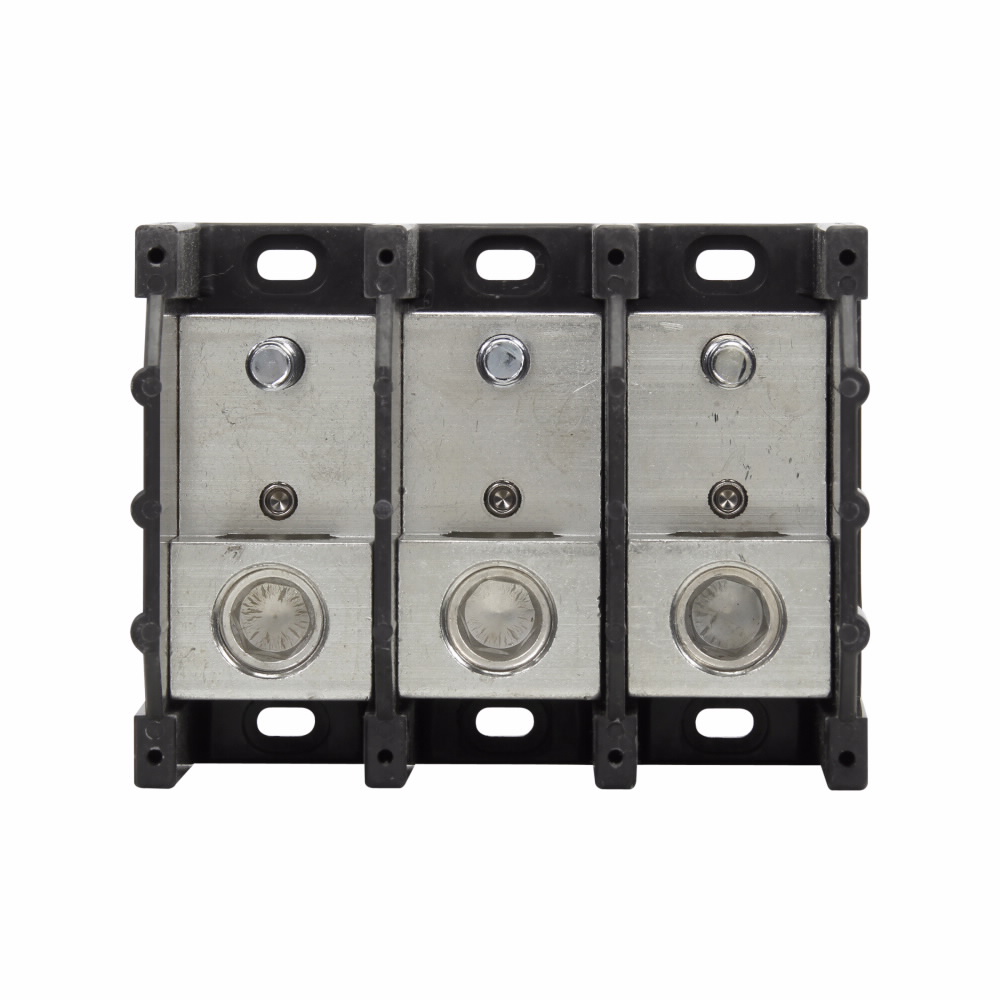

Edison Magnum® 16383-3 Connector Stud Power Distribution Block, 600 VAC/VDC, 380 A, 3 Poles, 6 AWG to 500 kcmil Wire
Custom_Product_Images_Illustration
Edison Magnum® 16383-3 Connector Stud Power Distribution Block, 600 VAC/VDC, 380 A, 3 Poles, 6 AWG to 500 kcmil Wire
SKU788480
MFGR #16383-3
Your Cost: $289.10/ea
List: Edison series UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).
Edison series UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).
Alternate Catalog Number 16383-3 Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs ARRA Compliant C Buy American Compliant C Catalog Number 16383-3 Color Black Connection Load: (1) 3/8 - 16 x 1 Stud Country of Origin MX Currency USD Dimensions 5.21 in L x 4 in W x 3.32 in H EU RoHS Indicator C Gross Weight Per Pack 1.2000 lb Gross Weight per Pack Metric 0.88 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 4.00 in Height [Metric] 10.1600 cm Length 6.50 in Length [Metric] 16.5100 cm Number Of Poles 3 Series 163 Short Circuit Current Rating 10 Size 5.21 In Length X 4.00 In Width X 3.32 In Height Standard RoHS Compliant,Contact factory Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 1059508AFile No. E221592Guide XCFR2CSA Class 6228-01File No. 53787CE CertifiedUL 94-V-0 Flammability Rating Sub Brand Bussmann Series Type Power terminal block UNSPSC 39121410 UPC 11 05171227145 UPC 12 051712271455 Width 4.50 in Width [Metric] 11.4300 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 380 A Material Thermoplastic base, tin plated aluminum connector Voltage Rating 600 Vac/dc maximum Wire Size #6 AWG-500 kcmil Cu/Al Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs Short Circuit Current Rating 10 kA 6 AWG to 500 kcmil copper/aluminum line, 3/8-16 x 1 in stud load connection Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port Molded thermoplastic base, tin plated aluminum connector SMD/SMT style mounting (2) 6 AWG to 500 kcmil copper/aluminum line wire (1) screw primary, (1) stud secondary (1) 3/8-16 x 1 stud load
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 16383-3 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 16383-3 |
| Color | Black |
| Connection | Load: (1) 3/8 - 16 x 1 Stud |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.2000 lb |
| Gross Weight per Pack Metric | 0.88 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Number Of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating | 10 |
| Size | 5.21 In Length X 4.00 In Width X 3.32 In Height |
| Standard | RoHS Compliant,Contact factory |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 1059508AFile No. E221592Guide XCFR2CSA Class 6228-01File No. 53787CE CertifiedUL 94-V-0 Flammability Rating |
| Sub Brand | Bussmann Series |
| Type | Power terminal block |
| UNSPSC | 39121410 |
| UPC 11 | 05171227145 |
| UPC 12 | 051712271455 |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 380 A |
| Material | Thermoplastic base, tin plated aluminum connector |
| Voltage Rating | 600 Vac/dc maximum |
| Wire Size | #6 AWG-500 kcmil Cu/Al |
| Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Short Circuit Current Rating 10 kA |
| 6 AWG to 500 kcmil copper/aluminum line, 3/8-16 x 1 in stud load connection |
| Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port |
| Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port |
| Molded thermoplastic base, tin plated aluminum connector |
| SMD/SMT style mounting |
| (2) 6 AWG to 500 kcmil copper/aluminum line wire |
| (1) screw primary, (1) stud secondary |
| (1) 3/8-16 x 1 stud load |
