Bussmann

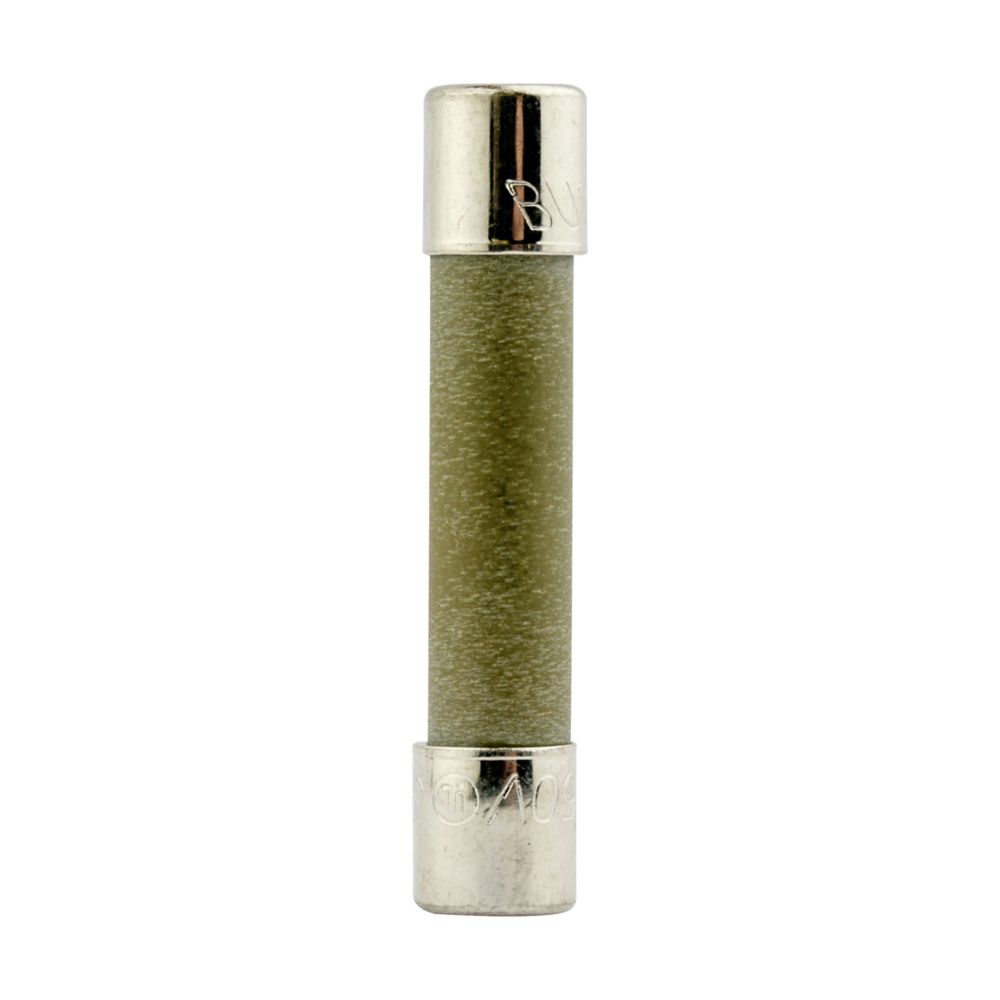

Edison MDA-20-R MDA Small Dimension Time Delay Fuse, 20 A, 250 VAC/125 VDC, 1.5 A at 10 kA, Cylindrical Body
Custom_Product_Images_Illustration
Bussmann
Edison MDA-20-R MDA Small Dimension Time Delay Fuse, 20 A, 250 VAC/125 VDC, 1.5 A at 10 kA, Cylindrical Body
SKU638063
MFGR #MDA-20-R
Your Cost: $6.54/ea
List: From over current and overvoltage protection to super capacitors and magnetics, cooper Bussmann provides integrated solutions that meet the evolving needs of technology-driven markets. cooper Bussmann is a leader and an innovator in providing cost-effective, comprehensive solutions that utilize the high quality brand names that customers know and trust.
From over current and overvoltage protection to super capacitors and magnetics, cooper Bussmann provides integrated solutions that meet the evolving needs of technology-driven markets. cooper Bussmann is a leader and an innovator in providing cost-effective, comprehensive solutions that utilize the high quality brand names that customers know and trust.
Alternate Catalog Number MDA-20-R Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 1/4 in Dia x 1-1/4 in L Buy American Compliant C Catalog Number MDA-20-R Connection Ferrule end x ferrule end Country of Origin CN Currency USD Element Single EU RoHS Indicator C Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 0.32 in Height [Metric] 0.8001 cm Indicating|Non~Indicating Non-Indicating Length 1.65 in Length [Metric] 4.2012 cm Material Nickel-plated brass end cap constructionCeramic tube Mounting Type Clip/Holder Rejection|Non~Rejection Non-Rejection Response Time 60 min at 135%, 120 sec at 200% s Series MDA Size 1/4 In Diameter X 1-1/4 In Length Standard RoHS Compliant,CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS 2011/65/EU/2002/95/ECUL 248-14 Guide No. JDYX File No. E19180CSA Class No. 1422-01CE Certified Sub Brand Bussmann Series Terminal Type Ferrule Type Time-delay fuse UNSPSC 39121611 UPC 11 05171254249 UPC 12 051712542494 Width 1.38 in Width [Metric] 3.5001 cm Stock Status NORMALLY STOCKED Brand Bussmann Manufacturer Eaton Amperage Rating 20 A Body Type Cylindrical Interrupt Rating 1.5 kAIC at 250 Vac10 kAIC at 125 Vac/dc kA Voltage Rating 250 Vac, 125 Vdc, 32 Vdc (self certified) VAC//VDC Ind Facilities & Factories - Facility: Safety and Security Systems Ceramic tube Ceramic body allows for higher amp/volt rating combinations Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse 1500 A at 250 VAC, 10 kA at 125 VDC interrupt rating 60 min maximum at 135%, 120 s maximum at 200% response time Nickel plated brass end cap Without axial leads
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | MDA-20-R |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Buy American Compliant | C |
| Catalog Number | MDA-20-R |
| Connection | Ferrule end x ferrule end |
| Country of Origin | CN |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 0.32 in |
| Height [Metric] | 0.8001 cm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 1.65 in |
| Length [Metric] | 4.2012 cm |
| Material | Nickel-plated brass end cap constructionCeramic tube |
| Mounting Type | Clip/Holder |
| Rejection|Non~Rejection | Non-Rejection |
| Response Time | 60 min at 135%, 120 sec at 200% s |
| Series | MDA |
| Size | 1/4 In Diameter X 1-1/4 In Length |
| Standard | RoHS Compliant,CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS 2011/65/EU/2002/95/ECUL 248-14 Guide No. JDYX File No. E19180CSA Class No. 1422-01CE Certified |
| Sub Brand | Bussmann Series |
| Terminal Type | Ferrule |
| Type | Time-delay fuse |
| UNSPSC | 39121611 |
| UPC 11 | 05171254249 |
| UPC 12 | 051712542494 |
| Width | 1.38 in |
| Width [Metric] | 3.5001 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 20 A |
| Body Type | Cylindrical |
| Interrupt Rating | 1.5 kAIC at 250 Vac10 kAIC at 125 Vac/dc kA |
| Voltage Rating | 250 Vac, 125 Vdc, 32 Vdc (self certified) VAC//VDC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Ceramic tube |
| Ceramic body allows for higher amp/volt rating combinations |
| Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse |
| 1500 A at 250 VAC, 10 kA at 125 VDC interrupt rating |
| 60 min maximum at 135%, 120 s maximum at 200% response time |
| Nickel plated brass end cap |
| Without axial leads |
