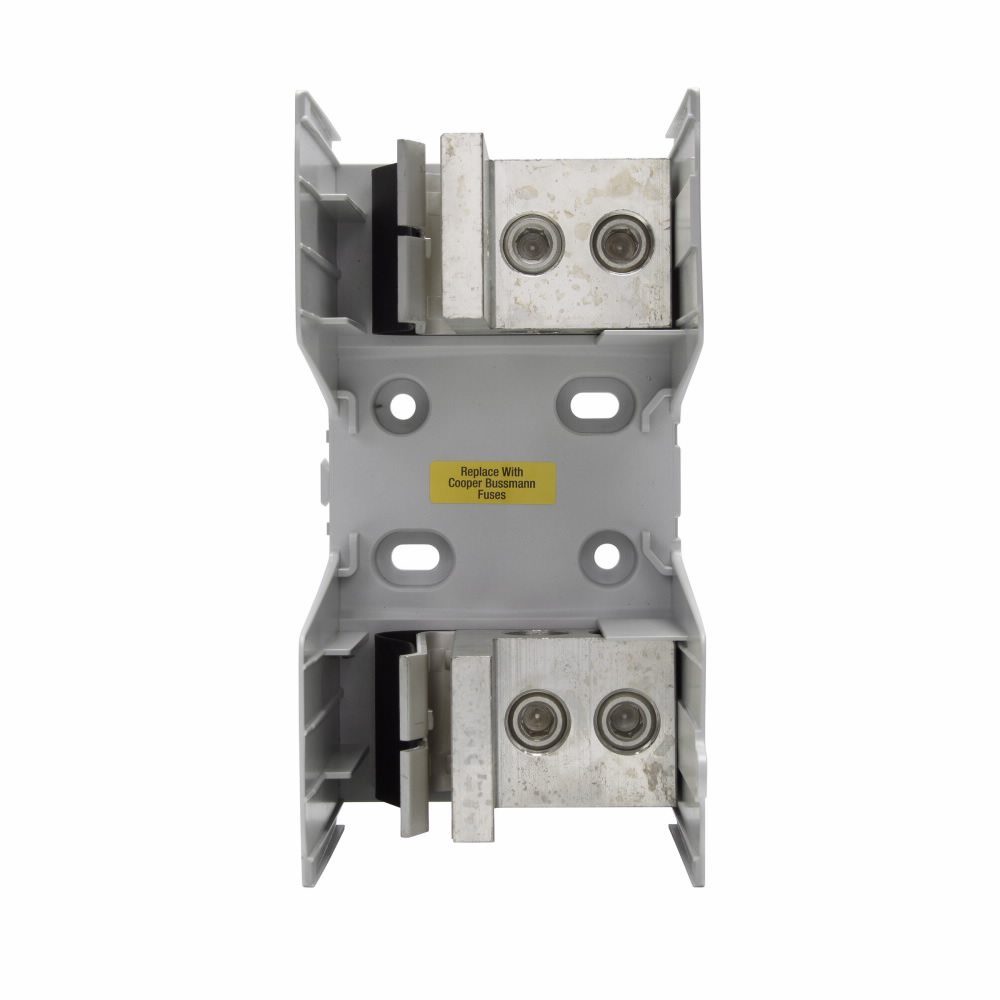

Edison JM60600-1CR JM600 Knife Blade Fuse Block, 600 VAC, 450 to 600 A, 4 AWG to 500 kcmil Wire, 1 Pole
Custom_Product_Images_Illustration
Edison JM60600-1CR JM600 Knife Blade Fuse Block, 600 VAC, 450 to 600 A, 4 AWG to 500 kcmil Wire, 1 Pole
SKU875329
MFGR #JM60600-1CR
Your Cost: $1,169.83/ea
List: Bussmann® series Ultimate protection LPJ Class J dual element, current-limiting, time delay fuses available with optional open fuse indication. time delay 10 seconds (minimum) at 500% of rated current.
Bussmann® series Ultimate protection LPJ Class J dual element, current-limiting, time delay fuses available with optional open fuse indication. time delay 10 seconds (minimum) at 500% of rated current.
Alternate Catalog Number JM60600-1CR Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs ARRA Compliant C Buy American Compliant C Catalog Number JM60600-1CR Connection Knife blade end x knife blade end Connection Type Box Lug Country of Origin MX Currency USD Dimensions 9.3 in L x 4.8 in W x 6 in H EU RoHS Indicator C Fuse Diameter 2-1/2 Fuse Holder Code AE Fuse Length 8 Gross Weight Per Pack 0.0010 lb Gross Weight per Pack Metric 1.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 6.00 in Height [Metric] 15.2400 cm Length 9.25 in Length [Metric] 23.4950 cm Material Thermoplastic Mounting Type Panel Number Of Poles 1 Series JM600 Standard CSA Certified ,Contact Manufacturer ,UL Listed,RoHS Compliant,CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcULus File No. E14853CSA CertifiedUL94 V-0 Flammability Rating Sub Brand Bussmann Series Suitable For Use With Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse Temperature Rating -40 to 120 UNSPSC 39121629 UPC 11 05171239109 UPC 12 051712391092 Width 4.25 in Width [Metric] 10.7950 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 450-600A Class J Type Modular fuse block Voltage Rating 600 V Wire Size 4 AWG to 500 kcmil Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs CR Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility Factory assembled two- and three pole configurations available Up to four mounting holes per pole increase installation flexibility Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845) 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A) Design meets UL creep and clearance requirements for Industrial Power Circuits Optional IP20 finger-safe covers available on entire knife blade fuse block product line Probe holes for easy testing without removing cover Finger grips on cover for easy removal 200 kA short circuit current rating Tin-plated aluminum terminal UL 94V0 Flammability rating Built-in lockout/tagout feature improves safety High-clarity see-through covers allow for inspecting wire terminations or thermography measurements without removing cover
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | JM60600-1CR |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | JM60600-1CR |
| Connection | Knife blade end x knife blade end |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 9.3 in L x 4.8 in W x 6 in H |
| EU RoHS Indicator | C |
| Fuse Diameter | 2-1/2 |
| Fuse Holder Code | AE |
| Fuse Length | 8 |
| Gross Weight Per Pack | 0.0010 lb |
| Gross Weight per Pack Metric | 1.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 6.00 in |
| Height [Metric] | 15.2400 cm |
| Length | 9.25 in |
| Length [Metric] | 23.4950 cm |
| Material | Thermoplastic |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Series | JM600 |
| Standard | CSA Certified ,Contact Manufacturer ,UL Listed,RoHS Compliant,CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcULus File No. E14853CSA CertifiedUL94 V-0 Flammability Rating |
| Sub Brand | Bussmann Series |
| Suitable For Use With | Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse |
| Temperature Rating | -40 to 120 |
| UNSPSC | 39121629 |
| UPC 11 | 05171239109 |
| UPC 12 | 051712391092 |
| Width | 4.25 in |
| Width [Metric] | 10.7950 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 450-600A |
| Class | J |
| Type | Modular fuse block |
| Voltage Rating | 600 V |
| Wire Size | 4 AWG to 500 kcmil |
| Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| CR |
| Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility |
| Factory assembled two- and three pole configurations available |
| Up to four mounting holes per pole increase installation flexibility |
| Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845) |
| 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A) |
| Design meets UL creep and clearance requirements for Industrial Power Circuits |
| Optional IP20 finger-safe covers available on entire knife blade fuse block product line |
| Probe holes for easy testing without removing cover |
| Finger grips on cover for easy removal |
| 200 kA short circuit current rating |
| Tin-plated aluminum terminal |
| UL 94V0 Flammability rating |
| Built-in lockout/tagout feature improves safety |
| High-clarity see-through covers allow for inspecting wire terminations or thermography measurements without removing cover |
