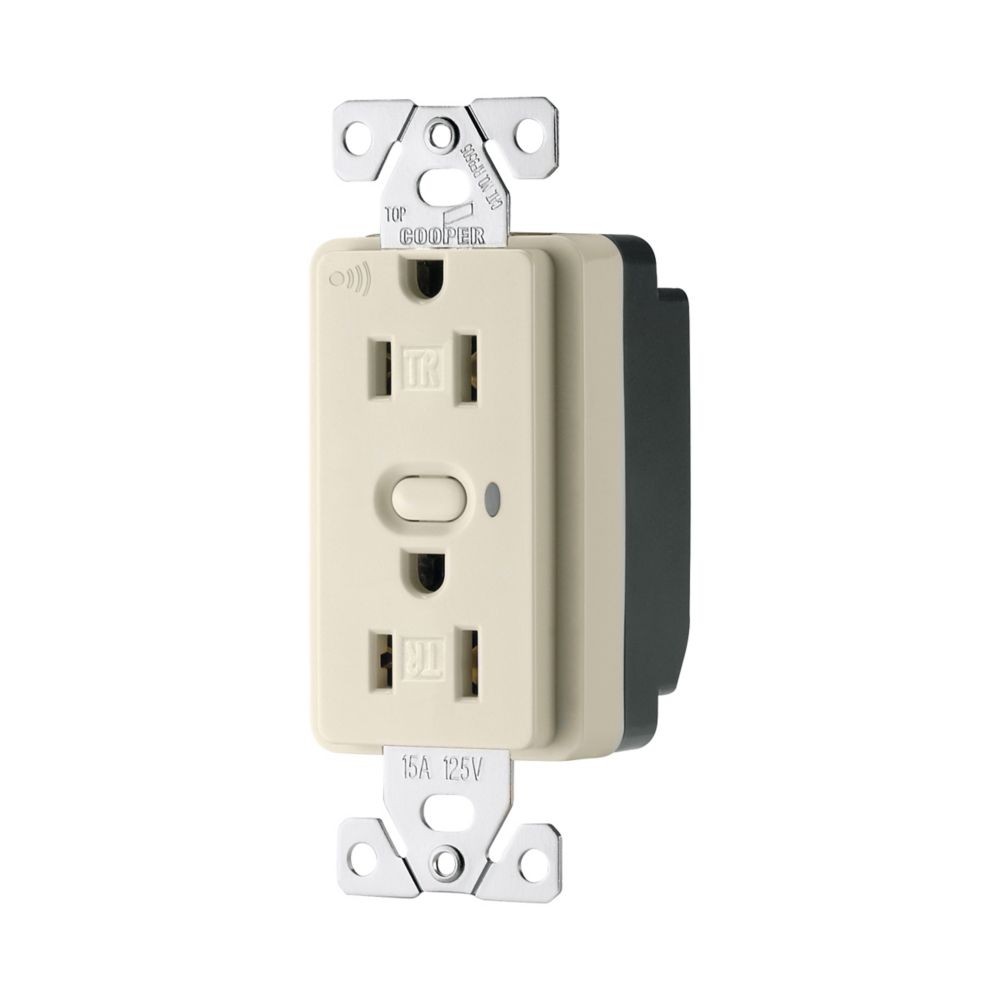

Eaton Wiring Devices RFTR9505-TWS Split Control Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White Satin
Straight Blade Receptacles
811160
MFG #: RFTR9505-TWS
EATON
86.22000
/ ea
Eaton Wiring Devices Duplex Receptacle, Split Control, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 14 to 12 AWG Wire, NEMA 5-15R, 6 in, Grade: Residential, White Satin, Environmental Conditions: 32 to 104 deg F
- Brochure URL - connected-home-brochure.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_9166ab44fa78de2d9c9f178dd12da4dfd6ce249596f8f2ddef31a707d7418cbe.pdf(Catalog URL)
- http://www.cooperwiringdevices.com(Seller Home Page URL)
- Spec Sheet URL - 11033_N4ULP9CXK6T028IO.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/exmqwz0CWyo(Video)
- Applications
- Features
| Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other |
| Tamper Resistant Receptacle |
| Provides RF control of One-outlet leaving the other one for normal use |
| Complies with 2011 NEC section 406.12 specification that states all receptacles installed in dwelling units must be tamper-resistant (dwelling units are defined in NEC Article 210.52) |
| Offers UL listed safety shutter system that prevents insertion of foreign objects into receptacle |
| Ability to be controlled remotely by other RF devices through association |
| Electro-Mechanical pushbutton located at center of device for inclusion and ON/OFF operation |
| Blue LED at center illuminates to indicate ON/OFF status |
| Child lockout feature |
| Single button programming |
| All-ON/All-OFF inclusion |
| Panic mode |
| Patented indicator system alerts if receptacle is not set up in the network |
| Configurable power up state |
| Flammability Rated V-2 per UL94 |
