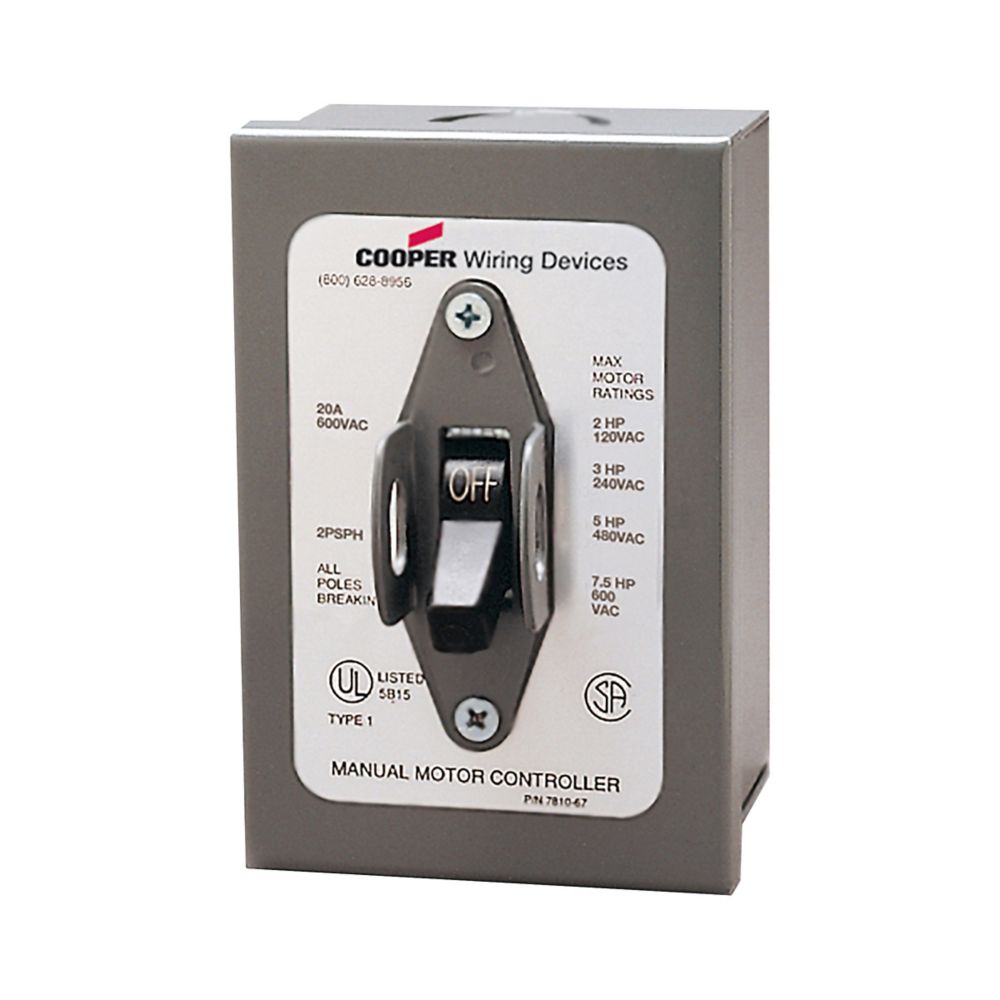

Eaton AH6808GDAC Manual Motor Controller Switch, 600 VAC, 20 A, 2/3/5/7-1/2 hp
AC Motor Starting Switches
543047
MFG #: AH6808GDAC
EATON
83.16000
/ ea
Industrial grade - manual motor controllers double-poles, 1-phase, 20/30 A side wired screw. Compact design provides extra wiring room for easy, fast installation. Easy-to-read electrical ratings on rugged steel mounting straps ensure accurate identification. Highly visible ''ON/OFF'' markings on large, rugged toggles make the switch easy-to operate and reduce the risk of errors. Cam and roll design provides dependable, trouble-free switch action. Distinct wire pockets and thick wall arc barriers prevent strands from straying. Robust, single-piece, moveable and stationary contact arms with large silver cadmium buttons limit heat build-up for excellent continuity and long life. Screw and clamp or box lug terminals to meet individual project requirements.
- Brochure URL - 11033_P9T0RLWKF4NO25ZG.pdf(Brochure URL)
- Brochure URL - ah-motor-controllers-and-disconnects-brochure.pdf(Brochure URL)
- Brochure URL - ID-BRO-v1-CWD_ManualContact_Broch.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_53dac4194915ef54b3ca3d5956461835d4fe13412219d30b1fb05fb2cc164f5e.pdf(Catalog URL)
- http://www.cooperwiringdevices.com(Seller Home Page URL)
- Spec Sheet 1 URL - EATON_AH27940G_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11033_7VB1OCJTHIA2GL63.pdf(Spec Sheet URL)
- Spec Sheet URL - AH6808GDAC(Spec Sheet URL)
- Spec Sheet URL - skuPage.AH6808GDAC.pdf(Spec Sheet URL)
- Applications
- Features
| Ind Facilities & Factories - Facility - Other |
| Motor control switches, swt/encl combos |
| 14 to 10 AWG allowable wire range |
| Totally enclosed body eliminates exposed contacts |
| Enclosures can be padlocked to conform to OSHA lockout requirements |
| Cam and roll design provides dependable, trouble-free switch action |
| Separate arc quenching chambers isolate each pole |
| Front terminals are designed for easy wiring |
