Appleton™

EGS 7150GSR 1-1/2 IN RT EMT CONN GR

Appleton™

SKU883693

MFGR #7150GSR

Your Cost: $7.23/ea

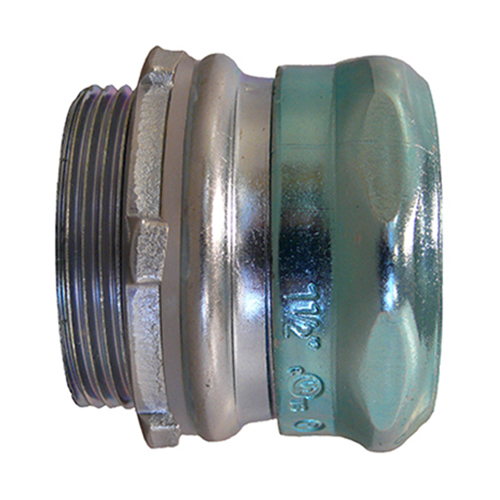

Connector, Raintight Compression Style for EMT Conduit, Trade Size 1.50 Inches, Steel Body and Nut, Green Nut

: Application
To ground and secure EMT Raceways to boxes and enclosures in wet locations
ARRA Compliant
N
Buy American Compliant
N
Catalog Number
7150GSR
Color
Metallic Body/Green Nut
Connection
Male NPS Thread
Country of Origin
IN
Currency
USD
Dimensions
2.31 in Dia x 2 in L
Environmental Conditions
Raintight
EU RoHS Indicator
U
Gross Weight Per Pack
0.4400 lb
Gross Weight per Pack Metric
0.21
Gross Weight UOM Metric
kg
Height
0.94 in
Height [Metric]
23.8760 mm
Insulation
None
Length
7.40 in
Length [Metric]
18.7960 cm
NEMA Rating
FB-1
Series
7000GSR
Size
1.5 IN in
Standard
UL Standard: 514B; UL Listed: E14815, E14895; CSA Standard: C22.2 No. 18.3, cUL Listed: E14815; CSA Certified: 028507; NEMA: FB-1
Standards
UL 514B, E14815, E14895, CSA C22.2 No. 18.3, 028507, cUL E14815, NEMA FB-1
Sub Brand
ETP
Type
EMT Non-Insulated
UNSPSC
39121434
UPC 11
68785587664
UPC 12
68785587664
Width
4.70 in
Width [Metric]
11.9380 cm
Stock Status
NORMALLY STOCKED
Brand
Appleton™
Manufacturer
Appleton
Finish
Zinc Electroplated
Material
Steel
Trade Size
1-1/2 in
: Catalog
Seller Home Page
Spec Sheet
: To ground and secure EMT Raceways to boxes and enclosures in wet locations
: UL Listed Raintight, No disassembly required, Concretetight

Zinc electroplated steel body and nut, silicone rubber internal sealing ring, EPDM rubber knockout sealing ring

InspectoRidge™ external visual inspection aid

No disassembly required

Threaded male NPS hub

Application	To ground and secure EMT Raceways to boxes and enclosures in wet locations
ARRA Compliant	N
Buy American Compliant	N
Catalog Number	7150GSR
Color	Metallic Body/Green Nut
Connection	Male NPS Thread
Country of Origin	IN
Currency	USD
Dimensions	2.31 in Dia x 2 in L
Environmental Conditions	Raintight
EU RoHS Indicator	U
Gross Weight Per Pack	0.4400 lb
Gross Weight per Pack Metric	0.21
Gross Weight UOM Metric	kg
Height	0.94 in
Height [Metric]	23.8760 mm
Insulation	None
Length	7.40 in
Length [Metric]	18.7960 cm
NEMA Rating	FB-1
Series	7000GSR
Size	1.5 IN in
Standard	UL Standard: 514B; UL Listed: E14815, E14895; CSA Standard: C22.2 No. 18.3, cUL Listed: E14815; CSA Certified: 028507; NEMA: FB-1
Standards	UL 514B, E14815, E14895, CSA C22.2 No. 18.3, 028507, cUL E14815, NEMA FB-1
Sub Brand	ETP
Type	EMT Non-Insulated
UNSPSC	39121434
UPC 11	68785587664
UPC 12	68785587664
Width	4.70 in
Width [Metric]	11.9380 cm
Stock Status	NORMALLY STOCKED
Brand	Appleton™
Manufacturer	Appleton
Finish	Zinc Electroplated
Material	Steel
Trade Size	1-1/2 in
