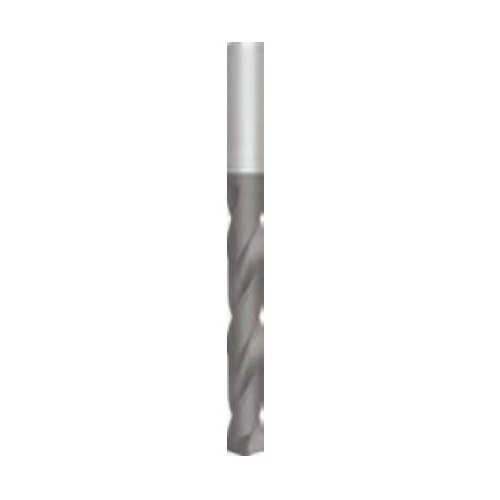

Dormer 7361229 Force X R454 Multi-Application Standard Length Jobber Length Drill Bit, I Drill - Letter, 0.272 in Drill - Decimal Inch, 140 deg Point, Carbide, TiAlN Coated
Custom_Product_Images_Illustration
Dormer 7361229 Force X R454 Multi-Application Standard Length Jobber Length Drill Bit, I Drill - Letter, 0.272 in Drill - Decimal Inch, 140 deg Point, Carbide, TiAlN Coated
SKU1424718
MFGR #7361229
$/ea
Dormer Jobber Length Drill Bit, Multi-Application Standard Length, Series: Force X R454, Imperial, I Drill - Letter, 0.272 in Drill - Decimal Inch, 91 mm Overall Length, 5XD Cutting Depth, 4 Flutes, CTW Flute, 53 mm Flute Length, 8 mm Dia x 36 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, TiAlN Coated, Black/Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened And Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed
Dormer Jobber Length Drill Bit, Multi-Application Standard Length, Series: Force X R454, Imperial, I Drill - Letter, 0.272 in Drill - Decimal Inch, 91 mm Overall Length, 5XD Cutting Depth, 4 Flutes, CTW Flute, 53 mm Flute Length, 8 mm Dia x 36 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, TiAlN Coated, Black/Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened And Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed
Alternate Catalog Number 7361229 Catalog Number 7361229 Color Black/Gray Cutting Depth 5XD Cutting Direction Right Hand Cutting Edge Material Carbide Drill Diameter Measurement System Imperial Flute Length 53 Flute Type CTW Item Group R454 Number of Flutes 4 Overall Length 91 Point Type 4-Facet/Self-Centering/Split Series Force X R454 Shank Size 8 mm Dia x 36 mm L Shank Type Straight Type Multi-Application Standard Length UPC 11 20760756751 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Finish TiAlN Coated Material Carbide Point Angle 140 Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate TiAlN coating increases wear resistance, improves tool life at high RPM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 7361229 |
| Catalog Number | 7361229 |
| Color | Black/Gray |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 53 |
| Flute Type | CTW |
| Item Group | R454 |
| Number of Flutes | 4 |
| Overall Length | 91 |
| Point Type | 4-Facet/Self-Centering/Split |
| Series | Force X R454 |
| Shank Size | 8 mm Dia x 36 mm L |
| Shank Type | Straight |
| Type | Multi-Application Standard Length |
| UPC 11 | 20760756751 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Finish | TiAlN Coated |
| Material | Carbide |
| Point Angle | 140 |
| Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate |
| TiAlN coating increases wear resistance, improves tool life at high RPM |
