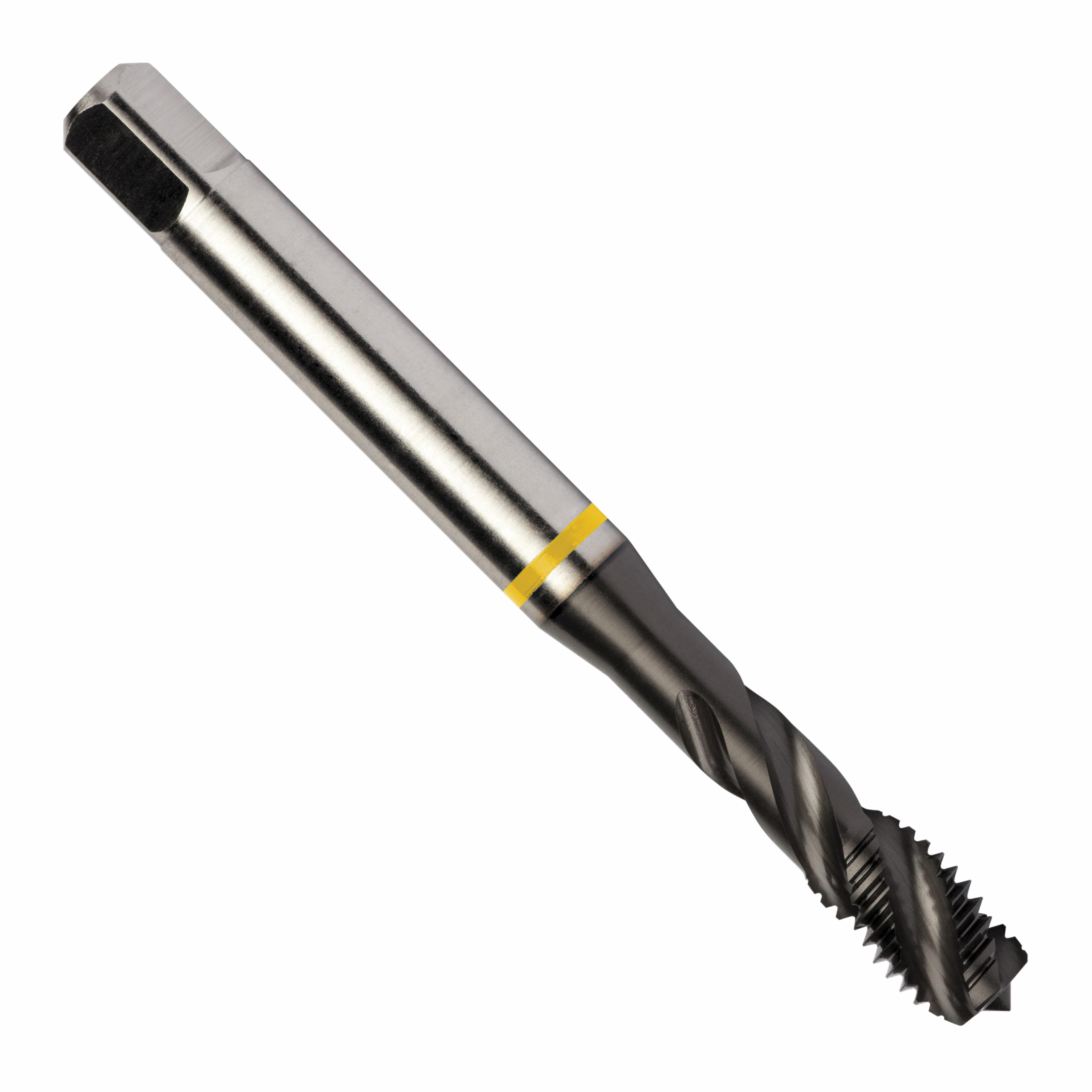

Dormer 7350542 E624 Spiral Flute Machine Tap, Right Hand Cutting, M20x2.5 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiAlN Coated, HSS-E
Custom_Product_Images_Illustration
Dormer 7350542 E624 Spiral Flute Machine Tap, Right Hand Cutting, M20x2.5 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiAlN Coated, HSS-E
SKU1424686
MFGR #7350542
$/ea
Dormer Spiral Flute Machine Tap, Series: E624, Measurement System: Metric, Coarse, M20x2.5, Semi-Bottoming Chamfer, 4 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting, 25 mm Thread Length, 140 mm Overall Length, 0.652 in Shank Dia, Right Hand Flute Direction, Low Alloy Steel Material Application
Dormer Spiral Flute Machine Tap, Series: E624, Measurement System: Metric, Coarse, M20x2.5, Semi-Bottoming Chamfer, 4 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting, 25 mm Thread Length, 140 mm Overall Length, 0.652 in Shank Dia, Right Hand Flute Direction, Low Alloy Steel Material Application
Alternate Catalog Number 7350542 Catalog Number 7350542 Class of Fit 6H Item Group E624 Measurement System Metric Overall Length 140 Series E624 Shank Diameter 0.652 Thread Length 25 Thread Standard Coarse UPC 11 20760753866 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Chamfer Type Semi-Bottoming Cutting Direction Right Hand Flute Direction Right Hand Material HSS-E Material Application Low Alloy Steel Number of Flutes 4 Thread Size M20x2.5 Premium HSCo powder metal substrate with TiAlN top coating combined with a special 40 deg spiral flute geometry prevents nesting and reduces the risk of re-cutting chips on reversal allowing taps to operate at higher speeds while providing improved thread quality
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 7350542 |
| Catalog Number | 7350542 |
| Class of Fit | 6H |
| Item Group | E624 |
| Measurement System | Metric |
| Overall Length | 140 |
| Series | E624 |
| Shank Diameter | 0.652 |
| Thread Length | 25 |
| Thread Standard | Coarse |
| UPC 11 | 20760753866 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material | HSS-E |
| Material Application | Low Alloy Steel |
| Number of Flutes | 4 |
| Thread Size | M20x2.5 |
| Premium HSCo powder metal substrate with TiAlN top coating combined with a special 40 deg spiral flute geometry prevents nesting and reduces the risk of re-cutting chips on reversal allowing taps to operate at higher speeds while providing improved thread quality |
