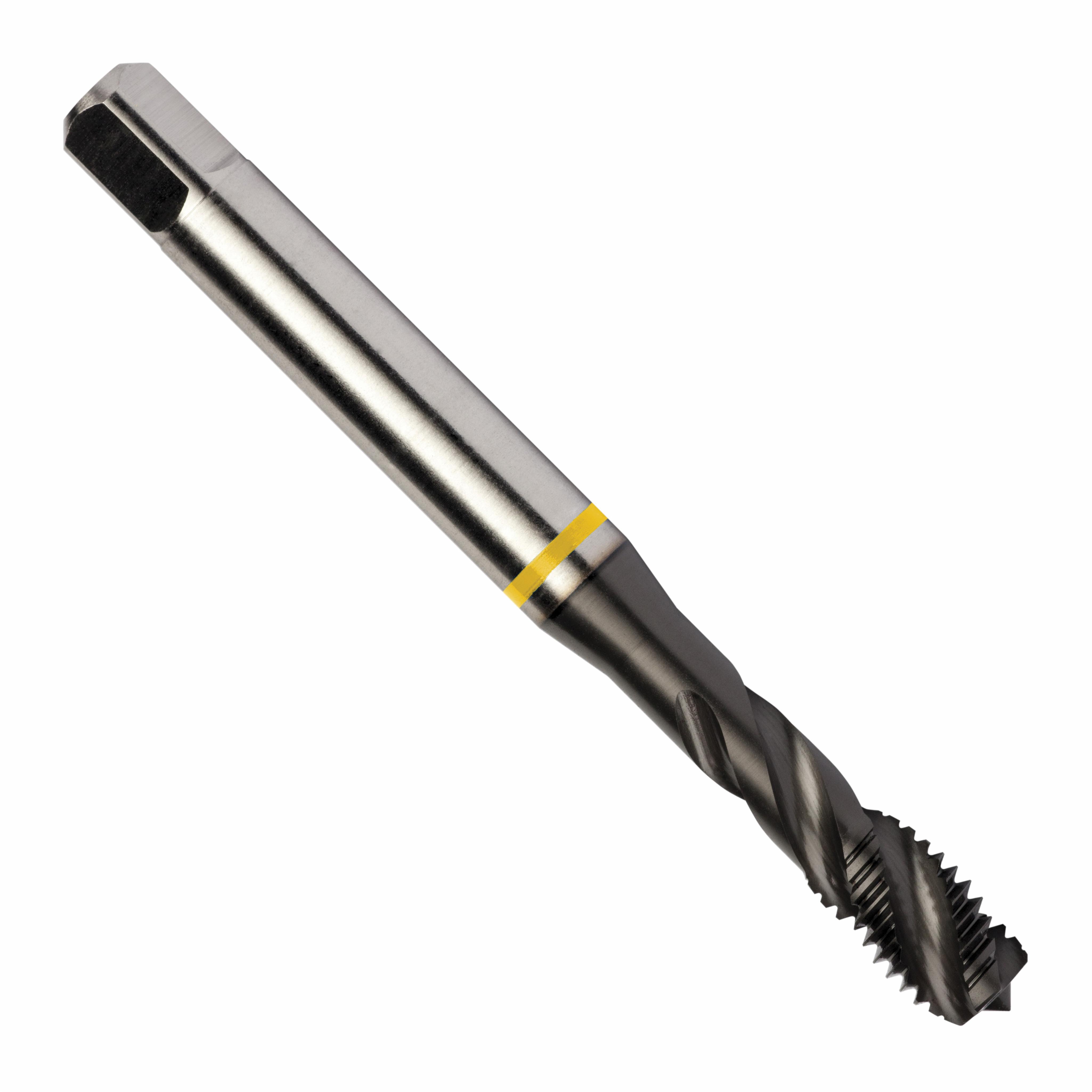

Dormer 7350517 E808 Dormer Spiral Flute Machine Tap With Yellow Shark, Right Hand Cutting, 7/16-14 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, HSS-E
Custom_Product_Images_Illustration
Dormer 7350517 E808 Dormer Spiral Flute Machine Tap With Yellow Shark, Right Hand Cutting, 7/16-14 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, HSS-E
SKU1424664
MFGR #7350517
Your Cost: $60.72/ea
List: Dormer Dormer Spiral Flute Machine Tap, Series: 206C, Measurement System: Imperial, UNC, 7/16-14, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiAlN Coated, Class of Fit: 2B, Right Hand Cutting, 0.591 in Thread Length, 3.937 in Overall Length, 0.323 in Shank Dia, Right Hand Flute Direction, Low Alloy Steel Material Application
Dormer Dormer Spiral Flute Machine Tap, Series: 206C, Measurement System: Imperial, UNC, 7/16-14, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiAlN Coated, Class of Fit: 2B, Right Hand Cutting, 0.591 in Thread Length, 3.937 in Overall Length, 0.323 in Shank Dia, Right Hand Flute Direction, Low Alloy Steel Material Application
Alternate Catalog Number 7350517 Catalog Number 7350517 Class of Fit 2B Item Group E808 Measurement System Imperial Overall Length 3.937 Series E808 Shank Diameter 0.323 Thread Length 0.591 Thread Standard UNC UPC 11 20760753613 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Chamfer Type Semi-Bottoming Cutting Direction Right Hand Flute Direction Right Hand Material HSS-E Material Application Low Alloy Steel Number of Flutes 3 Thread Size 7/16-14 HSCo powder metal substrate with TiAlN top coating combined with a special 40 deg spiral flute geometry prevents nesting and reduces the risk of re-cutting chips on reversal allowing taps to operate at higher speeds while providing improved thread quality
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 7350517 |
| Catalog Number | 7350517 |
| Class of Fit | 2B |
| Item Group | E808 |
| Measurement System | Imperial |
| Overall Length | 3.937 |
| Series | E808 |
| Shank Diameter | 0.323 |
| Thread Length | 0.591 |
| Thread Standard | UNC |
| UPC 11 | 20760753613 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material | HSS-E |
| Material Application | Low Alloy Steel |
| Number of Flutes | 3 |
| Thread Size | 7/16-14 |
| HSCo powder metal substrate with TiAlN top coating combined with a special 40 deg spiral flute geometry prevents nesting and reduces the risk of re-cutting chips on reversal allowing taps to operate at higher speeds while providing improved thread quality |
