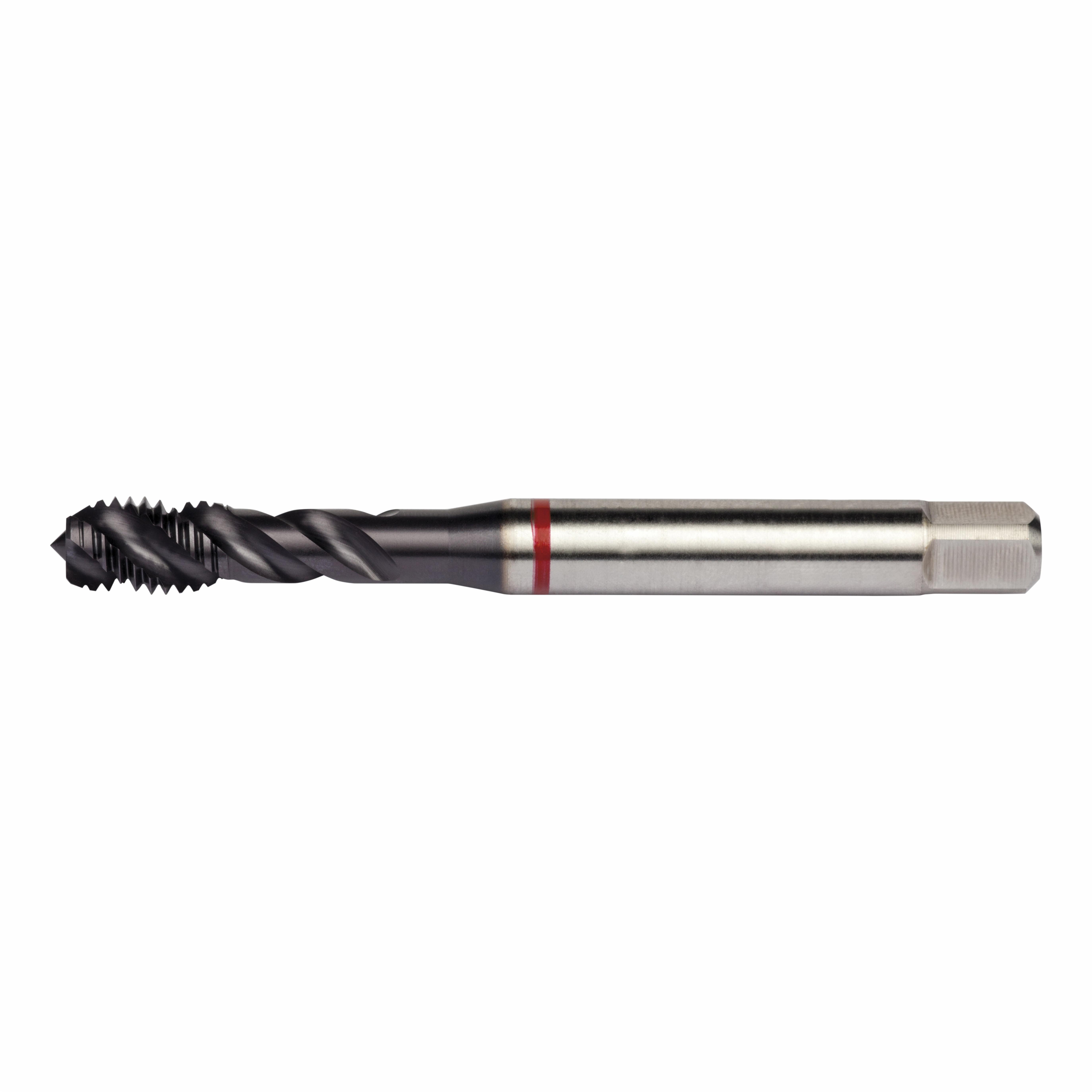

Dormer 7350468 E766 High Performance Spiral Flute Machine Tap, Right Hand Cutting, M14x1.5 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, HSS-E
Custom_Product_Images_Illustration
Dormer 7350468 E766 High Performance Spiral Flute Machine Tap, Right Hand Cutting, M14x1.5 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, HSS-E
SKU1424623
MFGR #7350468
Your Cost: $136.40/ea
List: Dormer Spiral Flute Machine Tap, High Performance, Series: E766, Measurement System: Metric, Fine Thread Standard, M14x1.5 Thread, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting Direction, 15 mm Thread Length, 100 mm Overall Length, 0.429 in Shank Diameter, Right Hand Flute Direction, Medium Alloy Steel Material Application
Dormer Spiral Flute Machine Tap, High Performance, Series: E766, Measurement System: Metric, Fine Thread Standard, M14x1.5 Thread, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting Direction, 15 mm Thread Length, 100 mm Overall Length, 0.429 in Shank Diameter, Right Hand Flute Direction, Medium Alloy Steel Material Application
Alternate Catalog Number 7350468 Catalog Number 7350468 Item Group E766 UPC 11 20760753125 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet The TiAlN top coating combined with a special 45 deg flute geometry and an additional edge treatment provides excellent performance and consistency in high production applications The back taper built into this design further facilitates chip evacuation and reduces torque when the tap reverses
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 7350468 |
| Catalog Number | 7350468 |
| Item Group | E766 |
| UPC 11 | 20760753125 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| The TiAlN top coating combined with a special 45 deg flute geometry and an additional edge treatment provides excellent performance and consistency in high production applications |
| The back taper built into this design further facilitates chip evacuation and reduces torque when the tap reverses |
