Dormer Pramet

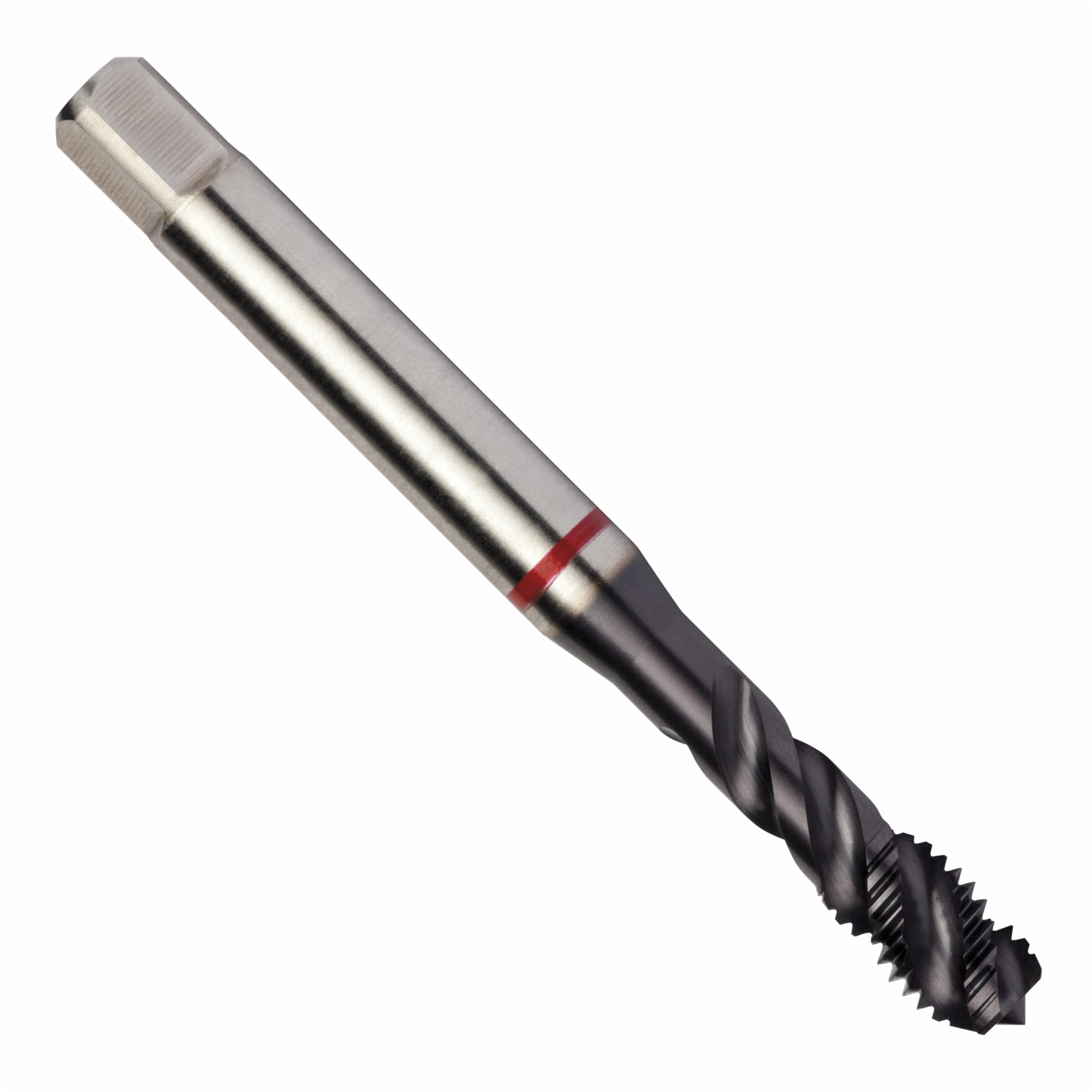

Dormer 7350459 E626 High Performance Spiral Flute Machine Tap, Right Hand Cutting, M12x1.75 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, HSS-E
Custom_Product_Images_Illustration
Dormer Pramet
Dormer 7350459 E626 High Performance Spiral Flute Machine Tap, Right Hand Cutting, M12x1.75 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, HSS-E
SKU1424614
MFGR #7350459
Your Cost: $109.97/ea
List: Dormer Spiral Flute Machine Tap, High Performance, Series: E626, Measurement System: Metric, Coarse, M12x1.75, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting, 18 mm Thread Length, 110 mm Overall Length, 0.367 in Shank Dia, Right Hand Flute Direction, Medium Alloy Steel Material Application
Dormer Spiral Flute Machine Tap, High Performance, Series: E626, Measurement System: Metric, Coarse, M12x1.75, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting, 18 mm Thread Length, 110 mm Overall Length, 0.367 in Shank Dia, Right Hand Flute Direction, Medium Alloy Steel Material Application
Alternate Catalog Number 7350459 Catalog Number 7350459 Class of Fit 6H Item Group E626 Measurement System Metric Overall Length 110 Series E626 Shank Diameter 0.367 Thread Length 18 Thread Standard Coarse Type High Performance UPC 11 20760753033 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Chamfer Type Semi-Bottoming Cutting Direction Right Hand Flute Direction Right Hand Material HSS-E Material Application Medium Alloy Steel Number of Flutes 3 Thread Size M12x1.75 The TiAlN top coating combined with a special 45 deg flute geometry and an additional edge treatment provides excellent performance and consistency in high production applications The back taper built into this design further facilitates chip evacuation and reduces torque when the tap reverses
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 7350459 |
| Catalog Number | 7350459 |
| Class of Fit | 6H |
| Item Group | E626 |
| Measurement System | Metric |
| Overall Length | 110 |
| Series | E626 |
| Shank Diameter | 0.367 |
| Thread Length | 18 |
| Thread Standard | Coarse |
| Type | High Performance |
| UPC 11 | 20760753033 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material | HSS-E |
| Material Application | Medium Alloy Steel |
| Number of Flutes | 3 |
| Thread Size | M12x1.75 |
| The TiAlN top coating combined with a special 45 deg flute geometry and an additional edge treatment provides excellent performance and consistency in high production applications |
| The back taper built into this design further facilitates chip evacuation and reduces torque when the tap reverses |
