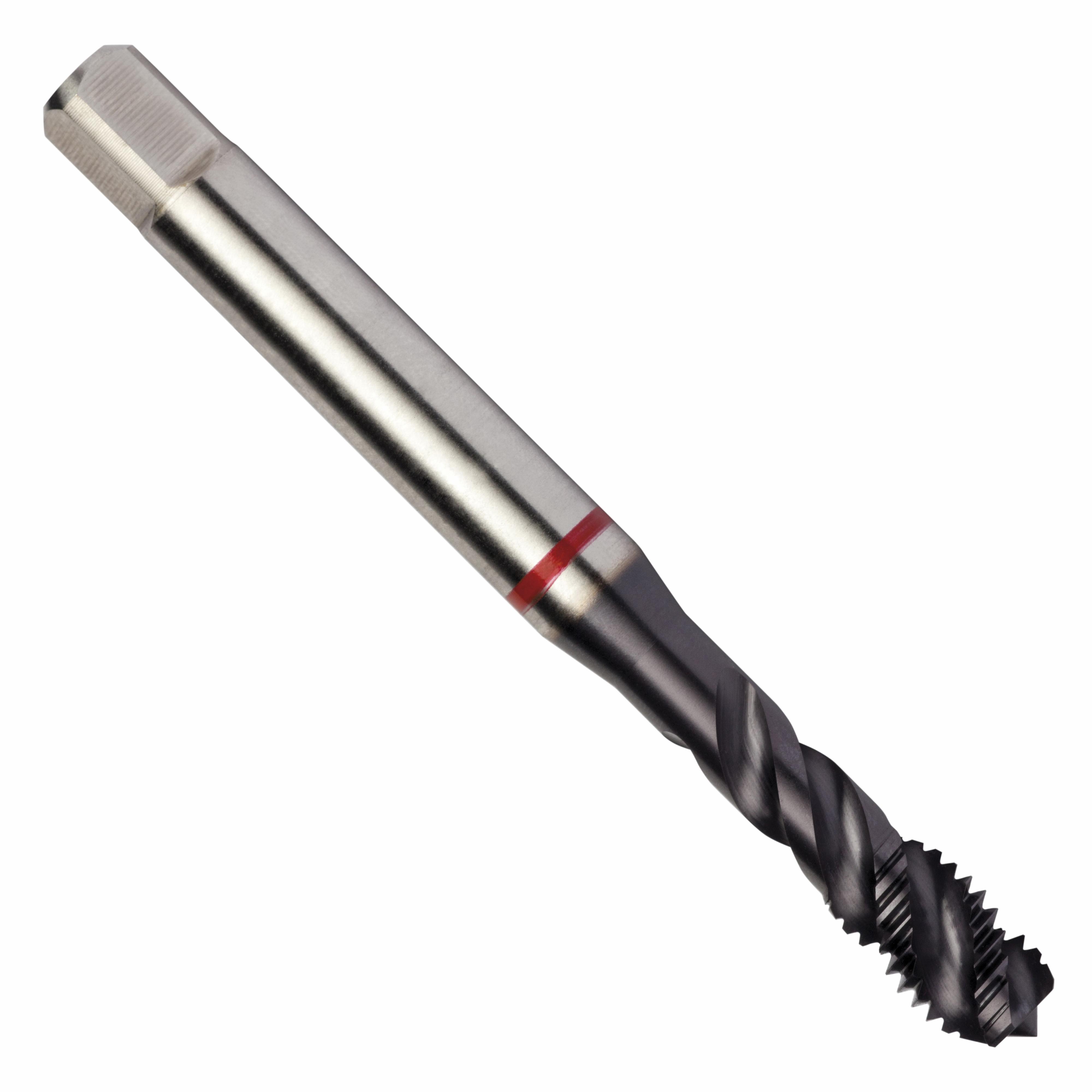

Dormer 7350448 E910 High Performance Spiral Flute Machine Tap, Right Hand Cutting, 1/2-20 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, HSS-E
Spiral Flute Taps
1424603
MFG #: 7350448
Dormer Pramet
70.42000
/ ea
Dormer Spiral Flute Machine Tap, High Performance, Series: E910, Measurement System: Imperial, UNF, 1/2-20, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiAlN Coated, Class of Fit: 2B, Right Hand Cutting, 0.709 in Thread Length, 3.937 in Overall Length, 0.367 in Shank Dia, Right Hand Flute Direction, Medium Alloy Steel Material Application
- Features
| The TiAlN top coating combined with a special 45 deg flute geometry and an additional edge treatment provides excellent performance and consistency in high production applications |
| The back taper built into this design further facilitates chip evacuation and reduces torque when the tap reverses |
