Dormer Pramet

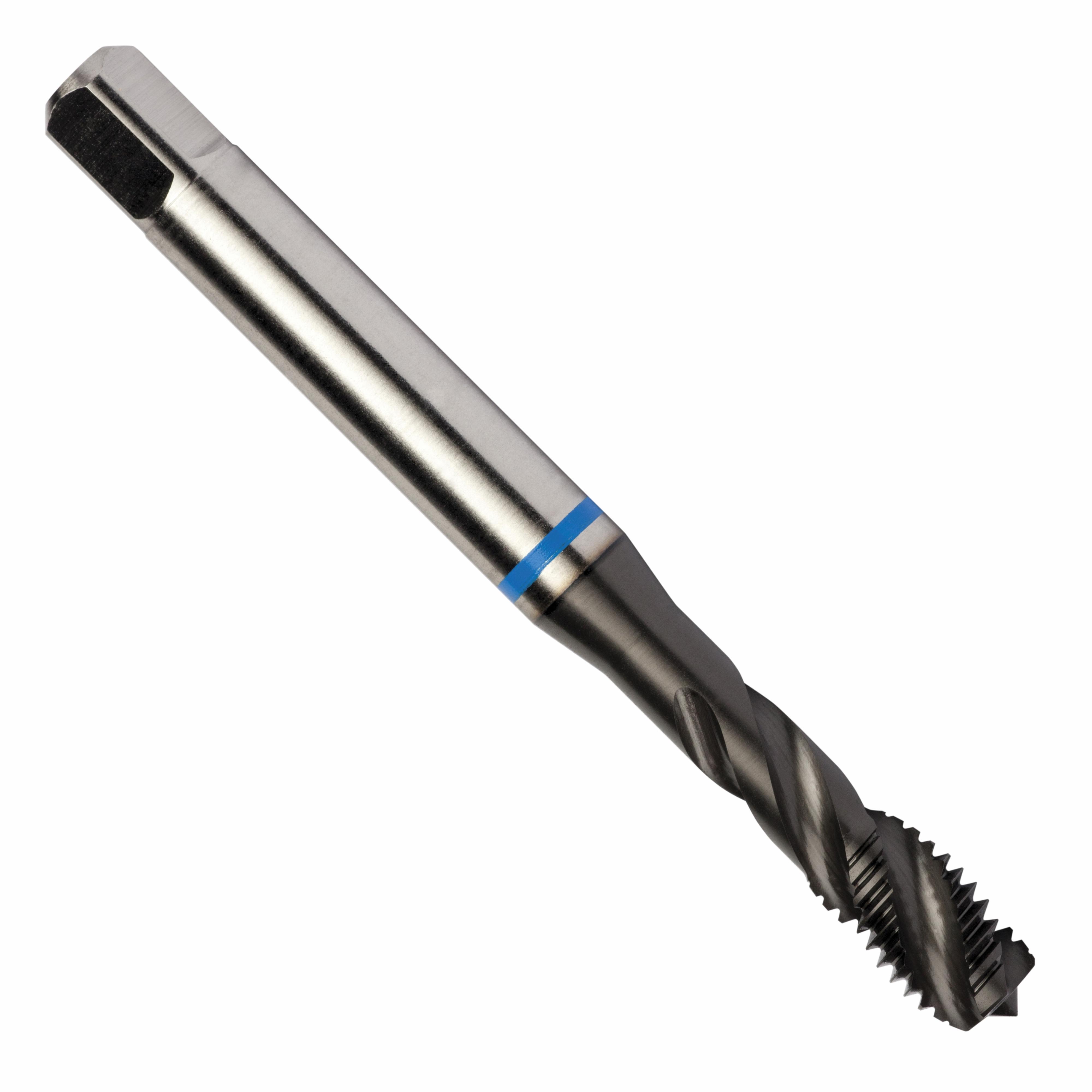

Dormer 7350384 E628 Spiral Flute Machine Tap, Right Hand Cutting, M24x3 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiAlN Coated, HSS-E
Custom_Product_Images_Illustration
Dormer Pramet
Dormer 7350384 E628 Spiral Flute Machine Tap, Right Hand Cutting, M24x3 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiAlN Coated, HSS-E
SKU1424545
MFGR #7350384
Your Cost: $485.30/ea
List: Dormer Spiral Flute Machine Tap, Series: E628, Measurement System: Metric, Coarse, M24x3, Semi-Bottoming Chamfer, 4 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting, 30 mm Thread Length, 160 mm Overall Length, 0.76 in Shank Dia, Right Hand Flute Direction, Stainless Steel Material Application
Dormer Spiral Flute Machine Tap, Series: E628, Measurement System: Metric, Coarse, M24x3, Semi-Bottoming Chamfer, 4 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting, 30 mm Thread Length, 160 mm Overall Length, 0.76 in Shank Dia, Right Hand Flute Direction, Stainless Steel Material Application
Alternate Catalog Number 7350384 Catalog Number 7350384 Class of Fit 6H Item Group E628 Measurement System Metric Overall Length 160 Series E628 Shank Diameter 0.76 Thread Length 30 Thread Standard Coarse UPC 11 20760752289 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Chamfer Type Semi-Bottoming Cutting Direction Right Hand Flute Direction Right Hand Material HSS-E Material Application Stainless Steel Number of Flutes 4 Thread Size M24x3 Premium HSCo powder metal substrate with Super-B (TiAlN+WC/C) coating combined with an additional edge treatment and a 40 deg flute angle facilitates better chip evacuation offering improved thread quality and longer tool life
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 7350384 |
| Catalog Number | 7350384 |
| Class of Fit | 6H |
| Item Group | E628 |
| Measurement System | Metric |
| Overall Length | 160 |
| Series | E628 |
| Shank Diameter | 0.76 |
| Thread Length | 30 |
| Thread Standard | Coarse |
| UPC 11 | 20760752289 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material | HSS-E |
| Material Application | Stainless Steel |
| Number of Flutes | 4 |
| Thread Size | M24x3 |
| Premium HSCo powder metal substrate with Super-B (TiAlN+WC/C) coating combined with an additional edge treatment and a 40 deg flute angle facilitates better chip evacuation offering improved thread quality and longer tool life |
