Dormer Pramet

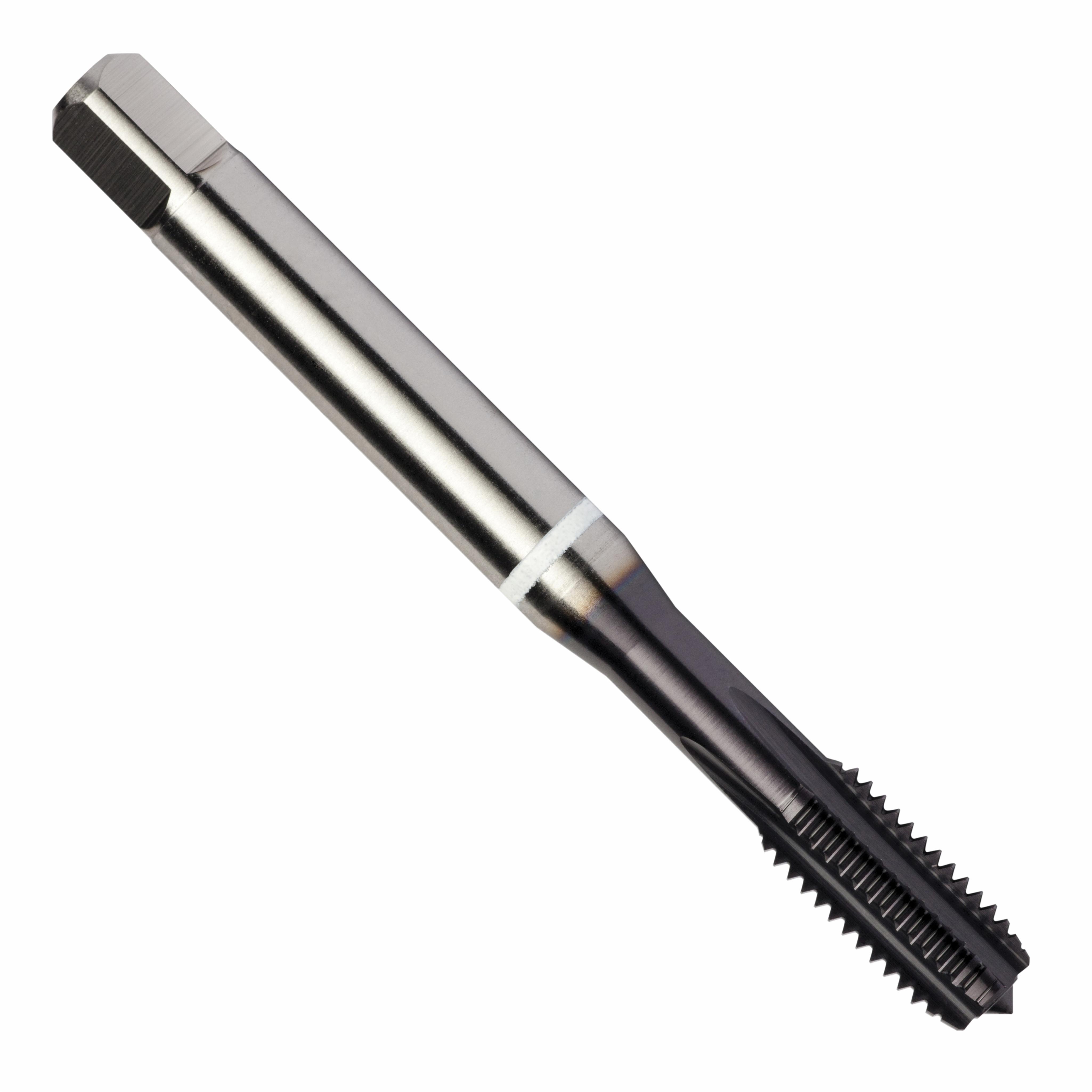

Dormer 7350257 E630 Straight Flute Machine Tap With White Shark, Coarse, 4 Flutes, 6HX Class of Fit, Right Hand, Semi-Bottoming Chamfer, HSS-E-PM, TiAlN Coated
Custom_Product_Images_Illustration
Dormer Pramet
Dormer 7350257 E630 Straight Flute Machine Tap With White Shark, Coarse, 4 Flutes, 6HX Class of Fit, Right Hand, Semi-Bottoming Chamfer, HSS-E-PM, TiAlN Coated
SKU1065262
MFGR #7350257
Your Cost: $64.74/ea
List: Dormer Straight Flute Machine Tap, Series: E630, Measurement System: Metric, Coarse Thread, M20x2.5 Thread, Semi-Bottoming Chamfer, 4 Flutes, HSS-E-PM, TiAlN Coated, Class of Fit: 6HX, Right Hand Cutting, 30 mm Thread Length, 140 mm Overall Length, 0.652 in Shank Dia, Material Application: Cast Iron, Copper, Aluminum Magnesium and Synthetic Materials
Dormer Straight Flute Machine Tap, Series: E630, Measurement System: Metric, Coarse Thread, M20x2.5 Thread, Semi-Bottoming Chamfer, 4 Flutes, HSS-E-PM, TiAlN Coated, Class of Fit: 6HX, Right Hand Cutting, 30 mm Thread Length, 140 mm Overall Length, 0.652 in Shank Dia, Material Application: Cast Iron, Copper, Aluminum Magnesium and Synthetic Materials
Catalog Number 7350257 Class of Fit 6HX Finish|Coating TiAlN Coated Measurement System Metric Overall Length 140 mm Series E630 Shank Diameter 0.652 in Standards DIN Rated, ANSI Specified Thread Length 30 mm Thread Standard Coarse Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Chamfer Type Semi-Bottoming Cutting Direction Right Hand Material HSS-E-PM Material Application Cast Iron, Copper, Aluminum Magnesium and Synthetic Materials Number of Flutes 4 Thread Size M20x2.5 HSCo-XP is a cobalt high speed steel which has been produced using powder metallurgy technology High speed steel produced by this method exhibits superior toughness and grindability Premium HSCo powder metal substrate with TiAlN top coating combine to offer superior abrasion resistance, higher operating speeds, improved thread quality, reduced cycle times and longer tool life
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 7350257 |
| Class of Fit | 6HX |
| Finish|Coating | TiAlN Coated |
| Measurement System | Metric |
| Overall Length | 140 mm |
| Series | E630 |
| Shank Diameter | 0.652 in |
| Standards | DIN Rated, ANSI Specified |
| Thread Length | 30 mm |
| Thread Standard | Coarse |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Material | HSS-E-PM |
| Material Application | Cast Iron, Copper, Aluminum Magnesium and Synthetic Materials |
| Number of Flutes | 4 |
| Thread Size | M20x2.5 |
| HSCo-XP is a cobalt high speed steel which has been produced using powder metallurgy technology |
| High speed steel produced by this method exhibits superior toughness and grindability |
| Premium HSCo powder metal substrate with TiAlN top coating combine to offer superior abrasion resistance, higher operating speeds, improved thread quality, reduced cycle times and longer tool life |
