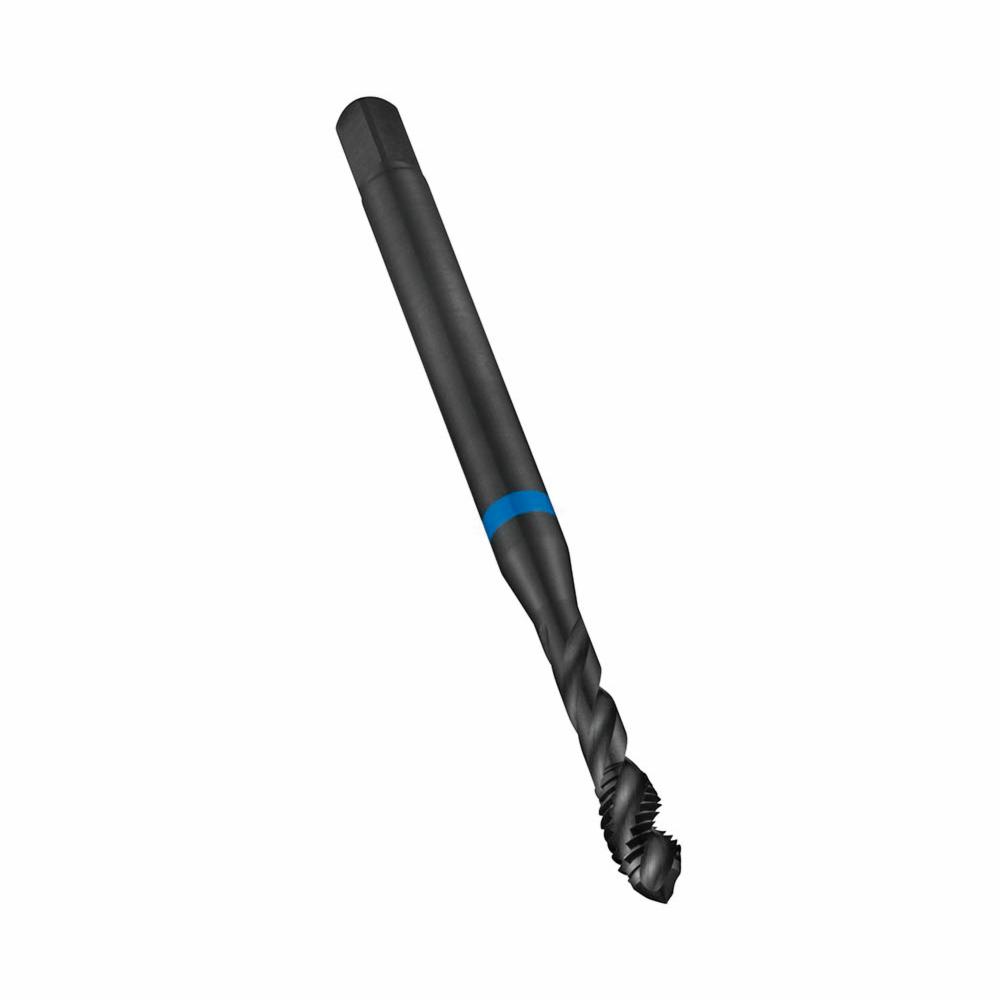

Dormer 6305806 E238 Dormer Spiral Flute Machine Tap With Blue Shark, Right Hand Cutting, M3x0.5 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Steam Tempered, HSS-E
Custom_Product_Images_Illustration
Dormer 6305806 E238 Dormer Spiral Flute Machine Tap With Blue Shark, Right Hand Cutting, M3x0.5 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Steam Tempered, HSS-E
SKU1422339
MFGR #6305806
Your Cost: $35.07/ea
List: Dormer Dormer Spiral Flute Machine Tap, Series: 452, Measurement System: Metric, Coarse, M3x0.5, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, Steam Tempered, Class of Fit: 6H, Right Hand Cutting, 6 mm Thread Length, 56 mm Overall Length, 3.5 mm Shank Dia, Right Hand Flute Direction, Stainless Steel Material Application
Dormer Dormer Spiral Flute Machine Tap, Series: 452, Measurement System: Metric, Coarse, M3x0.5, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, Steam Tempered, Class of Fit: 6H, Right Hand Cutting, 6 mm Thread Length, 56 mm Overall Length, 3.5 mm Shank Dia, Right Hand Flute Direction, Stainless Steel Material Application
Alternate Catalog Number 46305806 Catalog Number 6305806 Class of Fit 6H Item Group E238 Measurement System Metric Overall Length 56 Series E238 Shank Diameter 3.5 Thread Length 6 Thread Standard Coarse UPC 11 20760664117 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Chamfer Type Semi-Bottoming Cutting Direction Right Hand Flute Direction Right Hand Material HSS-E Material Application Stainless Steel Number of Flutes 3 Thread Size M3x0.5 Optimum combination of material and geometry ensures low material adhesion, resulting in increased performance and tool life Tap geometry allows adequate flute space for rapid and smooth chip evacuation, meaning negligible chip congestion and therefore, a continuous production process
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 46305806 |
| Catalog Number | 6305806 |
| Class of Fit | 6H |
| Item Group | E238 |
| Measurement System | Metric |
| Overall Length | 56 |
| Series | E238 |
| Shank Diameter | 3.5 |
| Thread Length | 6 |
| Thread Standard | Coarse |
| UPC 11 | 20760664117 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material | HSS-E |
| Material Application | Stainless Steel |
| Number of Flutes | 3 |
| Thread Size | M3x0.5 |
| Optimum combination of material and geometry ensures low material adhesion, resulting in increased performance and tool life |
| Tap geometry allows adequate flute space for rapid and smooth chip evacuation, meaning negligible chip congestion and therefore, a continuous production process |
