Dormer Pramet

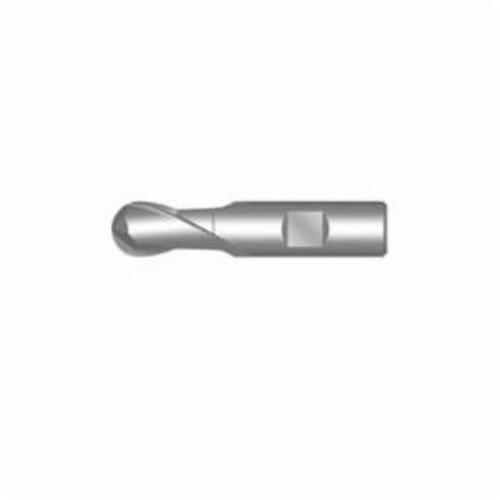

Dormer 5985033 C500 Type N Ball Nose Extra Short Length Single End End Mill, 18 mm Dia Cutter, 19 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 79 mm OAL, Bright
Custom_Product_Images_Illustration
Dormer Pramet
Dormer 5985033 C500 Type N Ball Nose Extra Short Length Single End End Mill, 18 mm Dia Cutter, 19 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 79 mm OAL, Bright
SKU1435907
MFGR #5985033
Your Cost: $138.00/ea
List: Dormer End Mill, Type N Ball Nose Extra Short Length Single End, Series: C500, 18 mm Diameter Cutter, 79 mm Overall Length, 19 mm Length of Cut, 2 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, Bright
Dormer End Mill, Type N Ball Nose Extra Short Length Single End, Series: C500, 18 mm Diameter Cutter, 79 mm Overall Length, 19 mm Length of Cut, 2 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, Bright
Alternate Catalog Number 0073186 Catalog Number 5985033 Cutting Direction Right Hand Flute Type Spiral Helix Angle 30 Item Group C500 Material HSS-E Series C500 Shank Type Weld-On Flat Type Type N Ball Nose Extra Short Length Single End UPC 11 20760073186 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Cutter Diameter 18 Finish Bright Length of Cut 19 Number of Flutes 2 Overall Length 79 Shank Diameter 16 20 Lifecycle Applicable materials are magnetic soft steel, structural, case carburizing steel, cast iron, copper, aluminum and titanium
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 0073186 |
| Catalog Number | 5985033 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Helix Angle | 30 |
| Item Group | C500 |
| Material | HSS-E |
| Series | C500 |
| Shank Type | Weld-On Flat |
| Type | Type N Ball Nose Extra Short Length Single End |
| UPC 11 | 20760073186 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Cutter Diameter | 18 |
| Finish | Bright |
| Length of Cut | 19 |
| Number of Flutes | 2 |
| Overall Length | 79 |
| Shank Diameter | 16 |
| 20 Lifecycle |
| Applicable materials are magnetic soft steel, structural, case carburizing steel, cast iron, copper, aluminum and titanium |
