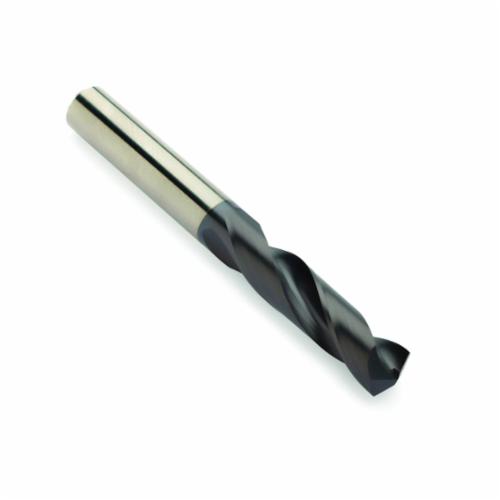

Dormer 5980350 R458 Multi-Application Short Length Drill Bit, 6.8 mm Drill - Metric, 0.2677 in Drill - Decimal Inch, Carbide, TiAlN Coated
Custom_Product_Images_Illustration
Dormer 5980350 R458 Multi-Application Short Length Drill Bit, 6.8 mm Drill - Metric, 0.2677 in Drill - Decimal Inch, Carbide, TiAlN Coated
SKU1439898
MFGR #5980350
Your Cost: $103.37/ea
Dormer Short Length Drill Bit, Multi-Application, Series: R458, Metric/Imperial, 6.8 mm Drill - Metric, 0.2677 in Drill - Decimal Inch, 79 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 34 mm Flute Length, 8 mm Shank, Straight Shank, 140 deg Point, MP-X/Self Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiAlN Coated, Black Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed
Dormer Short Length Drill Bit, Multi-Application, Series: R458, Metric/Imperial, 6.8 mm Drill - Metric, 0.2677 in Drill - Decimal Inch, 79 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 34 mm Flute Length, 8 mm Shank, Straight Shank, 140 deg Point, MP-X/Self Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiAlN Coated, Black Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed
Alternate Catalog Number 0615454 Catalog Number 5980350 Color Black Gray Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Carbide Drill Diameter Measurement System Imperial/Metric Flute Length 34 Flute Type Spiral Item Group R458 Number of Flutes 2 Overall Length 79 Point Angle 140 Point Type MP-X/Self Centering/Split Series R458 Shank Size 8 Shank Type Straight Type Multi-Application UPC 11 20760615454 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Finish TiAlN Coated Material Carbide Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials Coolant channels through the tool provide effective coolant delivery, reducing the temperature in the cutting zone and assisting chip evacuation, enabeling incresaed tool life at accelerated cutting data
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 0615454 |
| Catalog Number | 5980350 |
| Color | Black Gray |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 34 |
| Flute Type | Spiral |
| Item Group | R458 |
| Number of Flutes | 2 |
| Overall Length | 79 |
| Point Angle | 140 |
| Point Type | MP-X/Self Centering/Split |
| Series | R458 |
| Shank Size | 8 |
| Shank Type | Straight |
| Type | Multi-Application |
| UPC 11 | 20760615454 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Finish | TiAlN Coated |
| Material | Carbide |
| Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials |
| Coolant channels through the tool provide effective coolant delivery, reducing the temperature in the cutting zone and assisting chip evacuation, enabeling incresaed tool life at accelerated cutting data |
