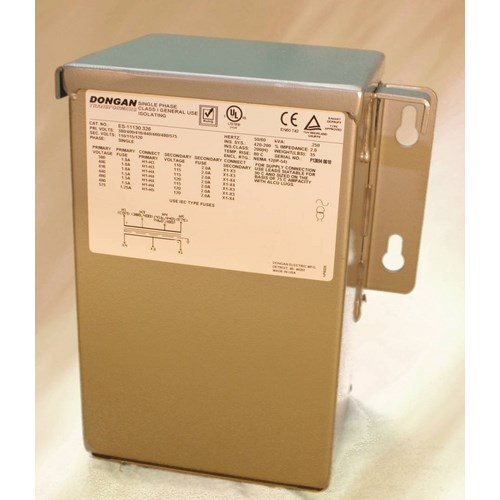

Dongan 85-1455SH 5kVA 240X480 120/2
SKU420111
MFGR #85-1455SH
Your Cost: $1,087.23/ea
List: Dongan; Isolation Transformer; General Purpose, Encapsulated, Dry-Type, Double Wound; KVA Rating: 5 KVA; Primary Voltage: 240 X 480 VAC; Secondary Voltage: 120/240 VAC; Frequency Rating: 60 HZ; Phase: 1 PH; Maximum Amperage Rating: 20.8/10.4 AMP Primary Maximum, 41.6/20.8 AMP Secondary Maximum; Insulation: UL Class 180 DEG C Insulation System; Mounting: Wall; Width: 8.25 IN; Height: 15.25 IN; Number Of Taps: 4; Temperature Rise: 115 DEG C Temperature Rise At A Maximum Ambient Of 40 DEG C; Depth: 7.87 IN; Tap Configuration: 2 - 2-1/2 PCT FCAN, 2 - 2-1/2 PCT FCBN; Encapsulated Material: Epoxy-Silica; Winding: Copper
Dongan; Isolation Transformer; General Purpose, Encapsulated, Dry-Type, Double Wound; KVA Rating: 5 KVA; Primary Voltage: 240 X 480 VAC; Secondary Voltage: 120/240 VAC; Frequency Rating: 60 HZ; Phase: 1 PH; Maximum Amperage Rating: 20.8/10.4 AMP Primary Maximum, 41.6/20.8 AMP Secondary Maximum; Insulation: UL Class 180 DEG C Insulation System; Mounting: Wall; Width: 8.25 IN; Height: 15.25 IN; Number Of Taps: 4; Temperature Rise: 115 DEG C Temperature Rise At A Maximum Ambient Of 40 DEG C; Depth: 7.87 IN; Tap Configuration: 2 - 2-1/2 PCT FCAN, 2 - 2-1/2 PCT FCBN; Encapsulated Material: Epoxy-Silica; Winding: Copper
Catalog Number 85-1455SH Country of Origin USA Gross Weight Per Pack 89.0000 lb UNSPSC 39121027 UPC 11 78249085455 UPC 12 78249085455 Stock Status NONSTOCK Brand Dongan Manufacturer Dongan Electric Features: C/US UL Listed, File E3210, Electrostatic Shield Between Primary And Secondary Windings Provides Cleaner Output Voltage And Helps To Reduce Spikes And Transients; Epoxy-Silica Encapsulatedecore And Coil Provides A Transformer Particularly Well Suited For Harsh Commercial And Industrial Applications; Copper Windings And Copper Lead Wire Terminations Used Throughout; UL Class 180 ° C Insulation System With 115 ° C Temperature Rise At A Maximum Ambient Of 40 ° C; NEMA-3R, Wall Mount Enclosure Suitable For Indoor Or Outdoor Use; May Be Used In Banks Of 2 Or 3 Units For Standard Three Phase Voltages And Nonstandard, Open Delta Autotransformer Applications; Multiple Knockouts Provide Convenient Conduit Entry And Exit Locations Through The Front And Bottom Access Wiring Compartment Covers; Ground Studs Provided For Bonding Compatibility With Both Metalli
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 85-1455SH |
| Country of Origin | USA |
| Gross Weight Per Pack | 89.0000 lb |
| UNSPSC | 39121027 |
| UPC 11 | 78249085455 |
| UPC 12 | 78249085455 |
| Stock Status | NONSTOCK |
| Brand | Dongan |
| Manufacturer | Dongan Electric |
| Features: C/US UL Listed, File E3210, Electrostatic Shield Between Primary And Secondary Windings Provides Cleaner Output Voltage And Helps To Reduce Spikes And Transients; Epoxy-Silica Encapsulatedecore And Coil Provides A Transformer Particularly Well Suited For Harsh Commercial And Industrial Applications; Copper Windings And Copper Lead Wire Terminations Used Throughout; UL Class 180 ° C Insulation System With 115 ° C Temperature Rise At A Maximum Ambient Of 40 ° C; NEMA-3R, Wall Mount Enclosure Suitable For Indoor Or Outdoor Use; May Be Used In Banks Of 2 Or 3 Units For Standard Three Phase Voltages And Nonstandard, Open Delta Autotransformer Applications; Multiple Knockouts Provide Convenient Conduit Entry And Exit Locations Through The Front And Bottom Access Wiring Compartment Covers; Ground Studs Provided For Bonding Compatibility With Both Metalli |
