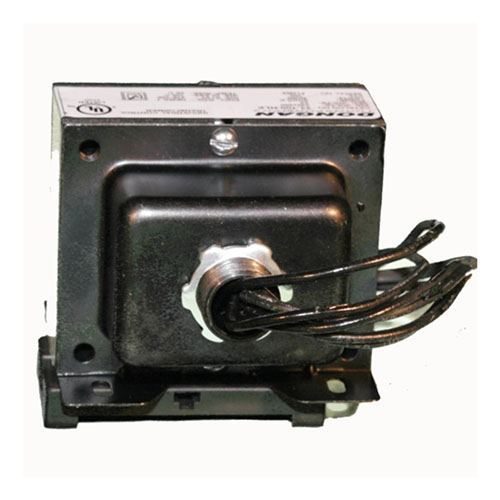

Dongan 33-100-HLK 33 Series Control Transformer, 240/480 VAC Primary, 24 VAC Secondary, 0.1 kVA, 50/60 Hz, 1 Phase
Custom_Product_Images_Illustration
Dongan 33-100-HLK 33 Series Control Transformer, 240/480 VAC Primary, 24 VAC Secondary, 0.1 kVA, 50/60 Hz, 1 Phase
SKUPDW~50287
MFGR #33-100-HLK
Price Not Available
Series 33 Control Transformers are designed with a NEMA Type 1, indoor type enclosure and are fitted with 8 in leads exiting through a 1/2 in chase nipple. Dual mounting provisions are provided for both foot mount or direct knockout mount in point of use applications. This unique mounting feature conveniently locates all leads within enclosures or handy boxes. The 33 Series Transformers are normal reactance, isolation type designs. Typical applications include voltage reduction for solenoids, magnetic switches, control valves, as well as many other HVAC applications.
Series 33 Control Transformers are designed with a NEMA Type 1, indoor type enclosure and are fitted with 8 in leads exiting through a 1/2 in chase nipple. Dual mounting provisions are provided for both foot mount or direct knockout mount in point of use applications. This unique mounting feature conveniently locates all leads within enclosures or handy boxes. The 33 Series Transformers are normal reactance, isolation type designs. Typical applications include voltage reduction for solenoids, magnetic switches, control valves, as well as many other HVAC applications.
Catalog Number 33-100-HLK Country of Origin USA Dimensions 3.63 in H x 3.38 in W x 2.81 in D Enclosure Type NEMA 1 Gross Weight Per Pack 4.0000 lb Maximum Amperage Rating 0.41/0.21/4.16 A Series 33 Series Standards UL Listed, cUL Listed, RoHS Complaint UNSPSC 39121026 UPC 11 78249033144 Stock Status NONSTOCK Brand Dongan Manufacturer Dongan Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 0.1 kVA Primary Voltage 240/480 VAC Secondary Voltage 24 VAC industrial controls Available with manually resettable circuit breakers Dual mounting capability NEMA type 1, indoor enclosure 0.41/0.21 A (primary), 4.16 A (secondary) 2.13 x 2.5 in bolt hole distance, 0.188 x 0.375 in bolt hole
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 33-100-HLK |
| Country of Origin | USA |
| Dimensions | 3.63 in H x 3.38 in W x 2.81 in D |
| Enclosure Type | NEMA 1 |
| Gross Weight Per Pack | 4.0000 lb |
| Maximum Amperage Rating | 0.41/0.21/4.16 A |
| Series | 33 Series |
| Standards | UL Listed, cUL Listed, RoHS Complaint |
| UNSPSC | 39121026 |
| UPC 11 | 78249033144 |
| Stock Status | NONSTOCK |
| Brand | Dongan |
| Manufacturer | Dongan Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 0.1 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 24 VAC |
| industrial controls |
| Available with manually resettable circuit breakers |
| Dual mounting capability |
| NEMA type 1, indoor enclosure |
| 0.41/0.21 A (primary), 4.16 A (secondary) |
| 2.13 x 2.5 in bolt hole distance, 0.188 x 0.375 in bolt hole |
