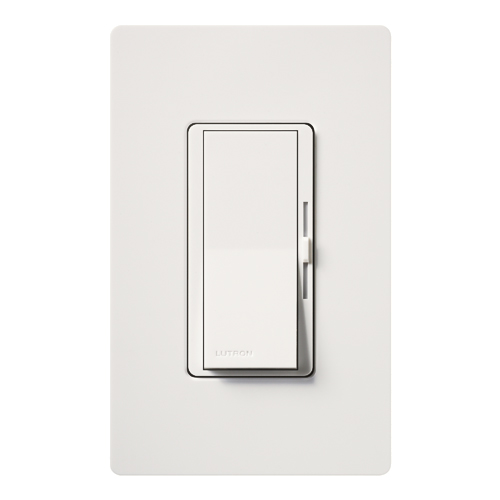

Diva® DVELV-300PH-WH Electronic Low Voltage Dimmer With Night Light, 120 VAC, 1 Pole, On/Off Mode, White
Diva® DVELV-300PH-WH Electronic Low Voltage Dimmer With Night Light, 120 VAC, 1 Pole, On/Off Mode, White
SKU315935
MFGR #DVELV-300PH-WH
Your Cost: $123.60/ea
Diva® Low Voltage Dimmer, Electronic, 120 VAC, 300 W, 60 Hz, 1 Pole, LED Lamp, Preset Start, Operation Mode: On/Off, Paddle, Wall Box Mount, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 0.3 in D
Diva® Low Voltage Dimmer, Electronic, 120 VAC, 300 W, 60 Hz, 1 Pole, LED Lamp, Preset Start, Operation Mode: On/Off, Paddle, Wall Box Mount, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 0.3 in D
Actuator Paddle switch Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number DVELV-300PH-WH Connection Wire Leads Connection Type Wire Leads Control Large Paddle/Linear Slide Country of Origin US Currency USD Dimensions 4.69 in H x 2.94 in W x 0.3 in D Enclosure Plastic EU RoHS Indicator N Face Material Metal;Plastic Frequency Rating 60 Hz Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Height 2.50 in Height [Metric] 6.3500 cm Insulation Plastic Length 6.10 in Length [Metric] 15.4940 cm Material Metal/Plastic Mounting Wallbox Number Of Poles 1 Operating Temperature 32 to 104 °F Power Rating 300 W Series DVELV-300PH Size 4.69 x 2.94 in Standard UL, CSA, NOM Standards UL ListedCSA CertifiedNOM Certified Start Type Pre-Set Sub Brand Diva Switch Type Paddle Switch Temperature Rating 0 to 40 °C Terminal Type Screw Type Dimmer, single-pole UNSPSC 39122206 UPC 11 02755713592 UPC 12 027557135924 Wattage 300 W Width 4.10 in Width [Metric] 10.4140 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Color White Voltage Rating 120 VAC Lighting Control Controls 300 W electronic low-voltage loads. Paddle turns on/off. Slide up to brighten, down to dim. Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening Full family of products for most lighting sources Dimmers feature built-in soft glow nightlight Uses standard 1-pole and 3-way wiring for easy installation in any home Square law dimming RFI suppression Power failure memory Captive linear slider Electrostatic discharge tested Precise color matching Mechanical air gap switch to disconnect load power
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | Paddle switch |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | DVELV-300PH-WH |
| Connection | Wire Leads |
| Connection Type | Wire Leads |
| Control | Large Paddle/Linear Slide |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.69 in H x 2.94 in W x 0.3 in D |
| Enclosure | Plastic |
| EU RoHS Indicator | N |
| Face Material | Metal;Plastic |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Height | 2.50 in |
| Height [Metric] | 6.3500 cm |
| Insulation | Plastic |
| Length | 6.10 in |
| Length [Metric] | 15.4940 cm |
| Material | Metal/Plastic |
| Mounting | Wallbox |
| Number Of Poles | 1 |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 300 W |
| Series | DVELV-300PH |
| Size | 4.69 x 2.94 in |
| Standard | UL, CSA, NOM |
| Standards | UL ListedCSA CertifiedNOM Certified |
| Start Type | Pre-Set |
| Sub Brand | Diva |
| Switch Type | Paddle Switch |
| Temperature Rating | 0 to 40 °C |
| Terminal Type | Screw |
| Type | Dimmer, single-pole |
| UNSPSC | 39122206 |
| UPC 11 | 02755713592 |
| UPC 12 | 027557135924 |
| Wattage | 300 W |
| Width | 4.10 in |
| Width [Metric] | 10.4140 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Color | White |
| Voltage Rating | 120 VAC |
| Lighting Control |
| Controls 300 W electronic low-voltage loads. Paddle turns on/off. Slide up to brighten, down to dim. |
| Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening |
| Full family of products for most lighting sources |
| Dimmers feature built-in soft glow nightlight |
| Uses standard 1-pole and 3-way wiring for easy installation in any home |
| Square law dimming |
| RFI suppression |
| Power failure memory |
| Captive linear slider |
| Electrostatic discharge tested |
| Precise color matching |
| Mechanical air gap switch to disconnect load power |
