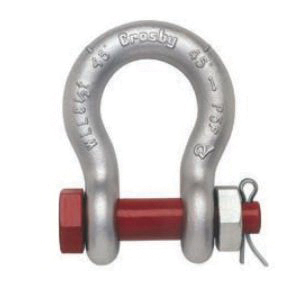

Crosby® 1019702 S-2130 Anchor Shackle, 55 ton Load, 2-1/2 in, 2.8 in Bolt Pin, Self-Colored
SKU1165632
MFGR #1019702
Your Cost: $2,311.45/ea
Crosby® Anchor Shackle, Series: S-2130, 55 ton, 2-1/2 in, 2.8 in Pin Dia, Bolt Pin, 10-1/2 in Inner Length, 7-1/4 in Inner Width, 4.13 in Opening, 5.69 in Eye Outer Size, 17.9 in Overall Length, 13.58 in Overall Width, Carbon Steel Body, Alloy Pin, Self-Colored
Crosby® Anchor Shackle, Series: S-2130, 55 ton, 2-1/2 in, 2.8 in Pin Dia, Bolt Pin, 10-1/2 in Inner Length, 7-1/4 in Inner Width, 4.13 in Opening, 5.69 in Eye Outer Size, 17.9 in Overall Length, 13.58 in Overall Width, Carbon Steel Body, Alloy Pin, Self-Colored
Body Material Carbon Steel Catalog Number 1019702 Country of Origin US Eye Outer Size 5.69 in Gross Weight Per Pack 98.2500 lb Inner Length 10-1/2 in Inner Width 7-1/4 in Opening Size 4.13 in Overall Length 17.9 in Overall Width 13.58 in Pin Material Alloy Series S-2130 Standards ASME B30.26, ABS 2007 Steel Vessel Rule 1-11-17.7, DNV2.7-1 Certified, EN13889, Federal Spec RR-C271F, Type IVA, Grade A, Class 3 Type Crosby Stock Status NONSTOCK Brand Crosby® Manufacturer Crosby Group LLC Finish Self-Colored Load Capacity 55 ton Pin Diameter 2.8 in Pin Type Bolt Size 2-1/2 in Working load limit and grade 6 permanently shown on every shackle Approved for use at -40 to 400 deg F 3.1 Certification as standard available for charpy and statistical proof test from 3.25 ton up to 25 tons to DNV2.7-1 and EN13889 Crosby® 3.25 ton through 25 ton G2130OC anchor shackles are type approved to DNV certification notes 2.7-1 offshore containers The Crosby® shackles are statistical proof and impact tested to 42 J min average at -4 deg F All other 2130 shackles can meet charpy requirements of 42 J average at -4 deg F when requested at time of order Look for the Red Pin® the mark of genuine Crosby® quality
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Body Material | Carbon Steel |
| Catalog Number | 1019702 |
| Country of Origin | US |
| Eye Outer Size | 5.69 in |
| Gross Weight Per Pack | 98.2500 lb |
| Inner Length | 10-1/2 in |
| Inner Width | 7-1/4 in |
| Opening Size | 4.13 in |
| Overall Length | 17.9 in |
| Overall Width | 13.58 in |
| Pin Material | Alloy |
| Series | S-2130 |
| Standards | ASME B30.26, ABS 2007 Steel Vessel Rule 1-11-17.7, DNV2.7-1 Certified, EN13889, Federal Spec RR-C271F, Type IVA, Grade A, Class 3 |
| Type | Crosby |
| Stock Status | NONSTOCK |
| Brand | Crosby® |
| Manufacturer | Crosby Group LLC |
| Finish | Self-Colored |
| Load Capacity | 55 ton |
| Pin Diameter | 2.8 in |
| Pin Type | Bolt |
| Size | 2-1/2 in |
| Working load limit and grade 6 permanently shown on every shackle |
| Approved for use at -40 to 400 deg F |
| 3.1 Certification as standard available for charpy and statistical proof test from 3.25 ton up to 25 tons to DNV2.7-1 and EN13889 |
| Crosby® 3.25 ton through 25 ton G2130OC anchor shackles are type approved to DNV certification notes 2.7-1 offshore containers |
| The Crosby® shackles are statistical proof and impact tested to 42 J min average at -4 deg F |
| All other 2130 shackles can meet charpy requirements of 42 J average at -4 deg F when requested at time of order |
| Look for the Red Pin® the mark of genuine Crosby® quality |
