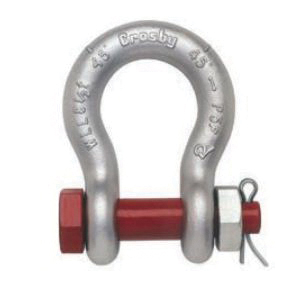

Crosby® 1019542 S-2130 Anchor Shackle, 6.5 ton Load, 7/8 in, 1.02 in Bolt Pin, Self-Colored
SKU689440
MFGR #1019542
Your Cost: $122.46/ea
Crosby® Anchor Shackle, Series: S-2130, 6.5 ton, 7/8 in, 1.02 in Pin Dia, Bolt Pin, 3-5/16 in Inner Length, 2.28 in Inner Width, 1-7/16 in Opening, 2.09 in Eye Outer Size, 5.83 in Overall Length, 4.82 in Overall Width, Carbon Steel Body, Alloy Pin, Self-Colored
Crosby® Anchor Shackle, Series: S-2130, 6.5 ton, 7/8 in, 1.02 in Pin Dia, Bolt Pin, 3-5/16 in Inner Length, 2.28 in Inner Width, 1-7/16 in Opening, 2.09 in Eye Outer Size, 5.83 in Overall Length, 4.82 in Overall Width, Carbon Steel Body, Alloy Pin, Self-Colored
Body Material Carbon Steel Catalog Number 1019542 Country of Origin US Eye Outer Size 2.09 in Gross Weight Per Pack 1 lb Inner Length 3-5/16 in Inner Width 2.28 in Opening Size 1-7/16 in Overall Length 5.83 in Overall Width 4.82 in Pin Material Alloy Series S-2130 Standards ASME B30.26, ABS 2007 Steel Vessel Rule 1-11-17.7, DNV2.7-1 Certified, EN13889, Federal Spec RR-C271F, Type IVA, Grade A, Class 3 Type Crosby Stock Status NONSTOCK Brand Crosby® Manufacturer Crosby Group LLC Finish Self-Colored Load Capacity 6.5 ton Pin Diameter 1.02 in Pin Type Bolt Size 7/8 in Working load limit and grade 6 permanently shown on every shackle Approved for use at -40 to 400 deg F 3.1 Certification as standard available for charpy and statistical proof test from 3.25 ton up to 25 tons to DNV2.7-1 and EN13889 Crosby® 3.25 ton through 25 ton G2130OC anchor shackles are type approved to DNV certification notes 2.7-1 offshore containers The Crosby® shackles are statistical proof and impact tested to 42 J min average at -4 deg F All other 2130 shackles can meet charpy requirements of 42 J average at -4 deg F when requested at time of order Look for the Red Pin® the mark of genuine Crosby® quality
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Body Material | Carbon Steel |
| Catalog Number | 1019542 |
| Country of Origin | US |
| Eye Outer Size | 2.09 in |
| Gross Weight Per Pack | 1 lb |
| Inner Length | 3-5/16 in |
| Inner Width | 2.28 in |
| Opening Size | 1-7/16 in |
| Overall Length | 5.83 in |
| Overall Width | 4.82 in |
| Pin Material | Alloy |
| Series | S-2130 |
| Standards | ASME B30.26, ABS 2007 Steel Vessel Rule 1-11-17.7, DNV2.7-1 Certified, EN13889, Federal Spec RR-C271F, Type IVA, Grade A, Class 3 |
| Type | Crosby |
| Stock Status | NONSTOCK |
| Brand | Crosby® |
| Manufacturer | Crosby Group LLC |
| Finish | Self-Colored |
| Load Capacity | 6.5 ton |
| Pin Diameter | 1.02 in |
| Pin Type | Bolt |
| Size | 7/8 in |
| Working load limit and grade 6 permanently shown on every shackle |
| Approved for use at -40 to 400 deg F |
| 3.1 Certification as standard available for charpy and statistical proof test from 3.25 ton up to 25 tons to DNV2.7-1 and EN13889 |
| Crosby® 3.25 ton through 25 ton G2130OC anchor shackles are type approved to DNV certification notes 2.7-1 offshore containers |
| The Crosby® shackles are statistical proof and impact tested to 42 J min average at -4 deg F |
| All other 2130 shackles can meet charpy requirements of 42 J average at -4 deg F when requested at time of order |
| Look for the Red Pin® the mark of genuine Crosby® quality |
