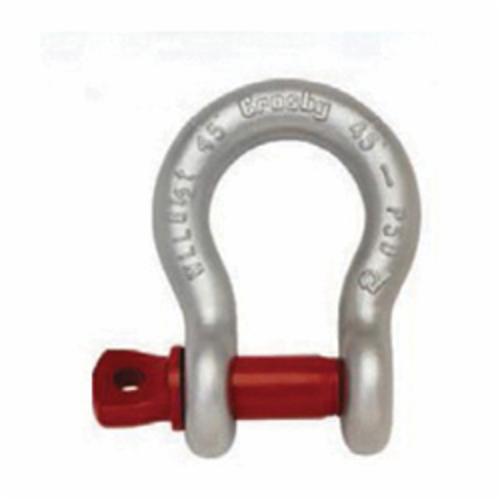

Crosby® 1018516 G-209 Anchor Shackle, 6.5 ton Load, 7/8 in, 1 in Screw Pin, Hot Dipped Galvanized
Shackles
PDW~9997636
MFG #: 1018516
Crosby®
48.85000
/ ea
Crosby® Anchor Shackle, Series: G-209, 6.5 ton, 7/8 in, 1 in Pin Dia, Screw Pin, 3-5/16 in Inner Length, 2.28 in Inner Width, 1-7/16 in Opening, 2.09 in Eye Outer Size, 5.83 in Overall Length, 4-1/2 in Overall Width, Carbon Steel Body, Alloy Pin, Hot Dipped Galvanized
- Features
| Working load limit and grade 6 permanently shown on every shackle |
| Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification |
| Approved for use at -40 to 400 deg F |
| 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers |
| The shackles are statistical proof and impact tested to 42 J min average at -4 deg F |
| The tests are conducted by Crosby® and 3.1 test certified |
| All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request |
| Look for the Red Pin® the mark of genuine Crosby® quality |
