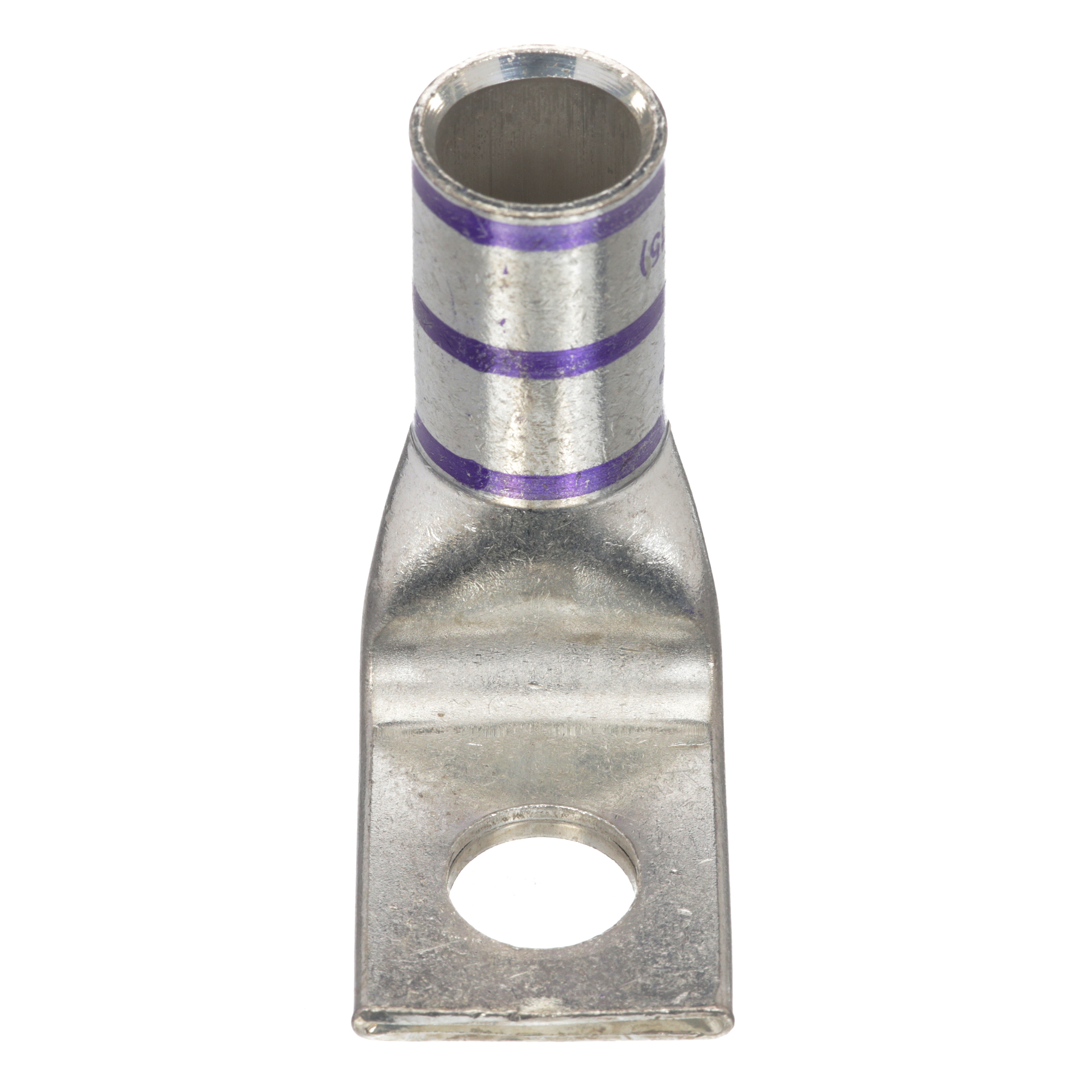

Copper Compression Lug, 1 Hole, 4/0 AWG,
SKU313857
MFGR #LCA4/0-12F-X
Your Cost: $26.8762/ea($2,687.62 / c)
Panduit® Compression Lug Connector, 1-Hole, Series: LCA, Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kVAC, 1/2 in Stud, 90 deg Standard Tongue, 1.06 in W x 0.14 in THK Tongue, 2.07 in Overall Length, Standard, 1.19 in L Barrel, 1-1/4 in Wire Stripe Length, 90 deg C, Copper, Purple
Panduit® Compression Lug Connector, 1-Hole, Series: LCA, Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kVAC, 1/2 in Stud, 90 deg Standard Tongue, 1.06 in W x 0.14 in THK Tongue, 2.07 in Overall Length, Standard, 1.19 in L Barrel, 1-1/4 in Wire Stripe Length, 90 deg C, Copper, Purple
ARRA Compliant Y Barrel Size 0.57 in ID x 0.71 in OD x 1.19 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCA4/0-12F-X Color Purple Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 0.64 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.70 in Length [Metric] 11.9380 cm Mounting 1.25 Mounting Hole Size 1-1/4 in Number Of Holes 1 Overall Length 2.07 in Returnable Y Series LCA Size 4/0 AWG Code Specifications 1-1/4 in L Wire Strip, Tin Plated Finish Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS CertifiedUL 486AUL 486BUL File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 File No. 65-13 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 1.06 in W x 0.14 in THK Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498355945 UPC 12 07498355945 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 4/0 AWG Conductor Type Copper/Stranded Die Code P54 Material Tin-Plated Copper Stud Size 1/2 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color coded bands for proper die selection and crimp placement Inspection window to visually assure full conductor insertion Tin plated to inhibit corrosion Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V American bureau of shipping approved High conductivity seamless copper tube 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.57 in ID x 0.71 in OD x 1.19 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCA4/0-12F-X |
| Color | Purple |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 0.64 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.70 in |
| Length [Metric] | 11.9380 cm |
| Mounting | 1.25 |
| Mounting Hole Size | 1-1/4 in |
| Number Of Holes | 1 |
| Overall Length | 2.07 in |
| Returnable | Y |
| Series | LCA |
| Size | 4/0 AWG Code |
| Specifications | 1-1/4 in L Wire Strip, Tin Plated Finish |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS CertifiedUL 486AUL 486BUL File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 File No. 65-13 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 1.06 in W x 0.14 in THK |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498355945 |
| UPC 12 | 07498355945 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 4/0 AWG |
| Conductor Type | Copper/Stranded |
| Die Code | P54 |
| Material | Tin-Plated Copper |
| Stud Size | 1/2 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color coded bands for proper die selection and crimp placement |
| Inspection window to visually assure full conductor insertion |
| Tin plated to inhibit corrosion |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| American bureau of shipping approved |
| High conductivity seamless copper tube |
| 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
