Panduit®

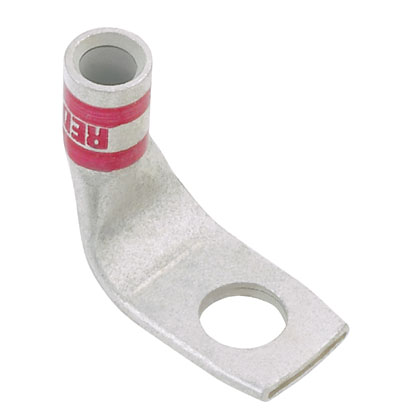

Copper Compression Lug, 1 Hole, #4 AWG F
Custom_Product_Images_Illustration
Panduit®
Copper Compression Lug, 1 Hole, #4 AWG F
SKU455320
MFGR #LCAX4-38F-L
Your Cost: $7.4742/ea($747.42 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.28 in ID x 0.38 in OD x 0.53 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCAX4-38F-L Color Gray Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.59 Gross Weight UOM Metric kg Height 3.20 in Height [Metric] 8.1280 cm Length 4.70 in Length [Metric] 11.9380 cm Mounting 42,952 Mounting Hole Size 5/8 in Number Of Holes 1 Overall Length 1.34 in Returnable Y Series LCAX Size #4 AWG Class B, C, G, H, I, K, M and #5, #4, #3 AWG DLO Specifications 5/8 in L Wire Strip Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL Listed Sub Brand Pan-Lug Temperature Rating 90 °C Tongue Size 0.84 in L x 0.62 in W x 0.07 in THK Tongue Type 90 deg Long Type Tin-Plated Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498343420 UPC 12 07498343420 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 4 AWG Class B, C, G, H, I, K, M and 5, 4, 3 AWG DLO Conductor Type Copper Die Code P29 Material Tin-Plated Copper Stud Size 42.95 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Generously beveled wire entry prevents bent back strands when inserting conductor into barrel Tin-plated to inhibit corrosion Inspection window to assure complete conductor insertion Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive Copper code/flex cable 4 - 3 AWG stranded, 2 AWG solid conductor size
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.28 in ID x 0.38 in OD x 0.53 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCAX4-38F-L |
| Color | Gray |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.59 |
| Gross Weight UOM Metric | kg |
| Height | 3.20 in |
| Height [Metric] | 8.1280 cm |
| Length | 4.70 in |
| Length [Metric] | 11.9380 cm |
| Mounting | 42,952 |
| Mounting Hole Size | 5/8 in |
| Number Of Holes | 1 |
| Overall Length | 1.34 in |
| Returnable | Y |
| Series | LCAX |
| Size | #4 AWG Class B, C, G, H, I, K, M and #5, #4, #3 AWG DLO |
| Specifications | 5/8 in L Wire Strip |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL Listed |
| Sub Brand | Pan-Lug |
| Temperature Rating | 90 °C |
| Tongue Size | 0.84 in L x 0.62 in W x 0.07 in THK |
| Tongue Type | 90 deg Long |
| Type | Tin-Plated Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498343420 |
| UPC 12 | 07498343420 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 4 AWG Class B, C, G, H, I, K, M and 5, 4, 3 AWG DLO |
| Conductor Type | Copper |
| Die Code | P29 |
| Material | Tin-Plated Copper |
| Stud Size | 42.95 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Generously beveled wire entry prevents bent back strands when inserting conductor into barrel |
| Tin-plated to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
| Copper code/flex cable |
| 4 - 3 AWG stranded, 2 AWG solid conductor size |
