Commodity - Pipe

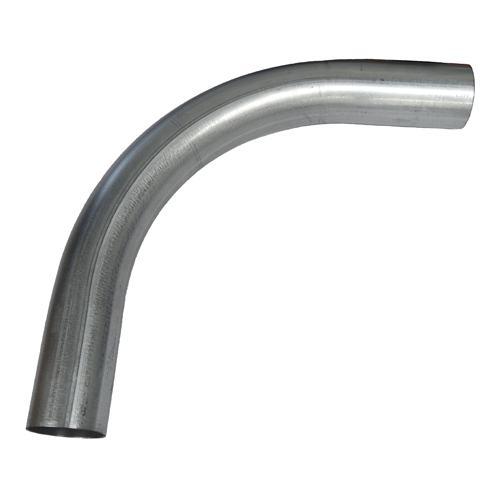

Commodity Pipe 824688 3 EMT ELBOW 90 DEGREE 24 INCH RADIUS
Commodity - Pipe
Commodity Pipe 824688 3 EMT ELBOW 90 DEGREE 24 INCH RADIUS
SKU824688
MFGR #18348
Your Cost: $314.58/ea
List: 3 EMT ELBOW 90DEG 24RAD Silver/Gray Color Made and Melted in the United States, Inline Galvanized OD and Epoxy modified acrylic ID, EMT Recognized as as Equipment Grounding Conductor by the NEC Threadless
3 EMT ELBOW 90DEG 24RAD Silver/Gray Color Made and Melted in the United States, Inline Galvanized OD and Epoxy modified acrylic ID, EMT Recognized as as Equipment Grounding Conductor by the NEC Threadless
Application Used to change the direction of a raceway ARRA Compliant C Bend Angle 90 ° Buy American Compliant Y Catalog Number 18348 Color Metallic Conduit Type EMT Connection Screw Terminal Country of Origin USA Currency USD EU RoHS Indicator Y Flexibility No Gross Weight Per Pack 15.0000 lb Gross Weight per Pack Metric 6.80 Gross Weight UOM Metric kg Height 22.50 in Height [Metric] 57.1500 cm Inside Diameter 3.356 in Length 53.00 in Length [Metric] 134.6200 cm Material Composition https://www.ideadigitalcontent.com/files/11022/ROH_Picoma_RoHS_2_5_15.pdf Material Composition Declaration https://www.ideadigitalcontent.com/files/11022/ROH_Picoma_RoHS_2_5_15.pdf Outside Diameter 3.5 in Radius 24 in Standard UL 797, CSA C22.2 83.1, ANSI C 80.3 and Federal Specification WW-C-563 Sub Brand FasTrak Plus Type Special Radius EMT Elbow UNSPSC 39131717 UPC 11 78669202096 UPC 12 786692020969 Width 50.50 in Width [Metric] 128.2700 cm Stock Status NONSTOCK Brand Commodity - Pipe Manufacturer Non-Specific Manufacturer Material Steel Trade Size 3 in Used to change the direction of a raceway Made and Melted in the United States, Inline Galvanized OD and Epoxy modified acrylic ID, EMT Recognized as as Equipment Grounding Conductor by the NEC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Used to change the direction of a raceway |
| ARRA Compliant | C |
| Bend Angle | 90 ° |
| Buy American Compliant | Y |
| Catalog Number | 18348 |
| Color | Metallic |
| Conduit Type | EMT |
| Connection | Screw Terminal |
| Country of Origin | USA |
| Currency | USD |
| EU RoHS Indicator | Y |
| Flexibility | No |
| Gross Weight Per Pack | 15.0000 lb |
| Gross Weight per Pack Metric | 6.80 |
| Gross Weight UOM Metric | kg |
| Height | 22.50 in |
| Height [Metric] | 57.1500 cm |
| Inside Diameter | 3.356 in |
| Length | 53.00 in |
| Length [Metric] | 134.6200 cm |
| Material Composition | https://www.ideadigitalcontent.com/files/11022/ROH_Picoma_RoHS_2_5_15.pdf |
| Material Composition Declaration | https://www.ideadigitalcontent.com/files/11022/ROH_Picoma_RoHS_2_5_15.pdf |
| Outside Diameter | 3.5 in |
| Radius | 24 in |
| Standard | UL 797, CSA C22.2 83.1, ANSI C 80.3 and Federal Specification WW-C-563 |
| Sub Brand | FasTrak Plus |
| Type | Special Radius EMT Elbow |
| UNSPSC | 39131717 |
| UPC 11 | 78669202096 |
| UPC 12 | 786692020969 |
| Width | 50.50 in |
| Width [Metric] | 128.2700 cm |
| Stock Status | NONSTOCK |
| Brand | Commodity - Pipe |
| Manufacturer | Non-Specific Manufacturer |
| Material | Steel |
| Trade Size | 3 in |
| Used to change the direction of a raceway |
| Made and Melted in the United States, Inline Galvanized OD and Epoxy modified acrylic ID, EMT Recognized as as Equipment Grounding Conductor by the NEC |
