Color-Keyed®

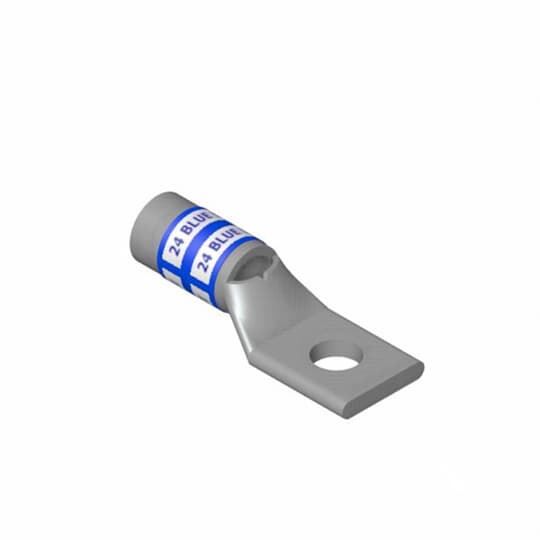

Color-Keyed® 256-30695-1383 1/0 CU STD BRL 1 HOLE 5/8 INCH BOLT
Custom_Product_Images_Illustration
Color-Keyed®
Color-Keyed® 256-30695-1383 1/0 CU STD BRL 1 HOLE 5/8 INCH BOLT
SKU257065
MFGR #256-30695-1383
Your Cost: $16.2372/ea($1,623.72 / c)
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Alternate Catalog Number 7TAH007970R0086 ARRA Compliant C Barrel Size 0.52 in Dia Barrel Type Standard Buy American Compliant C Cable Size 1/0 AWG Catalog Number 256-30695-1383 Color Pink Country of Origin MX Currency USD EU RoHS Indicator C Gross Volume Per Pack 0.01 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.0700 lb Gross Weight per Pack Metric 0.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 2.30 in Height [Metric] 5.8420 cm Insulation None Item Group 1L Item Group 2 1LI Length 3.30 in Length [Metric] 8.3820 cm Number Of Holes 1 Overall Length 2.54 in Returnable A Standards UL Listed, CSA Certified, RoHS Compliant Sub Brand Color Keyed Tongue Size 1.5 in L x 0.88 in W x 0.13 in THK Type 1-Hole UNSPSC 39121405 UPC 11 78621009031 UPC 12 786210090313 Voltage Rating 35 kVA Width 2.80 in Width [Metric] 7.1120 cm Stock Status NONSTOCK Brand Color-Keyed® Manufacturer Thomas & Betts Conductor Size 1/0 AWG Conductor Type Copper Die Code 42 Material Copper Stud Size 5/8 in
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | 7TAH007970R0086 |
| ARRA Compliant | C |
| Barrel Size | 0.52 in Dia |
| Barrel Type | Standard |
| Buy American Compliant | C |
| Cable Size | 1/0 AWG |
| Catalog Number | 256-30695-1383 |
| Color | Pink |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 0.01 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.0700 lb |
| Gross Weight per Pack Metric | 0.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 2.30 in |
| Height [Metric] | 5.8420 cm |
| Insulation | None |
| Item Group | 1L |
| Item Group 2 | 1LI |
| Length | 3.30 in |
| Length [Metric] | 8.3820 cm |
| Number Of Holes | 1 |
| Overall Length | 2.54 in |
| Returnable | A |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Sub Brand | Color Keyed |

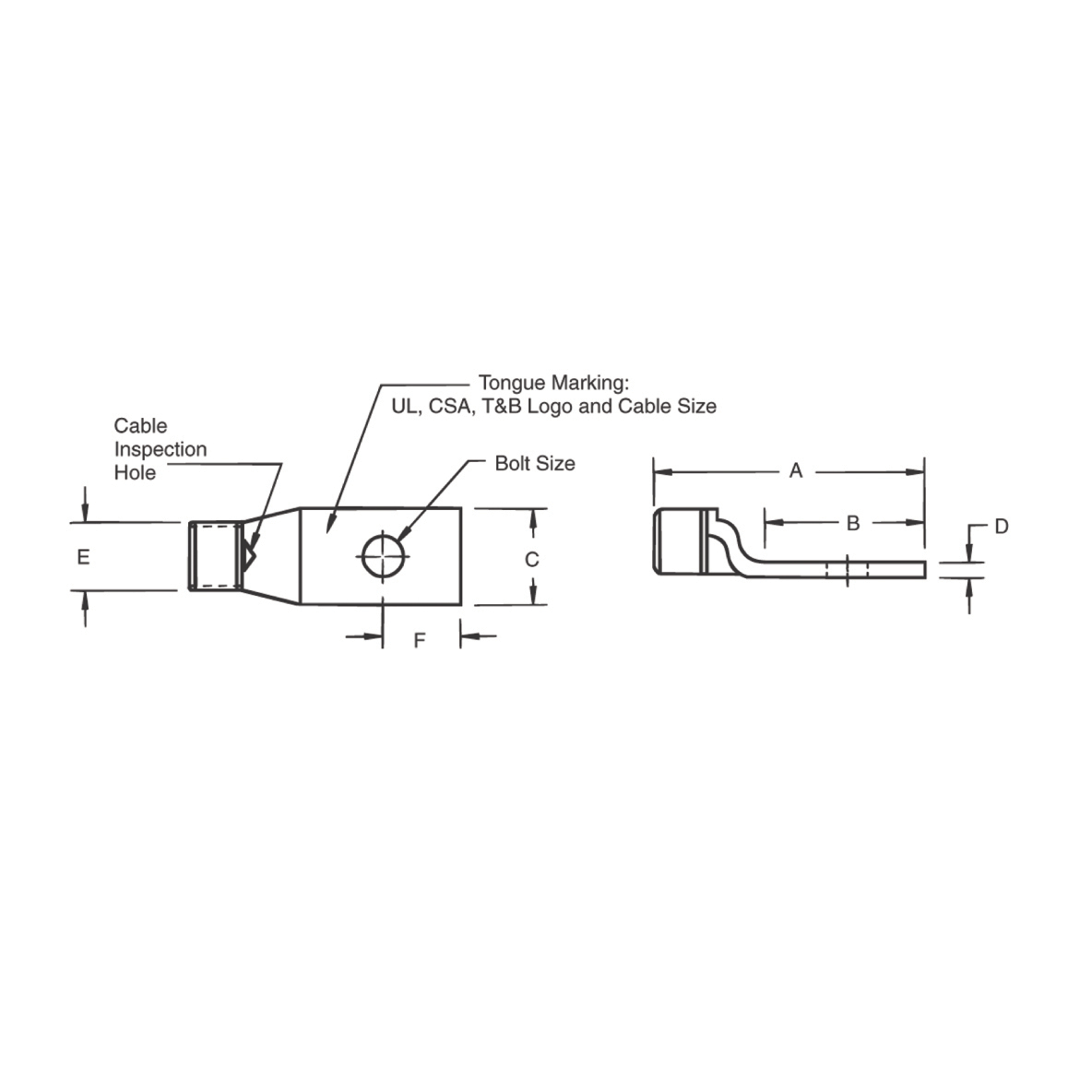

| Tongue Size | 1.5 in L x 0.88 in W x 0.13 in THK |
| Type | 1-Hole |
| UNSPSC | 39121405 |
| UPC 11 | 78621009031 |
| UPC 12 | 786210090313 |
| Voltage Rating | 35 kVA |
| Width | 2.80 in |
| Width [Metric] | 7.1120 cm |
| Stock Status | NONSTOCK |
| Brand | Color-Keyed® |
| Manufacturer | Thomas & Betts |
| Conductor Size | 1/0 AWG |
| Conductor Type | Copper |
| Die Code | 42 |
| Material | Copper |
| Stud Size | 5/8 in |
