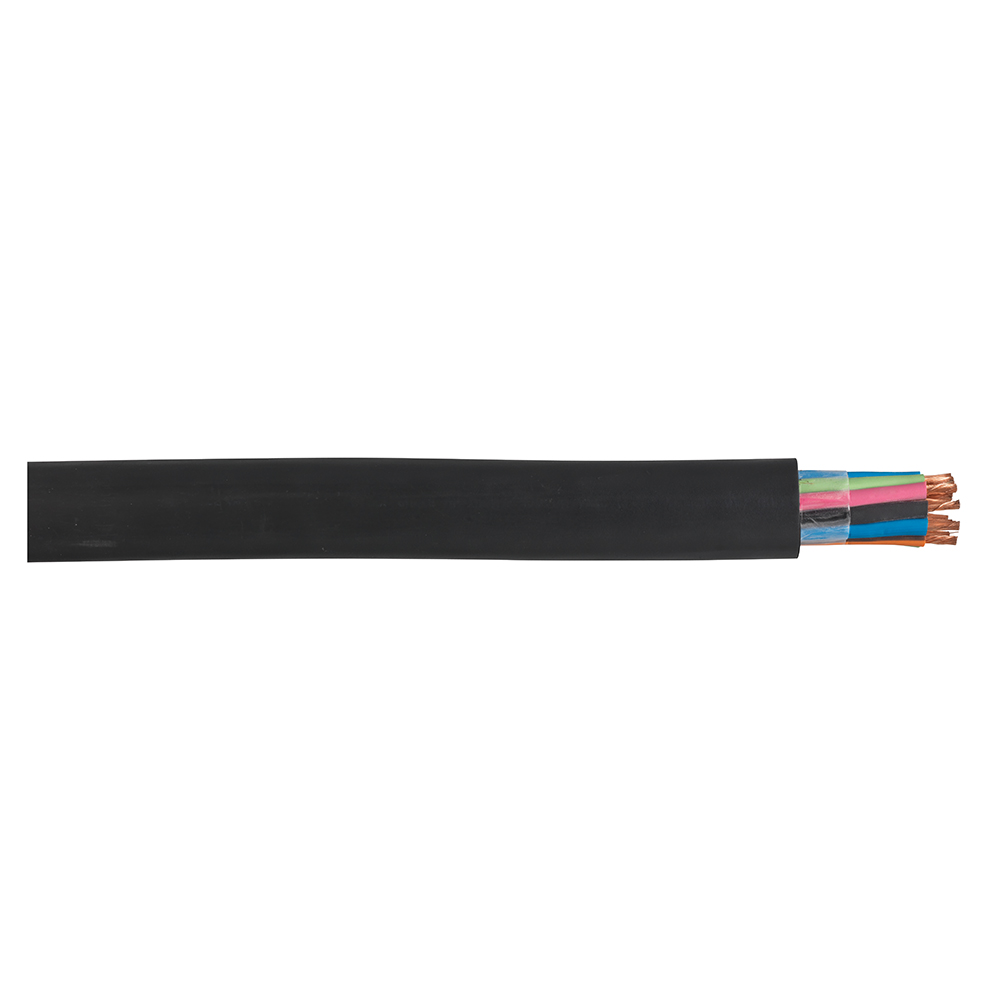

Carol® SOWA14/5 SO 14/5 600V CONTROL CABLE
SKU19821
MFGR #09405.35.01
Your Cost: $2.1725/ft($2,172.51 / m)
SO 14/5 AWG Stranded Black Copper 600 V 250 FT Reel Order by the foot - 1 FT Minimum. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
SO 14/5 AWG Stranded Black Copper 600 V 250 FT Reel Order by the foot - 1 FT Minimum. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
Amperage Rating 12 A Application • CNTRL CKTs • Tools • Heavy INDL, processing and construction equipment ARRA Compliant C Buy American Compliant C Catalog Number 09405.35.01 Color Black Conductor Material Annealed Copper Country of Origin USA Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.2650 lb Gross Weight per Pack Metric 31.91 Gross Weight UOM Metric kg Height 12.80 in Height [Metric] 32.5120 cm Insulation Material Premium-grade, color-coded 90°C EPDM Jacket Color Black Jacket Material Super Vu-Tron® Length [Metric] 40.6400 cm Number Of Conductors 5 Outside Diameter 0.645 in Standards UL 62, CSA Certified, MSHA Approved, RoHS Compliant Strands 41x30 Sub Brand Super Vu-Tron?® Temperature Rating 90?°C Type Type SOOW Multi-Conductor UNSPSC 26121603 UPC 11 07940719504 UPC 12 78189109405 Width 16.10 in Width [Metric] 40.8940 cm Stock Status NONSTOCK Brand Carol® Manufacturer General Cable Technologies Conductor Size 14 AWG Conductor Type Bare Stranded Copper Length 16.00 in Voltage Rating 600 V • CNTRL CKTs • Tools • Heavy INDL, processing and construction equipment • Extra-FLEX stranding • Abrasion-RST • Resists oils and solvents • Flame-RST • Ozone-RST • 90°C rated CNDTRs and jacket • Water-RST • UL Listed and CSA Certified for indoor and outdoor use • Ozone-, Sunlight (UV)- and weather-RST 14 to 10 AWG fully annealed stranded bare copper Premium-grade, color coded 90 deg C EPDM Extra flexible stranding Abrasion resistant Resists oils and solvents Flame-resistant Ozone resistant 90 deg C rated conductors and jacket Water resistant Ozone, sunlight, UV and weather resistant
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 12 A |
| Application | • CNTRL CKTs • Tools • Heavy INDL, processing and construction equipment |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 09405.35.01 |
| Color | Black |
| Conductor Material | Annealed Copper |
| Country of Origin | USA |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2650 lb |
| Gross Weight per Pack Metric | 31.91 |
| Gross Weight UOM Metric | kg |
| Height | 12.80 in |
| Height [Metric] | 32.5120 cm |
| Insulation Material | Premium-grade, color-coded 90°C EPDM |
| Jacket Color | Black |
| Jacket Material | Super Vu-Tron® |
| Length [Metric] | 40.6400 cm |
| Number Of Conductors | 5 |
| Outside Diameter | 0.645 in |
| Standards | UL 62, CSA Certified, MSHA Approved, RoHS Compliant |
| Strands | 41x30 |
| Sub Brand | Super Vu-Tron?® |
| Temperature Rating | 90?°C |
| Type | Type SOOW Multi-Conductor |
| UNSPSC | 26121603 |
| UPC 11 | 07940719504 |
| UPC 12 | 78189109405 |
| Width | 16.10 in |
| Width [Metric] | 40.8940 cm |
| Stock Status | NONSTOCK |
| Brand | Carol® |
| Manufacturer | General Cable Technologies |
| Conductor Size | 14 AWG |
| Conductor Type | Bare Stranded Copper |
| Length | 16.00 in |
| Voltage Rating | 600 V |
| • CNTRL CKTs • Tools • Heavy INDL, processing and construction equipment |
| • Extra-FLEX stranding • Abrasion-RST • Resists oils and solvents • Flame-RST • Ozone-RST • 90°C rated CNDTRs and jacket • Water-RST • UL Listed and CSA Certified for indoor and outdoor use • Ozone-, Sunlight (UV)- and weather-RST |
| 14 to 10 AWG fully annealed stranded bare copper |
| Premium-grade, color coded 90 deg C EPDM |
| Extra flexible stranding |
| Abrasion resistant |
| Resists oils and solvents |
| Flame-resistant |
| Ozone resistant |
| 90 deg C rated conductors and jacket |
| Water resistant |
| Ozone, sunlight, UV and weather resistant |
