Carol® C3068.30.86 2C/16 19/.0117BC OA/FLEX CMP
SKU846721
MFGR #C3068.30.86
Your Cost: $0.5844/ft($584.43 / m)

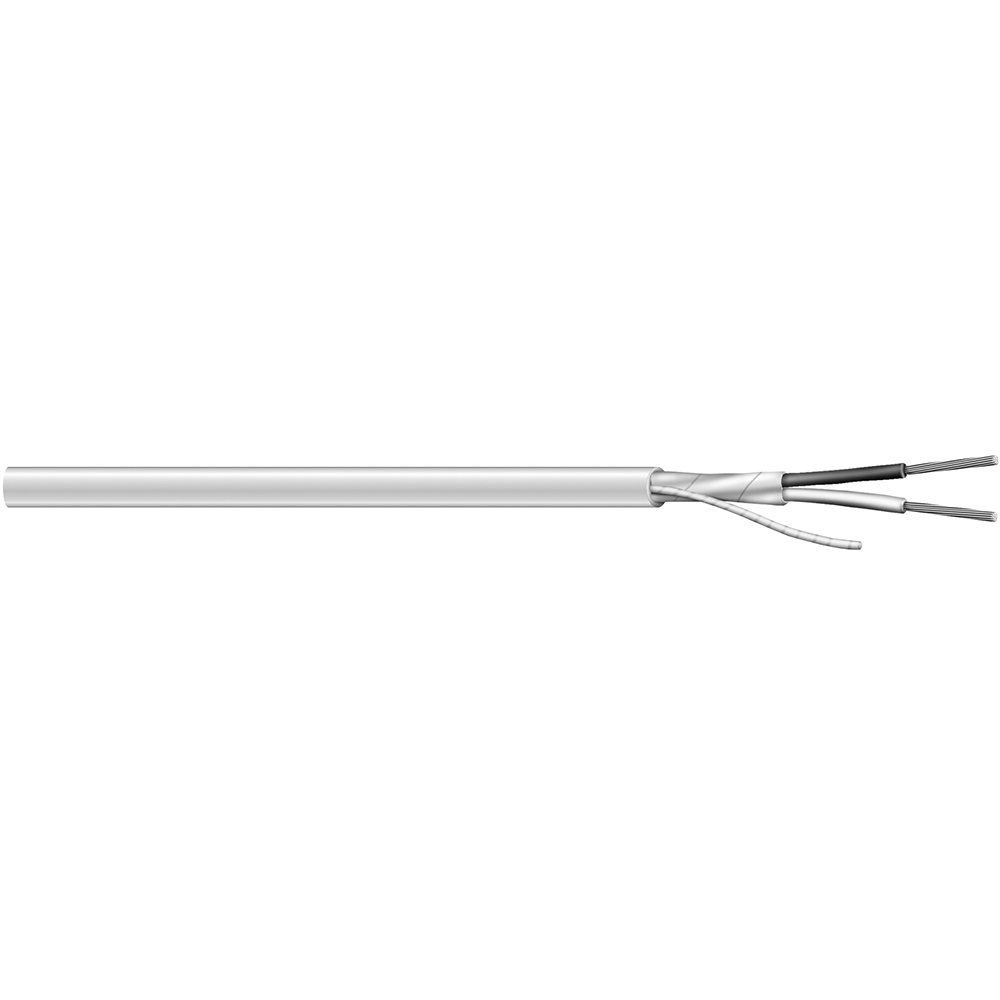

List: In many electronic applications, two wires are required to complete circuits; these are often referred to as "balanced arrays" or "twisted pair" constructions. Paired cable designs, like Carol® brand constructions, find frequent application in circuits requiring circuit-to-circuit isolation from noise, minimization of capacitance imbalances and a reduction of EMI interference currents. Circuit separation is further enhanced in those designs employing individual circuit shields in concert with an overall shield. These shielding systems are available from general cable in myriad combinations to suit the unique needs of the circuit designer. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
In many electronic applications, two wires are required to complete circuits; these are often referred to as "balanced arrays" or "twisted pair" constructions. Paired cable designs, like Carol® brand constructions, find frequent application in circuits requiring circuit-to-circuit isolation from noise, minimization of capacitance imbalances and a reduction of EMI interference currents. Circuit separation is further enhanced in those designs employing individual circuit shields in concert with an overall shield. These shielding systems are available from general cable in myriad combinations to suit the unique needs of the circuit designer. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
Application Intercom systems Background music Audio systems PowerLimited control circuits Suggested voltage rating: 150 volts ARRA Compliant C Buy American Compliant C Catalog Number C3068.30.86 Color Ivory Conductor Material Annealed Copper Country of Origin USA Currency USD EU RoHS Indicator N Gross Weight Per Pack 27.5000 lb Gross Weight per Pack Metric 12.47 Gross Weight UOM Metric kg Height 49.36 in Height [Metric] 125.3744 cm Insulation Material Premium-grade, color-coded Flexguard® PVC Jacket Color Ivory Jacket Material Flexguard® PVC Length [Metric] 106.6800 cm Number Of Conductors 15 Outside Diameter 0.187 Standard NEC Article 725 (UL: 75°C, 150V) NEC Article 800 (UL: 75°C, 300V) Designed to meet NFPA 262 and CSA FT-6 Steiner Tunnel Fire Tests for Plenum Applications Standards ARRA CompliantBuy American Act CompliantNEC Article 725/800NFPA 262 Flame TestCSA FT6 Steiner Tunnel Fire Tests for Plenum Applications Strands 19/0.0117 Sub Brand Carol?® Brand Temperature Rating 0 to 75 Type Type CMP/CL3P Foil Shielded Multi-Conductor UNSPSC 26121642 UPC 11 07940701554 UPC 12 07940701554 Width 42.00 in Width [Metric] 106.6800 cm Stock Status NONSTOCK Brand Carol® Manufacturer General Cable Technologies Conductor Size 16 AWG Conductor Type Fully Annealed Stranded Bare Copper Length 42.00 in Voltage Rating 150 Intercom systems Background music Audio systems PowerLimited control circuits Suggested voltage rating: 150 volts Flexible and Easy to terminate 0.009 in THK nominal insulation 0.015 in THK nominal jacket 22 through 16 AWG fully annealed stranded tinned or bare copper per ASTM B-3, B-8 or B-33 Premium grade, color coded Flexguard® PVC insulation 75 pF/ft capacitance between conductors, 134 pF/ft capacitance between one conductor and other conductors connected to shield Sequential footage marked to facilitate installation FT6 Steiner tunnel fire tests for plenum applications Easy to terminate Flexible, Flexguard® PVC natural Stranded tinned copper drain wire 100% Flexfoil® aluminum/polyester foil with 25% overlap, minimum shield 100% Flexfoil® aluminum/polyester foil with 25% overlap, minimum shield
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Intercom systems Background music Audio systems PowerLimited control circuits Suggested voltage rating: 150 volts |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | C3068.30.86 |
Color | Ivory |
Conductor Material | Annealed Copper |
Country of Origin | USA |
Currency | USD |
EU RoHS Indicator | N |
Gross Weight Per Pack | 27.5000 lb |
Gross Weight per Pack Metric | 12.47 |
Gross Weight UOM Metric | kg |
Height | 49.36 in |
Height [Metric] | 125.3744 cm |
Insulation Material | Premium-grade, color-coded Flexguard® PVC |
Jacket Color | Ivory |
Jacket Material | Flexguard® PVC |
Length [Metric] | 106.6800 cm |
Number Of Conductors | 15 |
Outside Diameter | 0.187 |
Standard | NEC Article 725 (UL: 75°C, 150V) NEC Article 800 (UL: 75°C, 300V) Designed to meet NFPA 262 and CSA FT-6 Steiner Tunnel Fire Tests for Plenum Applications |
Standards | ARRA CompliantBuy American Act CompliantNEC Article 725/800NFPA 262 Flame TestCSA FT6 Steiner Tunnel Fire Tests for Plenum Applications |
Strands | 19/0.0117 |
Sub Brand | Carol?® Brand |
Temperature Rating | 0 to 75 |
Type | Type CMP/CL3P Foil Shielded Multi-Conductor |
UNSPSC | 26121642 |
UPC 11 | 07940701554 |
UPC 12 | 07940701554 |
Width | 42.00 in |
Width [Metric] | 106.6800 cm |
Stock Status | NONSTOCK |
Brand | Carol® |
Manufacturer | General Cable Technologies |
Conductor Size | 16 AWG |
Conductor Type | Fully Annealed Stranded Bare Copper |
Length | 42.00 in |
Voltage Rating | 150 |
Intercom systems Background music Audio systems PowerLimited control circuits Suggested voltage rating: 150 volts |
Flexible and Easy to terminate |
0.009 in THK nominal insulation |
0.015 in THK nominal jacket |
22 through 16 AWG fully annealed stranded tinned or bare copper per ASTM B-3, B-8 or B-33 |
Premium grade, color coded Flexguard® PVC insulation |
75 pF/ft capacitance between conductors, 134 pF/ft capacitance between one conductor and other conductors connected to shield |
Sequential footage marked to facilitate installation |
FT6 Steiner tunnel fire tests for plenum applications |
Easy to terminate |
Flexible, Flexguard® PVC natural |
Stranded tinned copper drain wire |
100% Flexfoil® aluminum/polyester foil with 25% overlap, minimum shield |
100% Flexfoil® aluminum/polyester foil with 25% overlap, minimum shield |
