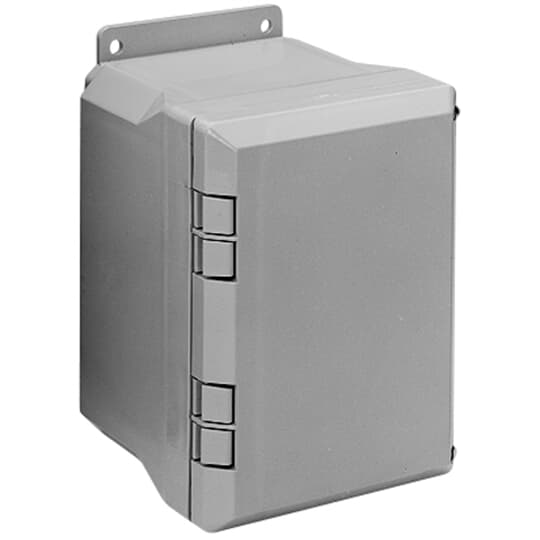

Carlon® NH16146 Non-Metallic Single Door NEMA Enclosure Assembly, 16 in L x 14 in W x 7 in D, NEMA 12
Wall Mount Enclosures
508098
MFG #: NH16146
Carlon®
675.27000
/ ea
Circuit Safe® NEMA Enclosures are the flagship product of the Carlon® Enclosure offering. Molded in tough, durable polycarbonate resin, these enclosures lead the market in terms of design, durability, aesthetics and economy of use. Ranging in size from 6" x 4" x 4" to 16" x 14" x 6", all Circuit Safe® NEMA products are UL 50 Listed and meet Types 4X, 12 and 13. These enclosures utilize recognized materials that carry an ultraviolet rating of F1, ensuring a very long, stable service life when installed outdoors. In addition, the use of polycarbonate
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - 12055_JRXCI3A1TZMUB4FP.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - TA04619-TB2.pdf(Install Instructions 1 URL)
- Install Instructions URL - TA04619-TB2.pdf(Install Instructions URL)
- Line Drawing URL - ns644-nv644-cm2ld-1(Line Drawing URL)
- ROHS Compliance URL - Carlon_NH16146_RoHS_Sheet.pdf(ROHS Compliance URL)
- Spec Sheet URL - 12055_OM5FA4HJV3TQWGZ6.pdf(Spec Sheet URL)
- Spec Sheet URL - 238_CAT1_A-276-81.pdf(Spec Sheet URL)
- Tech Drawing URL - nh644_cl1.JPG(Tech Drawing URL)
- Applications
- Features
| Septic and pump controls |
| 100% non-metallic construction, including hinges. |
| 100% non-metallic construction, including hinges |
| Sturdy SS latches install without penetration of the enclosure base |
| Clear covers are available which eliminates the need for window kits |
| All cover screws are captive |
| Panel suspension system allows the installation of panels at any depth, including stacking of multiple panels |
| Swing panels are also available |
| Subpanels are available in steel, PVC, or aluminum |
| Non-metallic mounting rails for easy installation |
| Less than half the weight of metal enclosures, 25 percent lighter than fiberglass, easier to handle and less expensive to ship |
| Full modification service are available |
| With hidden hinge opaque cover |
