CULUG- 6STR-LONG-3/8STUD
SKU710627
MFGR #YA6CT4
$/ea

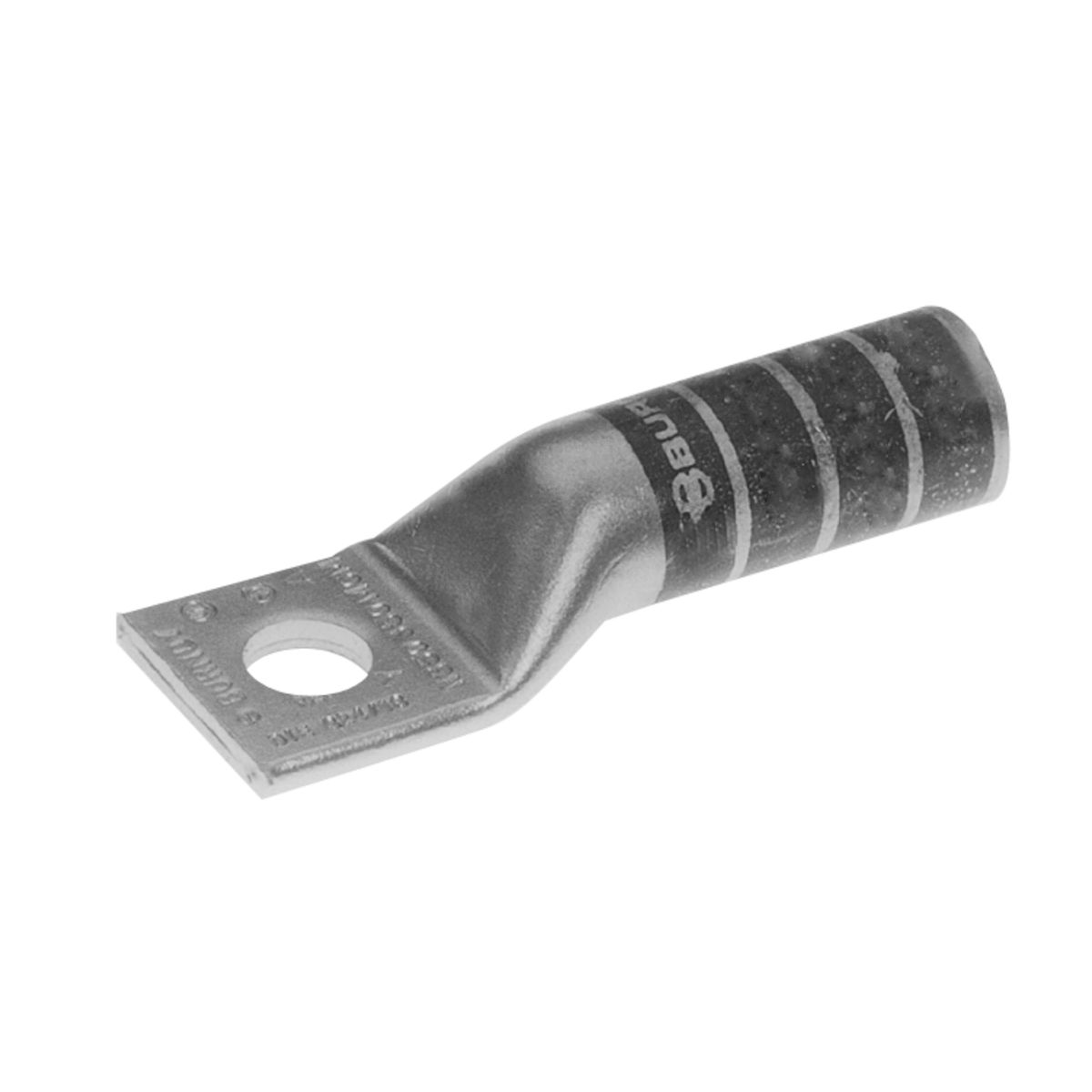

BURNDY® HYLUG™ Compression Terminal, 1-Hole, Solid Copper/Stranded Conductor, 6 AWG Conductor, Die Code: 7, 3/8 in Stud, Straight Tongue, 0.58 in W x 0.06 in THK Tongue, 2.13 in Overall Length, Chamfered/Long, 1-1/8 in Barrel, 1-3/16 in Wire Stripe Length, 3/8 in Mounting Hole, Tin Plated Copper, Blue
BURNDY® HYLUG™ Compression Terminal, 1-Hole, Solid Copper/Stranded Conductor, 6 AWG Conductor, Die Code: 7, 3/8 in Stud, Straight Tongue, 0.58 in W x 0.06 in THK Tongue, 2.13 in Overall Length, Chamfered/Long, 1-1/8 in Barrel, 1-3/16 in Wire Stripe Length, 3/8 in Mounting Hole, Tin Plated Copper, Blue
Application Wire Termination ARRA Compliant C Bolt Size 0.38 Buy American Compliant C Catalog Number YA6CT4 Country of Origin US EU RoHS Indicator Y Finish Tin Plated Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.29 in Height [Metric] 0.7366 cm Length 2.13 in Length [Metric] 5.4102 cm Returnable Y Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 194 Type Terminal UNSPSC 39121405 UPC 11 78181017306 UPC 12 781810173060 Voltage Rating 35,000 V Width 0.58 in Width [Metric] 1.4732 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Type CODE Material Copper Wire Termination UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Bolt Size | 0.38 |
| Buy American Compliant | C |
| Catalog Number | YA6CT4 |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.29 in |
| Height [Metric] | 0.7366 cm |
| Length | 2.13 in |
| Length [Metric] | 5.4102 cm |
| Returnable | Y |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 194 |
| Type | Terminal |
| UNSPSC | 39121405 |
| UPC 11 | 78181017306 |
| UPC 12 | 781810173060 |
| Voltage Rating | 35,000 V |
| Width | 0.58 in |
| Width [Metric] | 1.4732 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Type | CODE |
| Material | Copper |
| Wire Termination |
| UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight |
