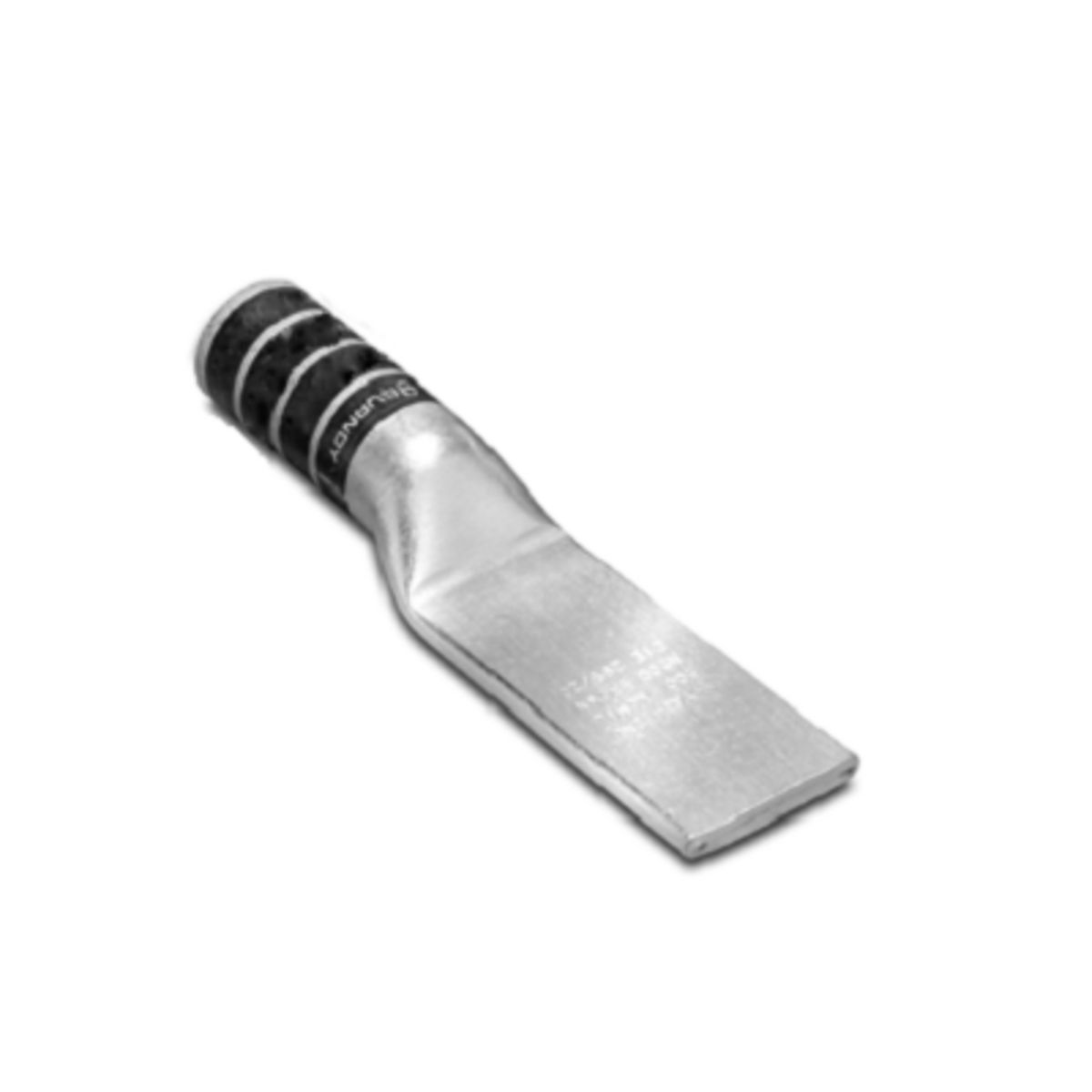

CULUG-1/0STR-UNDR-UL&CSA
SKU409254
MFGR #YA252NU
Your Cost: $11.17/ea
List: The Blank Tongue line of Copper Code HYLUG™ terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. This innovative design allows the installer to customize the tongue drilling to fit their specific application while maintaining UL Listing and CSA certification.
The Blank Tongue line of Copper Code HYLUG™ terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. This innovative design allows the installer to customize the tongue drilling to fit their specific application while maintaining UL Listing and CSA certification.
Application Wire Termination ARRA Compliant C Barrel Size Long Barrel Type Chamfered Buy American Compliant C Catalog Number YA252NU Color Pink Color Code Pink Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 1.38 in Height [Metric] 3.5052 cm Length 4.81 in Length [Metric] 12.2174 cm Overall Length 4.81 in Returnable Y Specifications 1-7/16 in L Wire Stripe Standard UL 486A-486B Standards UL Listed, CSA Certified, RoHS Compliant Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.83 in W x 0.11 in THK Tongue Type Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181001801 UPC 12 781810018019 Voltage Rating 35,000 V Width 0.11 in Width [Metric] 0.2794 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 1/0 AWG Conductor Type Stranded Copper Die Code 12/348 Material Copper Stud Size 1/4 in Wire Termination Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness. Offered in a wide range of code conductor sizes Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness Internally beveled barrel end Proper compression systems form a highly efficient electrical connection Dimples located at each end of the scored line represent the location of the NEMA standard hole spacing Scored line locates the center of the tongue and prevents the drill from walking when trying to drill in this area
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | Long |
| Barrel Type | Chamfered |
| Buy American Compliant | C |
| Catalog Number | YA252NU |
| Color | Pink |
| Color Code | Pink |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 1.38 in |
| Height [Metric] | 3.5052 cm |
| Length | 4.81 in |
| Length [Metric] | 12.2174 cm |
| Overall Length | 4.81 in |
| Returnable | Y |
| Specifications | 1-7/16 in L Wire Stripe |
| Standard | UL 486A-486B |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.83 in W x 0.11 in THK |
| Tongue Type | Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181001801 |
| UPC 12 | 781810018019 |
| Voltage Rating | 35,000 V |
| Width | 0.11 in |
| Width [Metric] | 0.2794 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 1/0 AWG |
| Conductor Type | Stranded Copper |
| Die Code | 12/348 |
| Material | Copper |
| Stud Size | 1/4 in |
| Wire Termination |
| Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness. Offered in a wide range of code conductor sizes |
| Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness |
| Internally beveled barrel end |
| Proper compression systems form a highly efficient electrical connection |
| Dimples located at each end of the scored line represent the location of the NEMA standard hole spacing |
| Scored line locates the center of the tongue and prevents the drill from walking when trying to drill in this area |
