BURNDY®

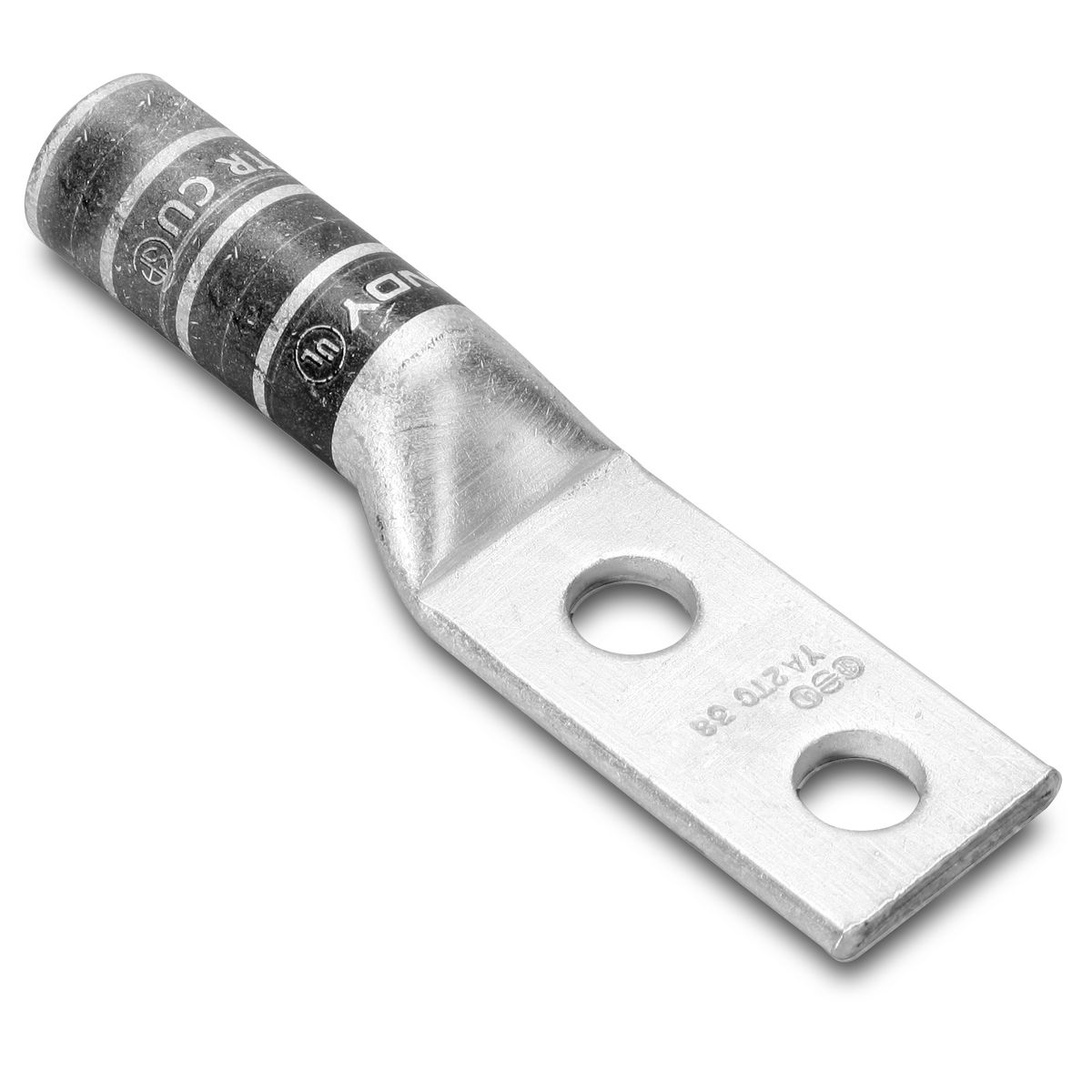

CUHYLUG 8 STR 2 HOLE 3/8
Custom_Product_Images_Illustration
BURNDY®
CUHYLUG 8 STR 2 HOLE 3/8
SKU306807
MFGR #YA8C2TC38
Your Cost: $7.50/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 0.81 in L Barrel Type Chamfered/Long Buy American Compliant C Catalog Number YA8C2TC38 Color Red Color Code Red Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.27 in Height [Metric] 0.6858 cm Length 2.89 in Length [Metric] 7.3406 cm Overall Length 2.89 in Replaced Catalog Number YA8C2TC38 Returnable Y Series YA-2TC Specifications 7/8 in L Wire Strip, 1 in Hole Spacing Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.58 in W x 0.06 in THK Tongue Type Standard Straight Type Long Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181001971 UPC 12 781810019719 Voltage Rating 35,000 V Width 0.58 in Width [Metric] 1.4732 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 8 AWG Conductor Type Solid/Stranded Copper Die Code 49 Material Copper Stud Size 3/8 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 49, Tongue Angle: Straight, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y8MRB-1, MY29-3, MY29-11, MRC840 Tool, (2), Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper For mechanical: MD6, OUR840, MD7-34R tool, (2) W8CVT, W8CRT, X8CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W8CVT, W8CRT, X8CRT die, Y35, Y39, Y750, PAT750 tool, (1) U8CRT die, Y46 tool, (1) U8CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool, (2) Y8MRB-1, MY29-3, MY29-11, MRC840 installation tool Electro tin plated Without inspection window Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wire Termination |
| ARRA Compliant | C |
| Barrel Size | 0.81 in L |
| Barrel Type | Chamfered/Long |
| Buy American Compliant | C |
| Catalog Number | YA8C2TC38 |
| Color | Red |
| Color Code | Red |
| Country of Origin | US |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 0.27 in |
| Height [Metric] | 0.6858 cm |
| Length | 2.89 in |
| Length [Metric] | 7.3406 cm |
| Overall Length | 2.89 in |
| Replaced Catalog Number | YA8C2TC38 |
| Returnable | Y |
| Series | YA-2TC |
| Specifications | 7/8 in L Wire Strip, 1 in Hole Spacing |
| Standard | UL 486A-486B |
| Sub Brand | HYLUG |
| Temperature Rating | 90 °C |
| Tongue Size | 0.58 in W x 0.06 in THK |
| Tongue Type | Standard Straight |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC 11 | 78181001971 |
| UPC 12 | 781810019719 |
| Voltage Rating | 35,000 V |
| Width | 0.58 in |
| Width [Metric] | 1.4732 cm |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Conductor Size | 8 AWG |
| Conductor Type | Solid/Stranded Copper |
| Die Code | 49 |
| Material | Copper |
| Stud Size | 3/8 in |
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 49, Tongue Angle: Straight, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y8MRB-1, MY29-3, MY29-11, MRC840 Tool, (2), Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper |
| For mechanical: MD6, OUR840, MD7-34R tool, (2) W8CVT, W8CRT, X8CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W8CVT, W8CRT, X8CRT die, Y35, Y39, Y750, PAT750 tool, (1) U8CRT die, Y46 tool, (1) U8CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V tool, (2) Y8MRB-1, MY29-3, MY29-11, MRC840 installation tool |
| Electro tin plated |
| Without inspection window |
| Electro Tin Plated Copper |
