Siemens

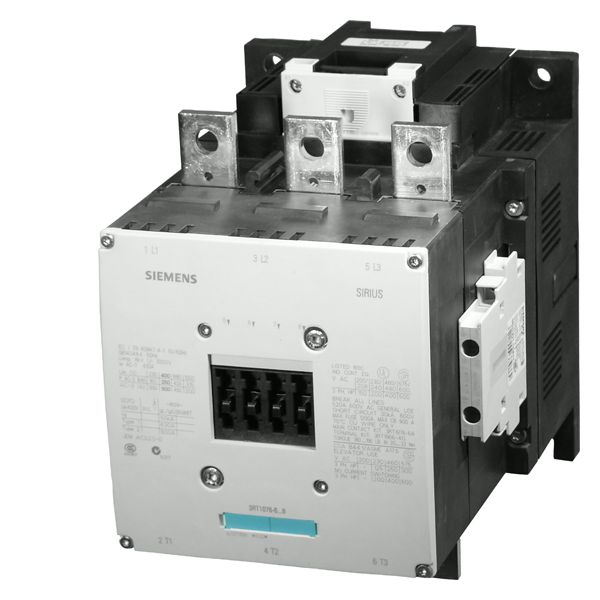

CONTACTOR RES S12 690A 110-127VUC 3P BAR

Custom_Product_Images_Illustration

Siemens

SKU665607

MFGR #3RT1476-6AF36

Your Cost: $3,578.14/ea

List: ~~$7,590.00~~ /ea

SIEMENS 3RT1476-6AF36 CONTACTOR RESIST S12 690A 110-127V 3P BR

: Alternate Catalog Number
3RT1476-6AF36
ARRA Compliant
C
Brand
Siemens
Buy American Compliant
C
Catalog Number
3RT1476-6AF36
Coil Power Rating
830 VA Pickup/9.2 VA Holding
Coil Voltage
110 VAC/127 VDC
Contact Configuration
3NO
Contact Rating
A600/Q600
Contact Type
Non-Reversing
Country of Origin
DE
Currency
USD
Dimensions
214 mm H x 160 mm W x 225 mm D
Enclosure Type
IP00
EU RoHS Indicator
C
Frequency Rating
50/60 Hz
Gross Volume Per Pack
1439.30
Gross Volume UOM
in
Gross Weight Per Pack
22.9300 lb
Gross Weight per Pack Metric
10.40
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536490065
Height
9.1500 in
Height [Metric]
23.2410 cm
Length
14.3000 in
Length [Metric]
36.3220 cm
Manufacturer
Siemens
Maximum Load Current
690 A
Mounting Type
Panel
Number of Auxiliary Contacts
4
Number Of Poles
3
Operating Temperature
-25 to 60
Returnable
Y
Size
Size S12
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E31519 (Vol 11 Sec 4)
Stock Status
NONSTOCK
Terminal Type
Busbar
UNSPSC
39121529
UPC 11
75455477353
UPC 12
754554773537
Wattage
90 kW
Width
11.0000 in
Width [Metric]
27.9400 cm
: 3D Rendering
Catalog
Computer~Aided [CAD|BIM] Model
Seller Home Page
Spec Sheet 1
Spec Sheet
User Manual
: Without suppression lugs

10000000 of the contactor/typical, 10000000 of the contactor with added auxiliary switch block/typical, 5000000 of the Contactor With Added Electronics Compatible Auxiliary Switch Block/Typical

Alternate Catalog Number	3RT1476-6AF36
ARRA Compliant	C
Brand	Siemens
Buy American Compliant	C
Catalog Number	3RT1476-6AF36
Coil Power Rating	830 VA Pickup/9.2 VA Holding
Coil Voltage	110 VAC/127 VDC
Contact Configuration	3NO
Contact Rating	A600/Q600
Contact Type	Non-Reversing
Country of Origin	DE
Currency	USD
Dimensions	214 mm H x 160 mm W x 225 mm D
Enclosure Type	IP00
EU RoHS Indicator	C
Frequency Rating	50/60 Hz
Gross Volume Per Pack	1439.30
Gross Volume UOM	in
Gross Weight Per Pack	22.9300 lb
Gross Weight per Pack Metric	10.40
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536490065
Height	9.1500 in
Height [Metric]	23.2410 cm
Length	14.3000 in
Length [Metric]	36.3220 cm
Manufacturer	Siemens
Maximum Load Current	690 A
Mounting Type	Panel
Number of Auxiliary Contacts	4
Number Of Poles	3
Operating Temperature	-25 to 60
Returnable	Y
Size	Size S12
Standards	ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E31519 (Vol 11 Sec 4)
Stock Status	NONSTOCK
Terminal Type	Busbar
UNSPSC	39121529
UPC 11	75455477353
UPC 12	754554773537
Wattage	90 kW
Width	11.0000 in
Width [Metric]	27.9400 cm
