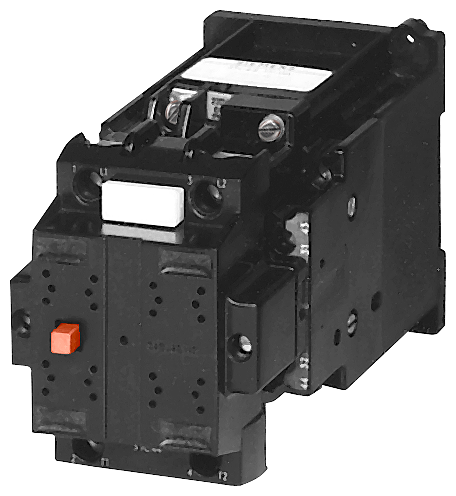

CONTACTOR,DC OPER,SIZE 1,110V,2NO+2NC

Custom_Product_Images_Illustration

SKU369977

MFGR #3TC4417-0AF4

Your Cost: $1,583.16/ea

SIEMENS 3TC4417-0AF4 SZ1 110V 32A CONT

: Alternate Catalog Number
3TC4417-0AF4
ARRA Compliant
C
Buy American Compliant
C
Catalog Number
3TC4417-0AF4
Coil Power Rating
10 W
Country of Origin
DE
Currency
USD
Dimensions
85 mm H x 70 mm W x 145 mm H
Enclosure Type
IP00
EU RoHS Indicator
C
Gross Volume Per Pack
71.80
Gross Volume UOM
in
Gross Weight Per Pack
2.3000 lb
Gross Weight per Pack Metric
1.04
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536490065
Height
6.0300 in
Height [Metric]
15.3162 cm
Length
3.7800 in
Length [Metric]
9.6012 cm
Mounting Type
Rail/Snap-On/Threaded
Number of Auxiliary Contacts
4
Number Of Poles
2
Operating Cycles
10000000
Operating Temperature
-25 to 55
Returnable
Y
Size
S2
Standards
RoHS CompliantREACH Article 33IEC 60947-1IEC 60947-4-1EN 60947-1EN 60947-4-1
Terminal Type
Screw
UNSPSC
39121521
UPC 11
75455418501
UPC 12
754554185019
Wattage
2.5/4/5/9 kW
Width
3.1500 in
Width [Metric]
8.0010 cm
Stock Status
NONSTOCK
Brand
Siemens
Manufacturer
Siemens
Coil Voltage
110 VDC
Contact Configuration
2NO-2NC
Maximum Load Current
32 A
Type
Type 3TC General Purpose
: 3D Rendering
Catalog
Computer~Aided [CAD|BIM] Model
Seller Home Page
Spec Sheet 1
Spec Sheet
Spec Sheet
Spec Sheet
User Manual
: 10 W (closing/holding) magnet coil at DC

2.5 kW at 110 V, 5 kW at 220 V, 9 kW at 440/600 V, 4 kW at 750 V (DC-3, DC-5)

Alternate Catalog Number	3TC4417-0AF4
ARRA Compliant	C
Buy American Compliant	C
Catalog Number	3TC4417-0AF4
Coil Power Rating	10 W
Country of Origin	DE
Currency	USD
Dimensions	85 mm H x 70 mm W x 145 mm H
Enclosure Type	IP00
EU RoHS Indicator	C
Gross Volume Per Pack	71.80
Gross Volume UOM	in
Gross Weight Per Pack	2.3000 lb
Gross Weight per Pack Metric	1.04
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536490065
Height	6.0300 in
Height [Metric]	15.3162 cm
Length	3.7800 in
Length [Metric]	9.6012 cm
Mounting Type	Rail/Snap-On/Threaded
Number of Auxiliary Contacts	4
Number Of Poles	2
Operating Cycles	10000000
Operating Temperature	-25 to 55
Returnable	Y
Size	S2
Standards	RoHS CompliantREACH Article 33IEC 60947-1IEC 60947-4-1EN 60947-1EN 60947-4-1
Terminal Type	Screw
UNSPSC	39121521
UPC 11	75455418501
UPC 12	754554185019
Wattage	2.5/4/5/9 kW
Width	3.1500 in
Width [Metric]	8.0010 cm
Stock Status	NONSTOCK
Brand	Siemens
Manufacturer	Siemens
Coil Voltage	110 VDC
Contact Configuration	2NO-2NC
Maximum Load Current	32 A
Type	Type 3TC General Purpose
