Bussmann

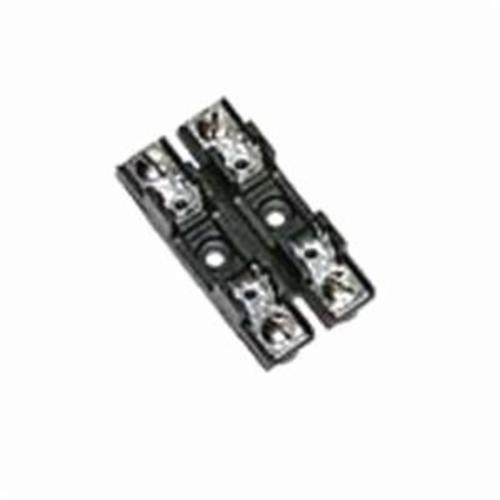

Bussmann® S-8201-2 BREAKAWAY FUSEBLOCK
Custom_Product_Images_Illustration
Bussmann
Bussmann® S-8201-2 BREAKAWAY FUSEBLOCK
SKU4741
MFGR #S-8201-2
Your Cost: $10.84/ea
List: 20A 300V 1/4" x 1-1/4" 2 Pole Fuseblock, Straight 1/4" Quick Connect
20A 300V 1/4" x 1-1/4" 2 Pole Fuseblock, Straight 1/4" Quick Connect
ARRA Compliant C Buy American Compliant C Catalog Number S-8201-2 Connection Type Quick Connect/Straight Terminal Country of Origin US Currency USD Dimensions 2.16 in L x 0.5 in W x 0.56 in H EU RoHS Indicator C Fuse Diameter 1/4 in Fuse Length 1-1/4 in Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Material Thermoplastic Mounting Type Bolt-In Number Of Poles 2 Series 8200 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14853 Guide No. IZLT2CE CertifiedCSA 6225-01 File No. 47235 Temperature Rating 130 °C UNSPSC 39121624 UPC 11 05171211728 UPC 12 051712117289 Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 16/20 A Type Breakaway Voltage Rating 300 VAC//VDC 1/4 in quick connect terminal All types of terminal configurations Clips made of bright tin plated spring bronze Anti-rotational pin provided flame retardant thermoplastic meets UL 94V0 25 A UL and 21 A CSA maximum current rating bolt-in and snap-in mounting available All types of terminal configurations 130 deg C Bolt-In and 110 deg C Snap-In temperature rating 1/4 in Quick connect termina
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | S-8201-2 |
| Connection Type | Quick Connect/Straight Terminal |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.16 in L x 0.5 in W x 0.56 in H |
| EU RoHS Indicator | C |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 in |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Material | Thermoplastic |
| Mounting Type | Bolt-In |
| Number Of Poles | 2 |
| Series | 8200 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E14853 Guide No. IZLT2CE CertifiedCSA 6225-01 File No. 47235 |
| Temperature Rating | 130 °C |
| UNSPSC | 39121624 |
| UPC 11 | 05171211728 |
| UPC 12 | 051712117289 |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 16/20 A |
| Type | Breakaway |
| Voltage Rating | 300 VAC//VDC |
| 1/4 in quick connect terminal |
| All types of terminal configurations |
| Clips made of bright tin plated spring bronze |
| Anti-rotational pin provided |
| flame retardant thermoplastic meets UL 94V0 |
| 25 A UL and 21 A CSA maximum current rating |
| bolt-in and snap-in mounting available |
| All types of terminal configurations |
| 130 deg C Bolt-In and 110 deg C Snap-In temperature rating |
| 1/4 in Quick connect termina |
