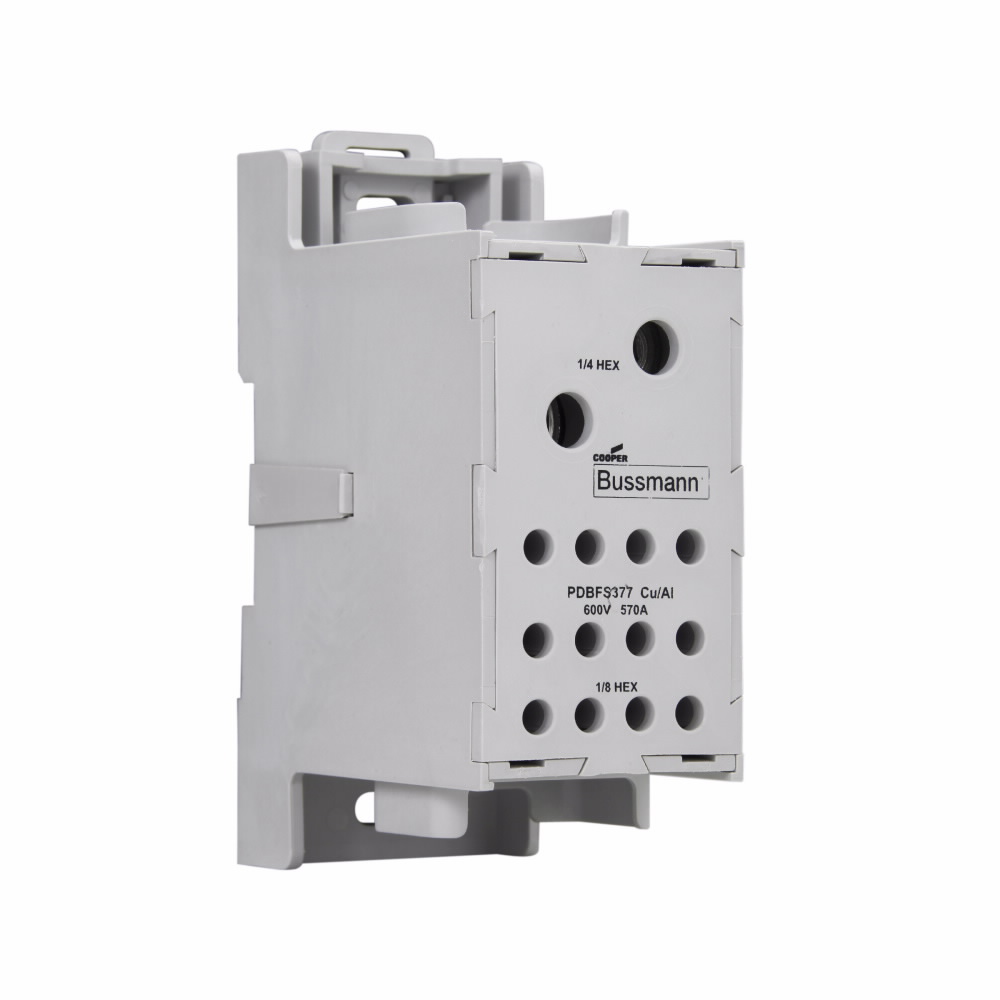

Bussmann® PDBFS377 PDBFS Finger Safe Power Distribution Block, 480 VAC, 175 to 760 A, 1 Poles, Copper/Aluminum
Custom_Product_Images_Illustration
Bussmann® PDBFS377 PDBFS Finger Safe Power Distribution Block, 480 VAC, 175 to 760 A, 1 Poles, Copper/Aluminum
SKU513481
MFGR #PDBFS377
Your Cost: $160.71/ea
List: The small footprint, high short circuit current (SCCR) Bussmann® series power distribution blocks provide IP20* finger-safe protection under specified conditions. These UL® listed, single pole blocks are of a modular design that permits dovetailing together the required number of poles for an application and still meet the UL 1953 minimum 1" and 2" spacing required per UL 508A for feeder circuit applications and per NEC® for field installations. With SCCRs up to 200 kA, these blocks help achieve compliance with National electrical code (NEC) and OSHA requirements by resolving a common SCCR "weak link" in industrial control panels. To increase application flexibility, these blocks feature dual-wire rated ports that accept copper or aluminum conductors while retaining a UL listed status.
The small footprint, high short circuit current (SCCR) Bussmann® series power distribution blocks provide IP20* finger-safe protection under specified conditions. These UL® listed, single pole blocks are of a modular design that permits dovetailing together the required number of poles for an application and still meet the UL 1953 minimum 1" and 2" spacing required per UL 508A for feeder circuit applications and per NEC® for field installations. With SCCRs up to 200 kA, these blocks help achieve compliance with National electrical code (NEC) and OSHA requirements by resolving a common SCCR "weak link" in industrial control panels. To increase application flexibility, these blocks feature dual-wire rated ports that accept copper or aluminum conductors while retaining a UL listed status.
Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs ARRA Compliant C Buy American Compliant C Catalog Number PDBFS377 Country of Origin MX EU RoHS Indicator C Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 0.74 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 3.75 in Height [Metric] 9.5250 cm Length 4.00 in Length [Metric] 10.1600 cm Returnable Y Standard Contact Manufacturer,RoHS Compliant,Contact factory Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus Listed Sub Brand Bussmann Series Type Power distribution block UNSPSC 39121629 UPC 11 05171265990 UPC 12 051712659901 Width 6.50 in Width [Metric] 16.5100 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 570 A Material Tin plated aluminum connectors Voltage Rating 600 VAC//VDC Alternate Catalog Number PDBFS377 Currency USD Mounting DIN rail, panel
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | PDBFS377 |
Country of Origin | MX |
EU RoHS Indicator | C |
Gross Weight Per Pack | 0.8000 lb |
Gross Weight per Pack Metric | 0.74 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 8536904000 |
Height | 3.75 in |
Height [Metric] | 9.5250 cm |
Length | 4.00 in |
Length [Metric] | 10.1600 cm |
Returnable | Y |
Standard | Contact Manufacturer,RoHS Compliant,Contact factory |
Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus Listed |
Sub Brand | Bussmann Series |
Type | Power distribution block |
UNSPSC | 39121629 |
UPC 11 | 05171265990 |
UPC 12 | 051712659901 |
Width | 6.50 in |
Width [Metric] | 16.5100 cm |
Stock Status | NONSTOCK |
Brand | Bussmann |
Manufacturer | Eaton |
Amperage Rating | 570 A |
Material | Tin plated aluminum connectors |
Voltage Rating | 600 VAC//VDC |
Alternate Catalog Number | PDBFS377 |
Currency | USD |
Mounting | DIN rail, panel |
