Bussmann

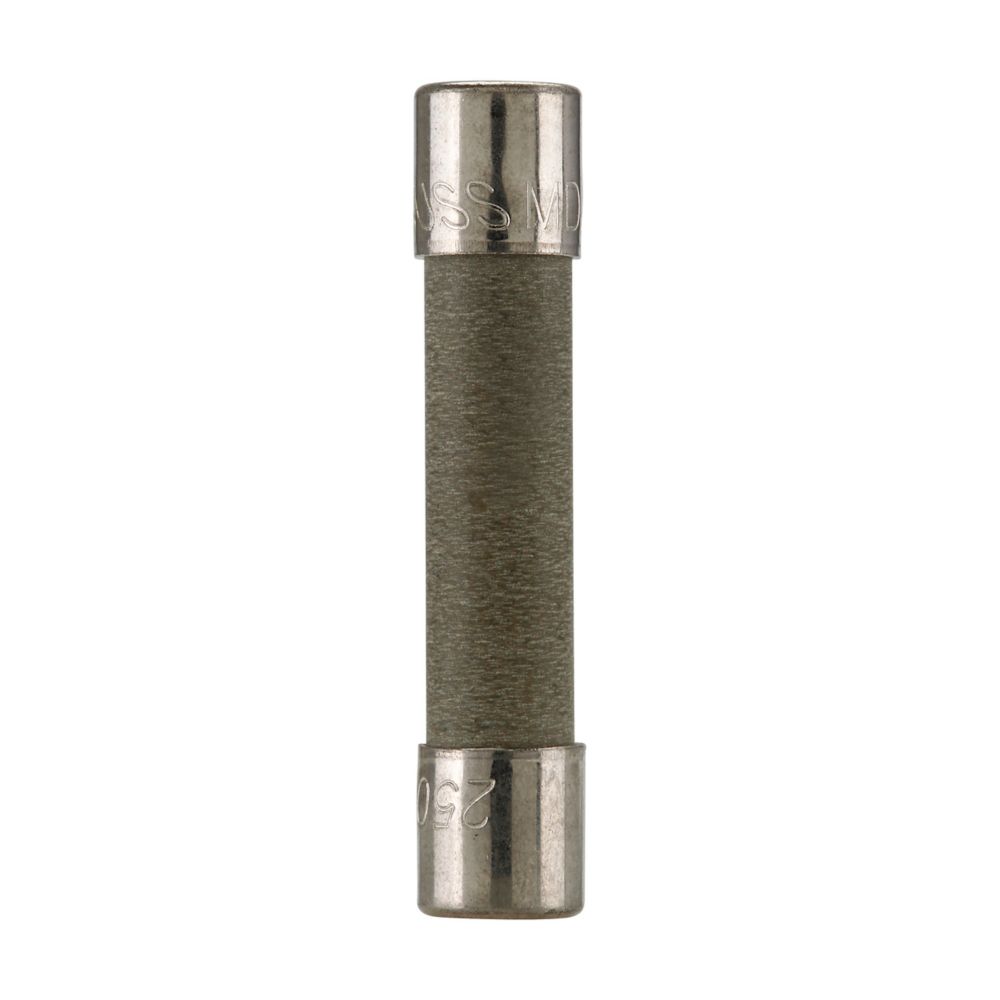

Bussmann® MDA-1-1/4-R Bussmann® SMALL DIMENSION FUSE
Custom_Product_Images_Illustration
Bussmann
Bussmann® MDA-1-1/4-R Bussmann® SMALL DIMENSION FUSE
SKU1040617
MFGR #MDA-1-1/4-R
Your Cost: $6.35/ea
List: From over current and overvoltage protection to super capacitors and magnetics, cooper Bussmann provides integrated solutions that meet the evolving needs of technology-driven markets. cooper Bussmann is a leader and an innovator in providing cost-effective, comprehensive solutions that utilize the high quality brand names that customers know and trust.
From over current and overvoltage protection to super capacitors and magnetics, cooper Bussmann provides integrated solutions that meet the evolving needs of technology-driven markets. cooper Bussmann is a leader and an innovator in providing cost-effective, comprehensive solutions that utilize the high quality brand names that customers know and trust.
Alternate Catalog Number MDA-1-1/4-R Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 1/4 in Dia x 1-1/4 in L Buy American Compliant C Catalog Number MDA-1-1/4-R Connection Ferrule end x ferrule end Country of Origin MUL Currency USD Element Single EU RoHS Indicator C Gross Weight Per Pack 0.0050 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 0.32 in Height [Metric] 0.8001 cm Indicating|Non~Indicating Non-Indicating Length 1.65 in Length [Metric] 4.2012 cm Material Nickel-plated brass end cap constructionCeramic tube Mounting Type Holder Rejection|Non~Rejection Non-Rejection Response Time 60 min at 135%, 120 sec at 200% s Series MDA Size 1/4 In Diameter X 1-1/4 In Length Standard RoHS Compliant,CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedStandard 248-14UL ListedGuide JDYX UL File No. E19180CSA Class 1422-01CSA File No. 53787 Sub Brand Bussmann Series Terminal Type Ferrule Type Time-delay fuse UNSPSC 39121611 UPC 11 05171264510 UPC 12 051712645102 Width 1.38 in Width [Metric] 3.5001 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 1.25 A Body Type Cylindrical Interrupt Rating 10 kAIC at 125 Vac35 AIC at 250 Vac Voltage Rating 250 Vac, 32 Vdc (self certified) VAC Ind Facilities & Factories - Facility: Safety and Security Systems Ceramic tube Ceramic body for higher amp/volt ratings Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse 100 A at 250 VAC, 10 kA at 125 VAC interrupt rating 60 min at 135%, 120 sec at 200% response time
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | MDA-1-1/4-R |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Buy American Compliant | C |
| Catalog Number | MDA-1-1/4-R |
| Connection | Ferrule end x ferrule end |
| Country of Origin | MUL |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0050 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 0.32 in |
| Height [Metric] | 0.8001 cm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 1.65 in |
| Length [Metric] | 4.2012 cm |
| Material | Nickel-plated brass end cap constructionCeramic tube |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Non-Rejection |
| Response Time | 60 min at 135%, 120 sec at 200% s |
| Series | MDA |
| Size | 1/4 In Diameter X 1-1/4 In Length |
| Standard | RoHS Compliant,CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedStandard 248-14UL ListedGuide JDYX UL File No. E19180CSA Class 1422-01CSA File No. 53787 |
| Sub Brand | Bussmann Series |
| Terminal Type | Ferrule |
| Type | Time-delay fuse |
| UNSPSC | 39121611 |
| UPC 11 | 05171264510 |
| UPC 12 | 051712645102 |
| Width | 1.38 in |
| Width [Metric] | 3.5001 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 1.25 A |
| Body Type | Cylindrical |
| Interrupt Rating | 10 kAIC at 125 Vac35 AIC at 250 Vac |
| Voltage Rating | 250 Vac, 32 Vdc (self certified) VAC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Ceramic tube |
| Ceramic body for higher amp/volt ratings |
| Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse |
| 100 A at 250 VAC, 10 kA at 125 VAC interrupt rating |
| 60 min at 135%, 120 sec at 200% response time |
