Bussmann

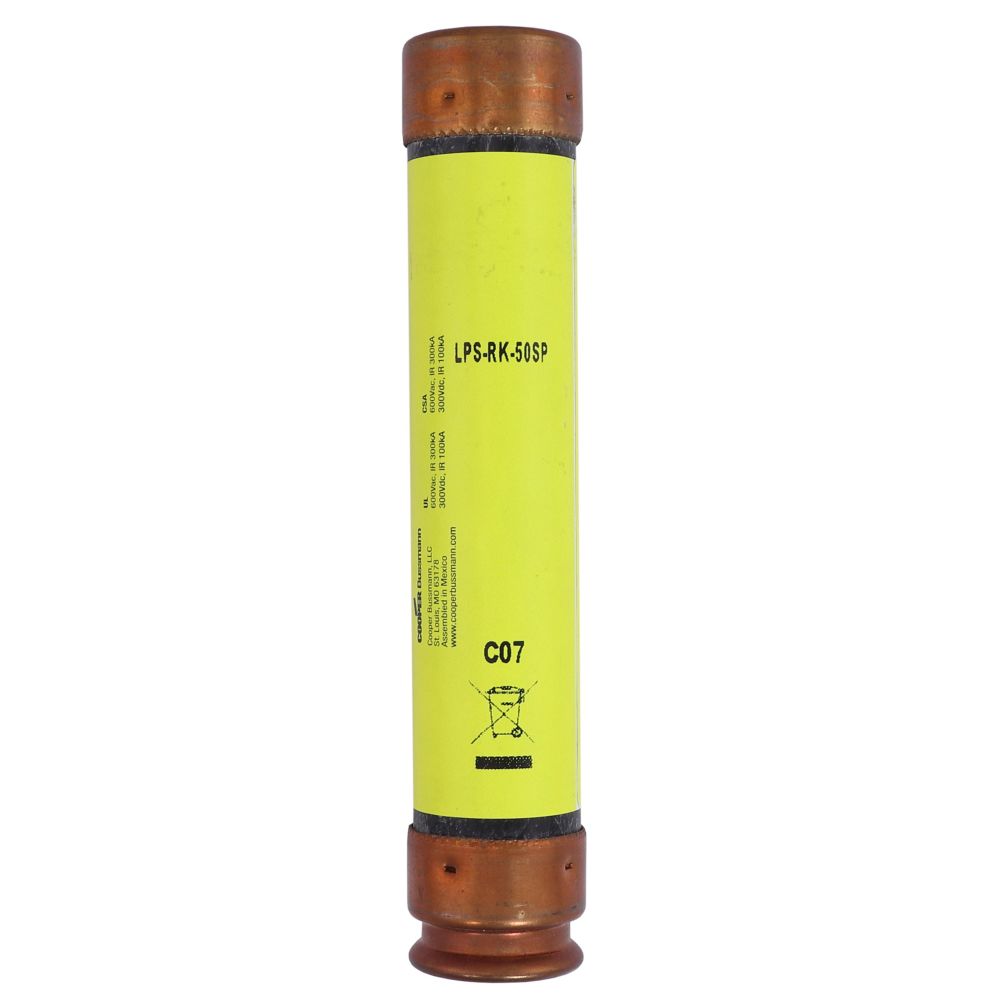

Bussmann® LPS-RK-50SP LOW-PEAK DUAL ELEM
Custom_Product_Images_Illustration
Bussmann
Bussmann® LPS-RK-50SP LOW-PEAK DUAL ELEM
SKU5285
MFGR #LPS-RK-50SP
Your Cost: $39.20/ea
List: 50A 600V Class RK1 Low Peak Dual Element, Time Delay Fuse
50A 600V Class RK1 Low Peak Dual Element, Time Delay Fuse
Alternate Catalog Number LPS-RK-50SP Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 1-1/16 in Dia x 5-1/2 in L Buy American Compliant C Catalog Number LPS-RK-50SP Connection Ferrule end x ferrule end Country of Origin MUL Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 1.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 1.60 in Height [Metric] 4.0640 cm Length 5.50 in Length [Metric] 13.9700 cm Material Melamine Mounting Type Holder Response Time 10 S at 500% Series LPS-RK-SP Size 1.06 In Diameter X 5.50 In Length Standard CE Marked Standards CE Marked, UL Listed, Guide JDDZ, File E4273, Class 1422-02, File 53787, CSA C22.2 NO 248.12 CSA Certified Sub Brand Bussmann Series Terminal Type Clip Type Fuse UNSPSC 39121606 UPC 11 05171254840 UPC 12 051712548403 Width 1.60 in Width [Metric] 4.0640 cm Stock Status NORMALLY STOCKED Brand Bussmann Manufacturer Eaton Amperage Rating 50 A Class RK-1 Interrupt Rating 100 kAIC at 300 Vdc300 kAIC at 600 Vac Voltage Rating 600//300 VAC//VDC Ind Facilities & Factories - Facility: Safety and Security Systems Electrically isolated end cap Fast short circuit protection and dual element, time-delay performance provide ultimate protection Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses Consistent 2:1 ampacity ratios for all low peak fuses make selective coordination easy Time-delay permits sizing as close as 130% of motor Full Load Amps (FLA) for back-up overload protection Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents Protects against single phase motor damage Proper sizing can provide No Damage Type 2 motor starter protection for NEMA® and the international electrotechnical commission (IEC) motor controllers 300 kA VAC RMS Sym, 100 kA VDC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LPS-RK-50SP |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 1-1/16 in Dia x 5-1/2 in L |
| Buy American Compliant | C |
| Catalog Number | LPS-RK-50SP |
| Connection | Ferrule end x ferrule end |
| Country of Origin | MUL |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 1.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 1.60 in |
| Height [Metric] | 4.0640 cm |
| Length | 5.50 in |
| Length [Metric] | 13.9700 cm |
| Material | Melamine |
| Mounting Type | Holder |
| Response Time | 10 S at 500% |
| Series | LPS-RK-SP |
| Size | 1.06 In Diameter X 5.50 In Length |
| Standard | CE Marked |
| Standards | CE Marked, UL Listed, Guide JDDZ, File E4273, Class 1422-02, File 53787, CSA C22.2 NO 248.12 CSA Certified |
| Sub Brand | Bussmann Series |
| Terminal Type | Clip |
| Type | Fuse |
| UNSPSC | 39121606 |
| UPC 11 | 05171254840 |
| UPC 12 | 051712548403 |
| Width | 1.60 in |
| Width [Metric] | 4.0640 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 50 A |
| Class | RK-1 |
| Interrupt Rating | 100 kAIC at 300 Vdc300 kAIC at 600 Vac |
| Voltage Rating | 600//300 VAC//VDC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Electrically isolated end cap |
| Fast short circuit protection and dual element, time-delay performance provide ultimate protection |
| Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses |
| Consistent 2:1 ampacity ratios for all low peak fuses make selective coordination easy |
| Time-delay permits sizing as close as 130% of motor Full Load Amps (FLA) for back-up overload protection |
| Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents |
| Protects against single phase motor damage |
| Proper sizing can provide No Damage Type 2 motor starter protection for NEMA® and the international electrotechnical commission (IEC) motor controllers |
| 300 kA VAC RMS Sym, 100 kA VDC |
