Bussmann

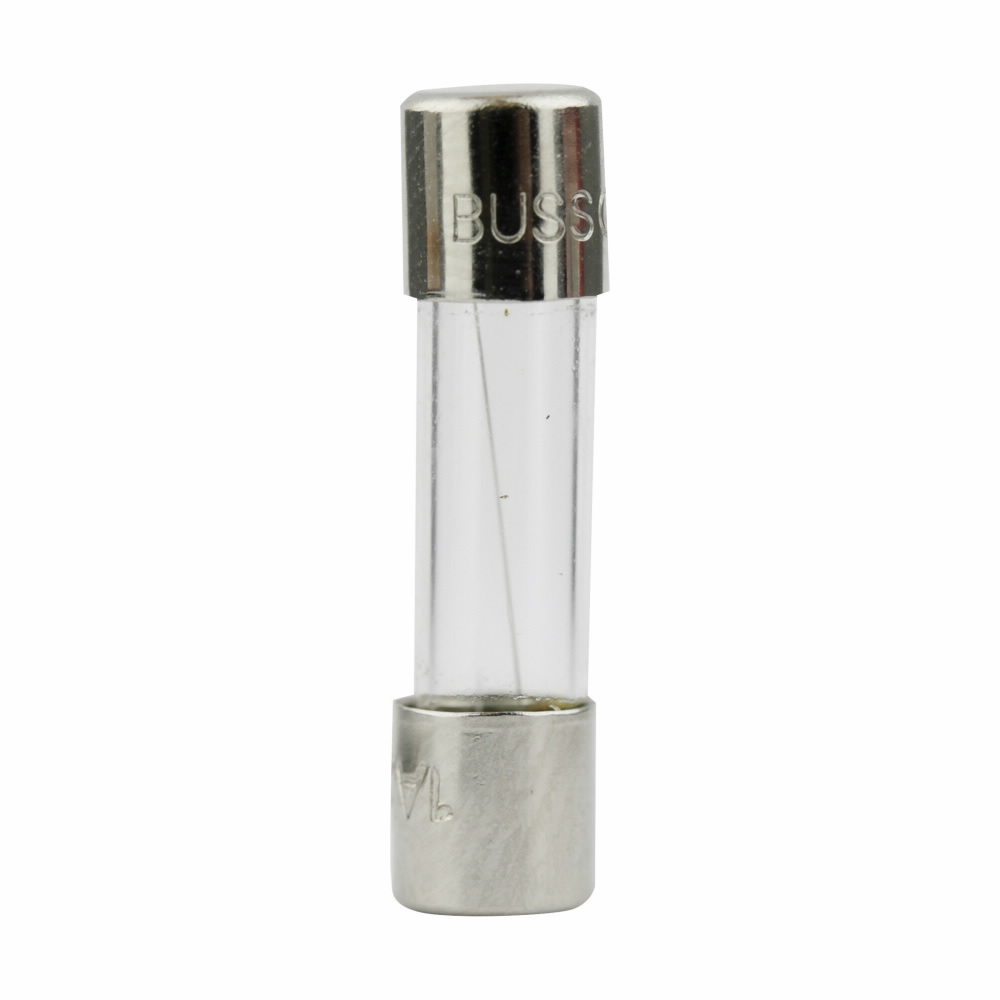

Bussmann® GDB-500MA Bussmann® SMALL DIMENSION
Custom_Product_Images_Illustration
Bussmann
Bussmann® GDB-500MA Bussmann® SMALL DIMENSION
SKU60903
MFGR #GDB-500MA
Your Cost: $6.15/ea
List: World?s leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry?s first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. . . Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
World?s leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry?s first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. . . Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
Alternate Catalog Number GDB-500MA Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 5.2 mm Dia x 20 mm H Buy American Compliant C Catalog Number GDB-500MA Connection Ferrule end x ferrule end Country of Origin CN Currency USD Element Single EU RoHS Indicator C Frequency Rating 50 HTZ Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100020 Height 6.89 in Height [Metric] 17.5001 cm Indicating|Non~Indicating Non-Indicating Length 10.43 in Length [Metric] 26.5001 cm Material Glass tubeNickel-plated brass end cap construction Mounting Type Clip/Holder Rejection|Non~Rejection Non-Rejection Response Time 60 min, 30 min, 300 ms, 50 ms, 20 ms, 10 ms, 2 s Series GDB Size 5.20 mm Diameter X 20.00 mm Height Standard VDE,CE Marked,CCC Marked,RoHS Compliant Standards ARRA CompliantBuy American Act CompliantRoHS 2002/95/ECUL Guide JDYX2, File No. E19180 RecognizedVDE File No. 40014109IEC 60127-2cULus RecognizedCSA CertifiedSEMKO CertifiedBSI CertifiedIMQ CertifiedCCC Certified Sub Brand Bussmann Series Terminal Type Ferrule Type Fast-acting fuse UNSPSC 39121607 UPC 11 05171243173 UPC 12 051712431736 Width 6.69 in Width [Metric] 17.0000 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 0.500A mA Body Type Cylindrical Interrupt Rating 35 AIC at 250 Vac A Voltage Rating 250 Vac or less, 32 Vdc (self certified) VAC Ind Facilities & Factories - Facility: Safety and Security Systems Low Breaking Capacity, Interrupt Rating 35 Amp at 250 V, Material Glass Tube, Nickel Plated Brass Endcap Fast acting for maximum protection Low breaking capacity 60 min minimum at 1.5 In, 30 min maximum at 2.1 In, 50 ms minimum and 2 s maximum at 2.75 In, 10 ms minimum and 300 ms maximum at 4 In, 20 ms maximum at 10 In response time 35 A at 250 VAC interrupt rating Small Dimension fuse Without axial leads
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | GDB-500MA |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 5.2 mm Dia x 20 mm H |
| Buy American Compliant | C |
| Catalog Number | GDB-500MA |
| Connection | Ferrule end x ferrule end |
| Country of Origin | CN |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | C |
| Frequency Rating | 50 HTZ |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100020 |
| Height | 6.89 in |
| Height [Metric] | 17.5001 cm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 10.43 in |
| Length [Metric] | 26.5001 cm |
| Material | Glass tubeNickel-plated brass end cap construction |
| Mounting Type | Clip/Holder |
| Rejection|Non~Rejection | Non-Rejection |
| Response Time | 60 min, 30 min, 300 ms, 50 ms, 20 ms, 10 ms, 2 s |
| Series | GDB |
| Size | 5.20 mm Diameter X 20.00 mm Height |
| Standard | VDE,CE Marked,CCC Marked,RoHS Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS 2002/95/ECUL Guide JDYX2, File No. E19180 RecognizedVDE File No. 40014109IEC 60127-2cULus RecognizedCSA CertifiedSEMKO CertifiedBSI CertifiedIMQ CertifiedCCC Certified |
| Sub Brand | Bussmann Series |
| Terminal Type | Ferrule |
| Type | Fast-acting fuse |
| UNSPSC | 39121607 |
| UPC 11 | 05171243173 |
| UPC 12 | 051712431736 |
| Width | 6.69 in |
| Width [Metric] | 17.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 0.500A mA |
| Body Type | Cylindrical |
| Interrupt Rating | 35 AIC at 250 Vac A |
| Voltage Rating | 250 Vac or less, 32 Vdc (self certified) VAC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Low Breaking Capacity, Interrupt Rating 35 Amp at 250 V, Material Glass Tube, Nickel Plated Brass Endcap |
| Fast acting for maximum protection |
| Low breaking capacity |
| 60 min minimum at 1.5 In, 30 min maximum at 2.1 In, 50 ms minimum and 2 s maximum at 2.75 In, 10 ms minimum and 300 ms maximum at 4 In, 20 ms maximum at 10 In response time |
| 35 A at 250 VAC interrupt rating |
| Small Dimension fuse |
| Without axial leads |
