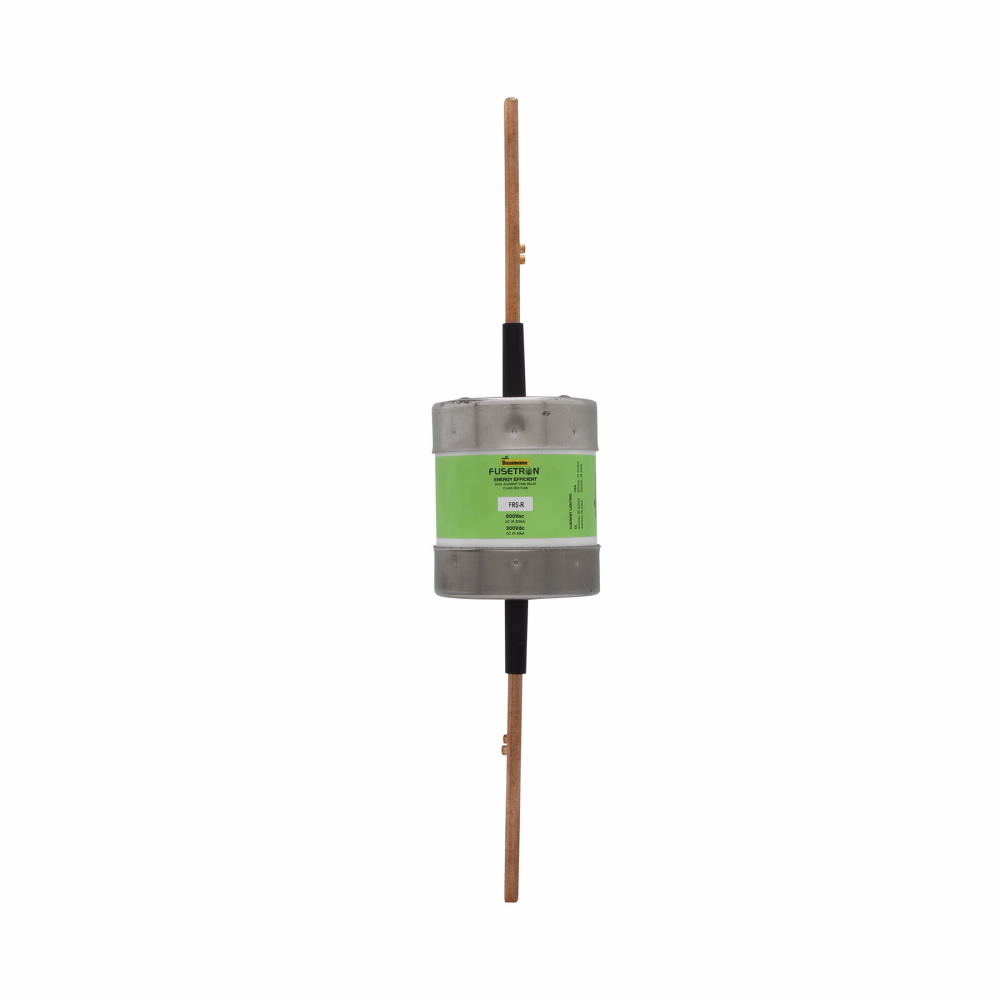

Bussmann® FRS-R-500 Fusetron™ FRS-R Current Limiting Time Delay Fuse, 500 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
Custom_Product_Images_Illustration
Bussmann® FRS-R-500 Fusetron™ FRS-R Current Limiting Time Delay Fuse, 500 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
SKU5163
MFGR #FRS-R-500
Your Cost: $430.31/ea
List: Time-delay affords the same excellent overload protection as low peak fuses of motors and other type loads and circuits having temporary inrush currents such as those caused by transformers and solenoids. (In such circuits, Limitron fuses can only provide short circuit protection). Fusetron fuses are not as Fast-Acting on short circuits as low peak fuses and therefore cannot give as high a degree of componet short circuit protection. Like the low peak fuse, Fusetron fuses permit the use of smaller size and less costly switches. Fusetron fuses fit rejection type fuse holders and can also be installed in holders for Class H fuses. They can physically and electrically replace Class H, K5, and other Class RK5 fuses.
Time-delay affords the same excellent overload protection as low peak fuses of motors and other type loads and circuits having temporary inrush currents such as those caused by transformers and solenoids. (In such circuits, Limitron fuses can only provide short circuit protection). Fusetron fuses are not as Fast-Acting on short circuits as low peak fuses and therefore cannot give as high a degree of componet short circuit protection. Like the low peak fuse, Fusetron fuses permit the use of smaller size and less costly switches. Fusetron fuses fit rejection type fuse holders and can also be installed in holders for Class H fuses. They can physically and electrically replace Class H, K5, and other Class RK5 fuses.
Alternate Catalog Number FRS-R-500 Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 2.88 in Dia x 13.38 in L Brand Bussmann Buy American Compliant C Catalog Number FRS-R-500 Class RK-5 Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 3.6000 lb Gross Weight per Pack Metric 1.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 3.10 in Height [Metric] 7.8740 cm Length 14.00 in Length [Metric] 35.5600 cm Manufacturer Eaton Material Fiberglass Mounting Type Holder Series FRS-R Standard CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedUL 248-12 File No. E4273 Guide JDDZCSA File No. 53787 C22.2 No. 248.12 Class 1422-02 Stock Status NONSTOCK Sub Brand Bussmann Series Terminal Type Knife Blade Type Fuse UNSPSC 39121606 UPC 11 05171250855 UPC 12 051712508551 Width 3.10 in Width [Metric] 7.8740 cm
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
Alternate Catalog Number | FRS-R-500 |
Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
ARRA Compliant | C |
Body Size | 2.88 in Dia x 13.38 in L |
Brand | Bussmann |
Buy American Compliant | C |
Catalog Number | FRS-R-500 |
Class | RK-5 |
Country of Origin | MX |
Currency | USD |
Element | Dual |
EU RoHS Indicator | C |
Gross Weight Per Pack | 3.6000 lb |
Gross Weight per Pack Metric | 1.63 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 8536100040 |
Height | 3.10 in |
Height [Metric] | 7.8740 cm |
Length | 14.00 in |
Length [Metric] | 35.5600 cm |
Manufacturer | Eaton |
Material | Fiberglass |
Mounting Type | Holder |
Series | FRS-R |
Standard | CE Marked |
Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedUL 248-12 File No. E4273 Guide JDDZCSA File No. 53787 C22.2 No. 248.12 Class 1422-02 |
Stock Status | NONSTOCK |
Sub Brand | Bussmann Series |
Terminal Type | Knife Blade |
Type | Fuse |
UNSPSC | 39121606 |
UPC 11 | 05171250855 |
UPC 12 | 051712508551 |
Width | 3.10 in |
Width [Metric] | 7.8740 cm |
