Bussmann

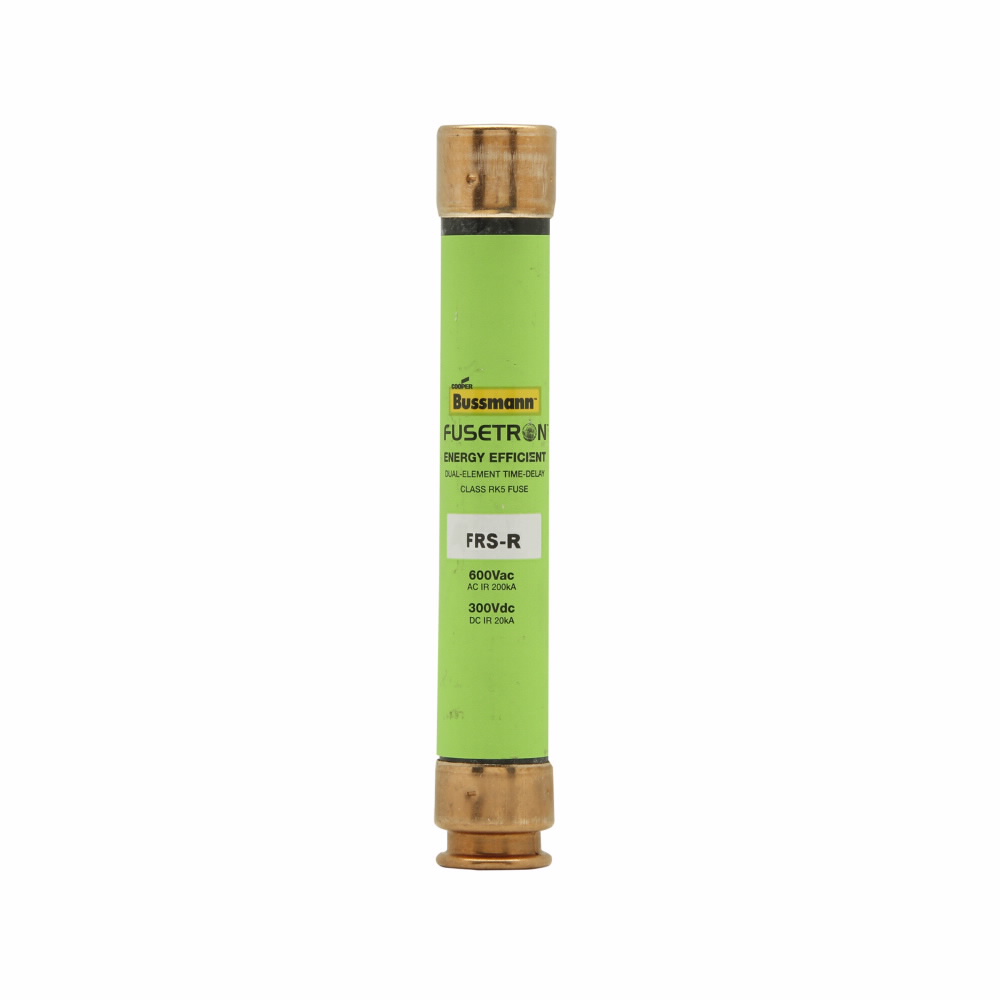

Bussmann® FRS-R-20 Fusetron™ FRS-R Current Limiting Time Delay Fuse, 20 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
Custom_Product_Images_Illustration
Bussmann
Bussmann® FRS-R-20 Fusetron™ FRS-R Current Limiting Time Delay Fuse, 20 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
SKU5141
MFGR #FRS-R-20
Your Cost: $21.32/ea
List: Time-delay affords the same excellent overload protection as low peak fuses of motors and other type loads and circuits having temporary inrush currents such as those caused by transformers and solenoids. (In such circuits, Limitron fuses can only provide short circuit protection). Fusetron fuses are not as Fast-Acting on short circuits as low peak fuses and therefore cannot give as high a degree of component short circuit protection. Like the low peak fuse, Fusetron fuses permit the use of smaller size and less costly switches. Fusetron fuses fit rejection type fuse holders and can also be installed in holders for Class H fuses. They can physically and electrically replace Class H, K5, and other Class RK5 fuses.
Time-delay affords the same excellent overload protection as low peak fuses of motors and other type loads and circuits having temporary inrush currents such as those caused by transformers and solenoids. (In such circuits, Limitron fuses can only provide short circuit protection). Fusetron fuses are not as Fast-Acting on short circuits as low peak fuses and therefore cannot give as high a degree of component short circuit protection. Like the low peak fuse, Fusetron fuses permit the use of smaller size and less costly switches. Fusetron fuses fit rejection type fuse holders and can also be installed in holders for Class H fuses. They can physically and electrically replace Class H, K5, and other Class RK5 fuses.
Alternate Catalog Number FRS-R-20 Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 0.81 in Dia x 5 in L Buy American Compliant C Catalog Number FRS-R-20 Connection Ferrule end x ferrule end Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 0.2450 lb Gross Weight per Pack Metric 0.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 5.00 in Height [Metric] 12.7000 cm Length 9.63 in Length [Metric] 24.4602 cm Material Fiberglass Mounting Type Holder Response Time 10 S at 500% Series FRS-R Size 0.81 In Diameter X 5.00 In Length Standard CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-12 Class RK5 Guide JDDZ File No. E4273CSA C22.2 No. 248.12Class 1422-02 File No. 53787CE Certified Sub Brand Bussmann Series Terminal Type Ferrule Type Fuse UNSPSC 39121606 UPC 11 05171250832 UPC 12 051712508322 Width 1.61 In Width [Metric] 4.0894 cm Stock Status NORMALLY STOCKED Brand Bussmann Manufacturer Eaton Amperage Rating 20 A Class RK-5 Interrupt Rating 200 kAIC at 600 Vac20 kAIC at 300 Vdc Voltage Rating 600//300 VAC//VDC Ind Facilities & Factories - Facility: Safety and Security Systems Renewable Without open fuse indication Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection Offers a 10 sec time delay at 5 times the rated current The time-delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses Provides current limitation to help protect downstream components from high fault currents Gives motor running back-up protection to motors without extra costs Simplifies and improves black out prevention, offers a 10-sec time-delay at 5 times the rated current Low voltage Time-delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses, considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves Provides current limitation to help protect downstream components from high fault currents, gives motor running back-up protection to motors without extra cost
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | FRS-R-20 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 0.81 in Dia x 5 in L |
| Buy American Compliant | C |
| Catalog Number | FRS-R-20 |
| Connection | Ferrule end x ferrule end |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.2450 lb |
| Gross Weight per Pack Metric | 0.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Length | 9.63 in |
| Length [Metric] | 24.4602 cm |
| Material | Fiberglass |
| Mounting Type | Holder |
| Response Time | 10 S at 500% |
| Series | FRS-R |
| Size | 0.81 In Diameter X 5.00 In Length |
| Standard | CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 248-12 Class RK5 Guide JDDZ File No. E4273CSA C22.2 No. 248.12Class 1422-02 File No. 53787CE Certified |
| Sub Brand | Bussmann Series |
| Terminal Type | Ferrule |
| Type | Fuse |
| UNSPSC | 39121606 |
| UPC 11 | 05171250832 |
| UPC 12 | 051712508322 |
| Width | 1.61 In |
| Width [Metric] | 4.0894 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 20 A |
| Class | RK-5 |
| Interrupt Rating | 200 kAIC at 600 Vac20 kAIC at 300 Vdc |
| Voltage Rating | 600//300 VAC//VDC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Renewable |
| Without open fuse indication |
| Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection |
| Offers a 10 sec time delay at 5 times the rated current |
| The time-delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses |
| Provides current limitation to help protect downstream components from high fault currents |
| Gives motor running back-up protection to motors without extra costs |
| Simplifies and improves black out prevention, offers a 10-sec time-delay at 5 times the rated current |
| Low voltage |
| Time-delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses, considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves |
| Provides current limitation to help protect downstream components from high fault currents, gives motor running back-up protection to motors without extra cost |
